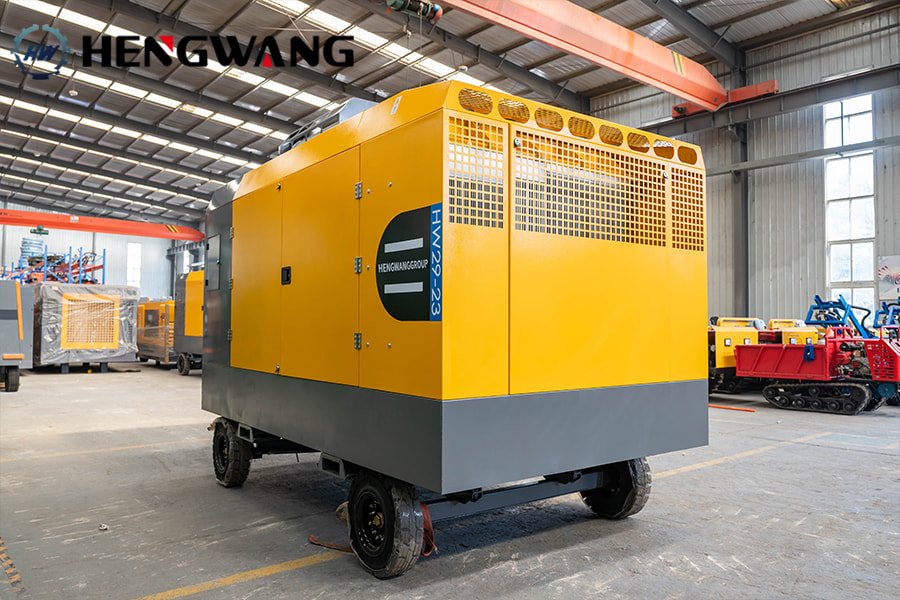

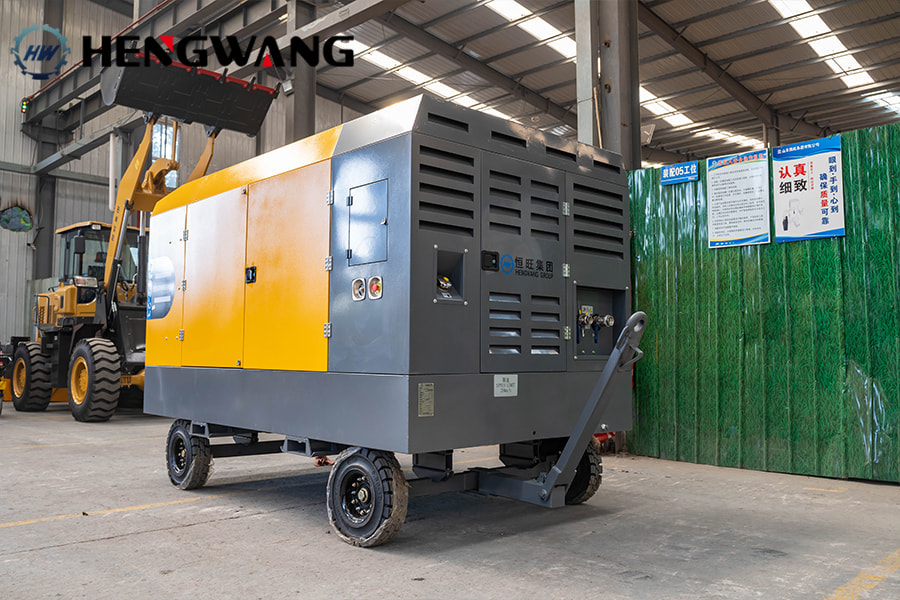

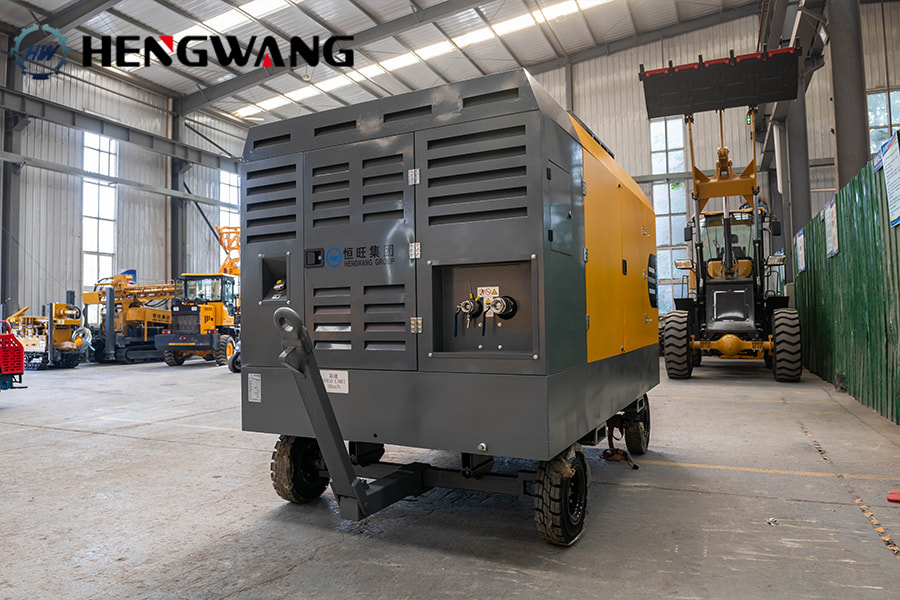

HW-29/23G Screw Air Compressor

  • Factory direct
  • One-year warranty
exhaust volume:29 m3/min
Exhaust pressure:23 bar
Drive mode:Diesel engine driven
Product Detail


1.It fully realizes "Convex-Convex" engagement to assist in the formation of hydrodynamic lubrication film, to reduce horizontal leakage passing the contact zone, and to improve efficiency of the compressor; improve rotor processing and testing property.

2. It adopts the design thought of "large rotor, large bearing and low speed method", thus its revolving speed is 30-50% lower than that of other brands to reduce noise, vibration, and exhaust temperature, improve rotor rigidity, increase service life, and reduce sensibility to sundries and oil carbide.

3. Its power range is 4~355KW, where 18.5~250KW applies to the compressor without direct-coupled gearbox, 200KW and 250KW apply to the compressor with Level 4 direct-coupled motor and the speed is as low as 1480 rmp.

4. It fully conforms to and exceeds requirements in GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation of Displacement Air Compressors.


compressorType

Screw type two-stage compression oil-cooled type

Displacementm3/mi n29
Exhaust pressurebar23
Drive mode
Diesel engine driven
Oil and gas filling capacityL160
Volume flow m³/minL32
air filter
Fleetguard
Machine nose
Bowes
diesel enginemanufacturer
xichai
model
CA6DL2-35G31-YM10
Rated speed/full load/no loadrpm1900/1450
rated powerKW258
Oil capacityL90
Fuel tank capacity ML350
air filter
Fleetguard
size and weightlongmm3100
Widthmm1900
highmm1950
Net WeightKg2600
outlet exhaust valve
G1 1/2"/G1 "
