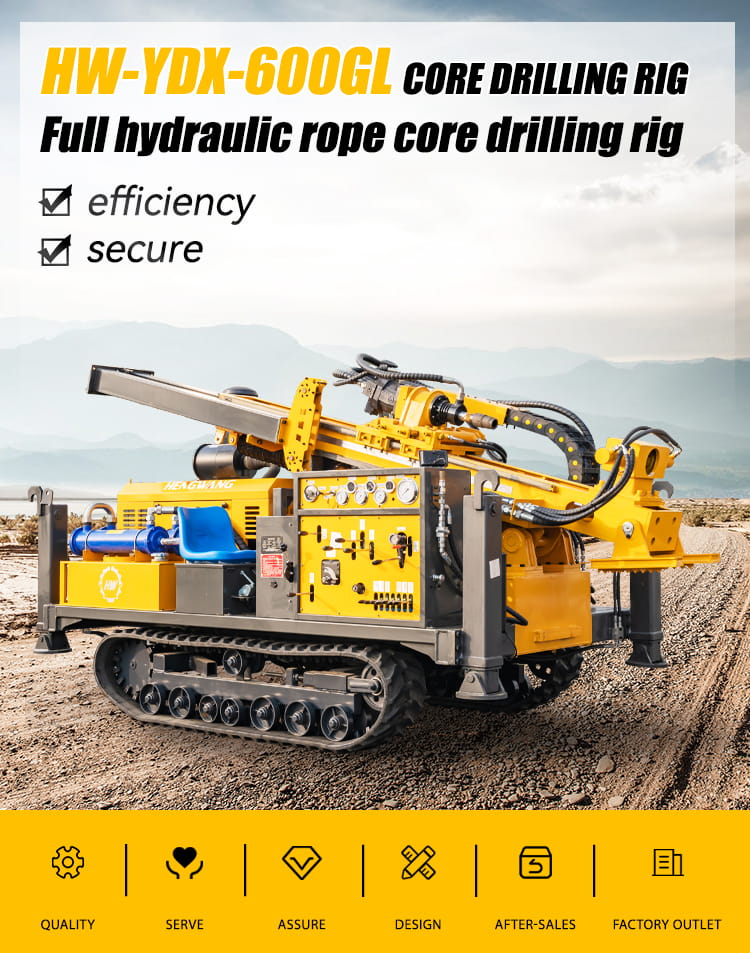

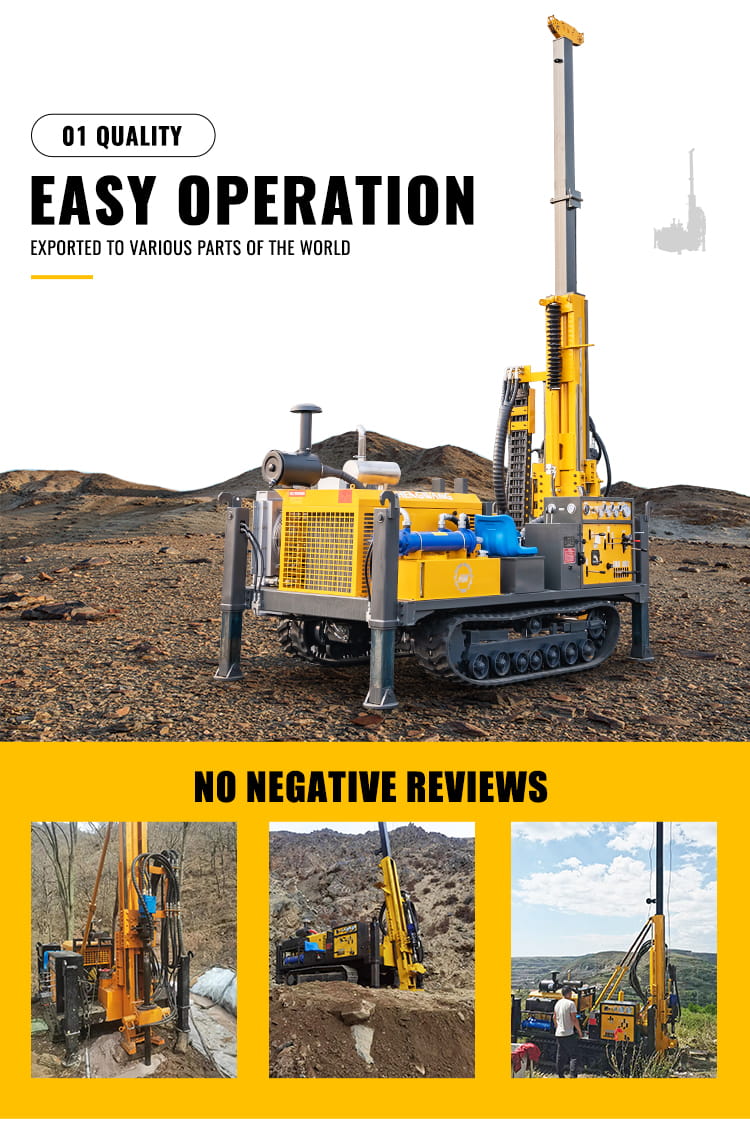

Unleash the full potential of your drilling projects with the HW-600XL/GL Fully Hydraulic Wireline Core Drilling Rig. Engineered for
high-performance and precision, this advanced rig excels in core drilling operations, delivering unmatched efficiency and accuracy.
The HW-600XL/GL’s fully hydraulic system provides superior control and power, allowing you to penetrate the toughest terrains with
ease. Its wireline core retrieval system ensures quicker and safer core recovery, maximizing productivity while minimizing downtime.
Designed with a robust frame and user-friendly interface, this rig is built to withstand the most demanding conditions, ensuring reliability
and durability in every project. Elevate your drilling operations with the HW-600XL/GL—where innovation meets unparalleled drilling capability.
Hengwang full hydraulic core drilling rig is ideal for:
1. Mine Drilling (Geotechnical and Environmental)
2. Rock coring
3. Shallow exploration screening and sampling
Parameter:
| model | HW-YDX-600XL |
| Drilling ability | |
| caliber | HTW-NTW-BTW |
| depth | 200-600-650(M) |
| Hydraulic system | |
| preset pressure | 21(MPA) |
| Rated flow | 192(L/min) |
| Cooling type | Air cooling + Water cooling |
| Engine | |
| Brand | Yuchai |
| Type | Turbocharged |
| Rated rotary speed | 2400(RPM) |
| Rated power | 92（KW） |

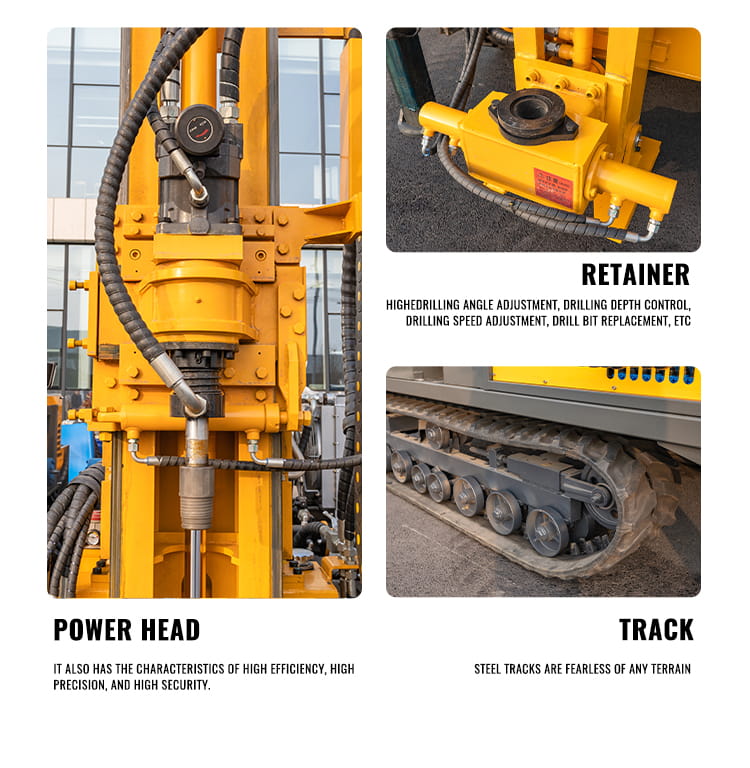

| Power head | |
| Maximum torque | 450-1000(N.M) |
| Maximum rotary speed | 1300(RPM) |
| Feeding stroke | 1900(MM) |
| Drilling tower | |
| Type | Ground contact integrated tower |
| Drilling angle | 45-90(°) |
| Lifting force | 16(T) |
| Feeding force | 8(T) |
| Winch | |
| Lifting force | 600(KG) |
| Rotary speed | 100-300(RPM) |
| Wire rope diameter | 6(MM) |
| Rope capacity | 600(M) |
| walk | |
| type | Manual + remote control |
| Walking speed | 3.5(KM/H) |
| Single machine climbing angle | 45(°) |
| hydraulic mud pump | |
| mud pump | Contains Bw-90 mud pump |
| flow | 30-90(L/min) |
| pressure | 4-7(MPA) |
| Shipping dimensions | 4000*2000*1800(MM) |
| Total Weight | 4.5/5.5(T) |
To get the latest parameters and quotations, please submit the form.
