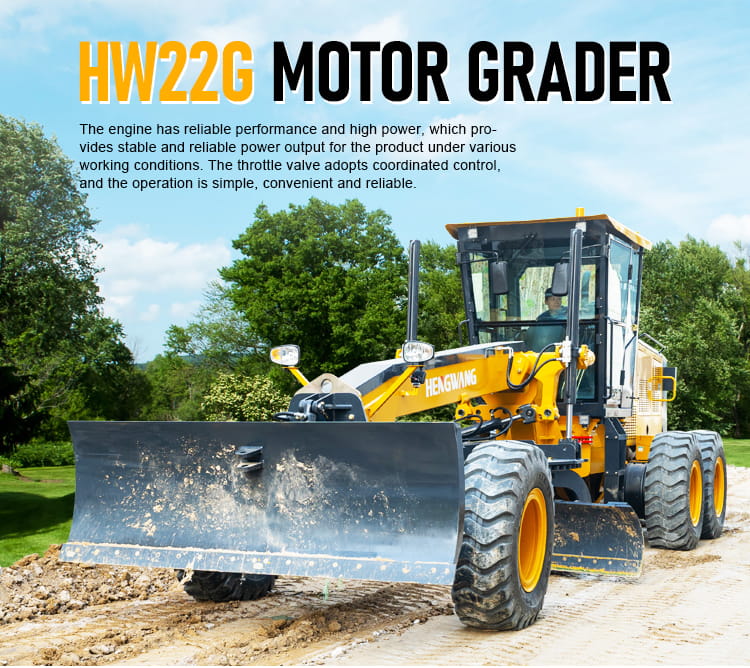

| Product name | 22G |
| Performance parameters | |
| Operating weight of machine (kg) | 17000 |
| Wheelbase (mm) | 6260 |
| Wheel tread (mm) | 1550 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (°) | ±45 |
| Articulated steering angle (°) | ±23 |
| Maximum traction force (kN) | 90 (f=0.75) |
| Turning radius (mm) | 8200 |
| Width of shovel blade (mm) | 2600 |
| Height of shovel blade (mm) | 635 |
| Blade slewing angle (º) | 360 |
| Maximum digging depth of blade (mm) | 500 |
| Engine | |
| Engine model | 6CTAA8.3-C215 |
| Type | 4-Stroke, Direct Injection, Water-Cooled |
| Rated power/rated speed (kw/rpm) | 160kW/2200rpm |
| Drive system | |
| Torque converter | Single-stage single-phase three-element |

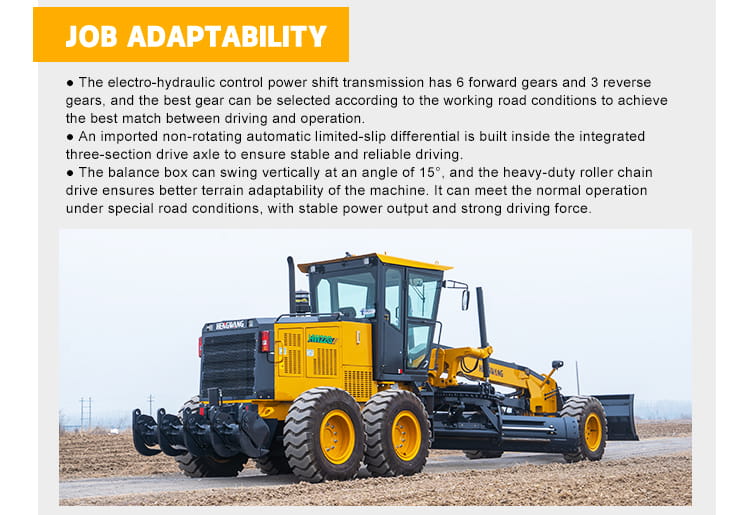

| Transmission | Fixed Shaft, Electro-Hydraulic Control |
| Gears | Six forward and three reverse |

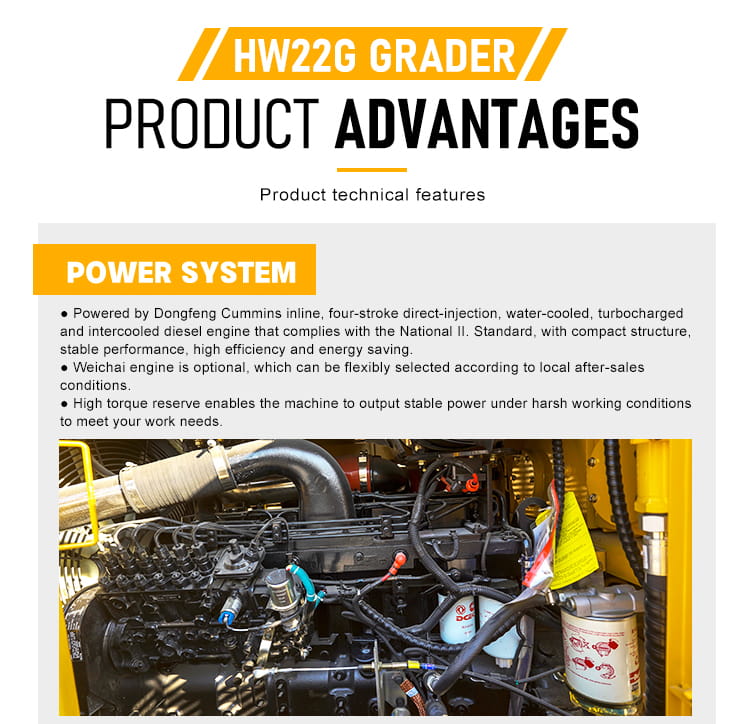

Power System
● It is equipped with the Dongfeng Cummins 6CTAA8.3-C215 diesel engine, which complies with China-II emission standards. This engine is an inline, 4-stroke, direct injection, water-cooled, turbocharged, and intercooled engine. It is renowned for its compact structure, stable performance, and high efficiency and energy-saving capabilities.
● The significant torque reserve ensures consistent power output even in demanding work conditions, meeting all your operational requirements.
