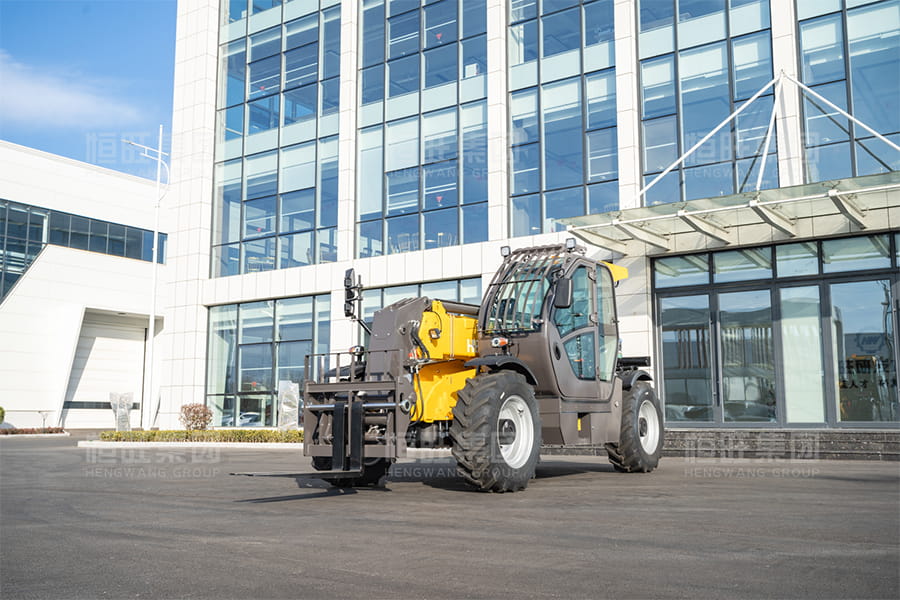

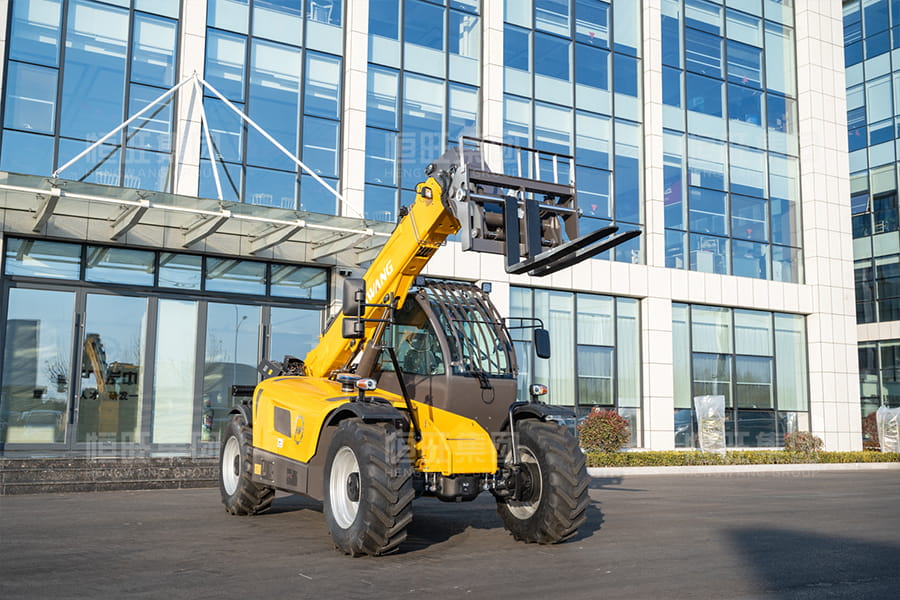

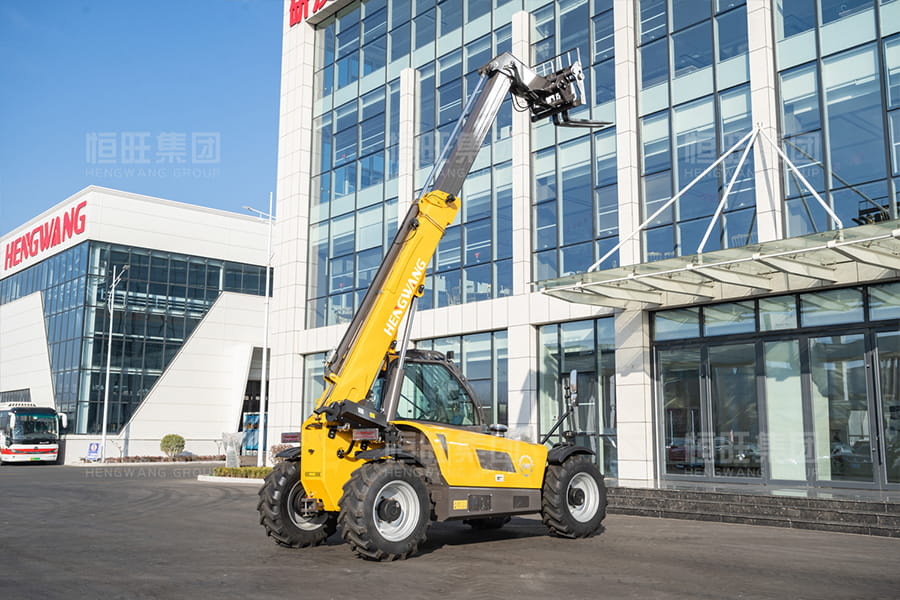

| Model | HW3507-A |
| Engine | Yuchai |
| Power | 66 kW |
| Emission Standard | China Stage III / Stage IV |
| Operating Weight | 8.1 Tons |
| Rated Load Capacity | 3.5 Tons |

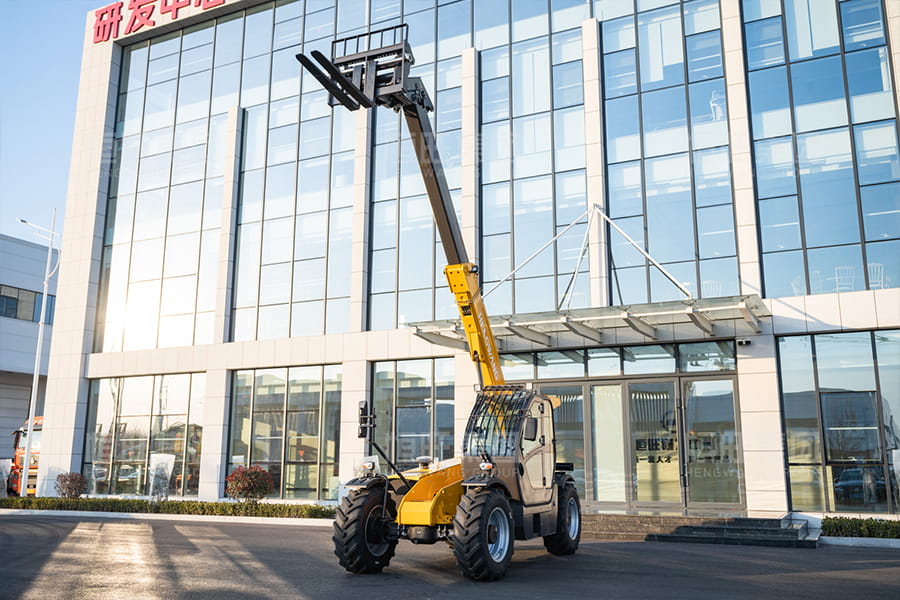

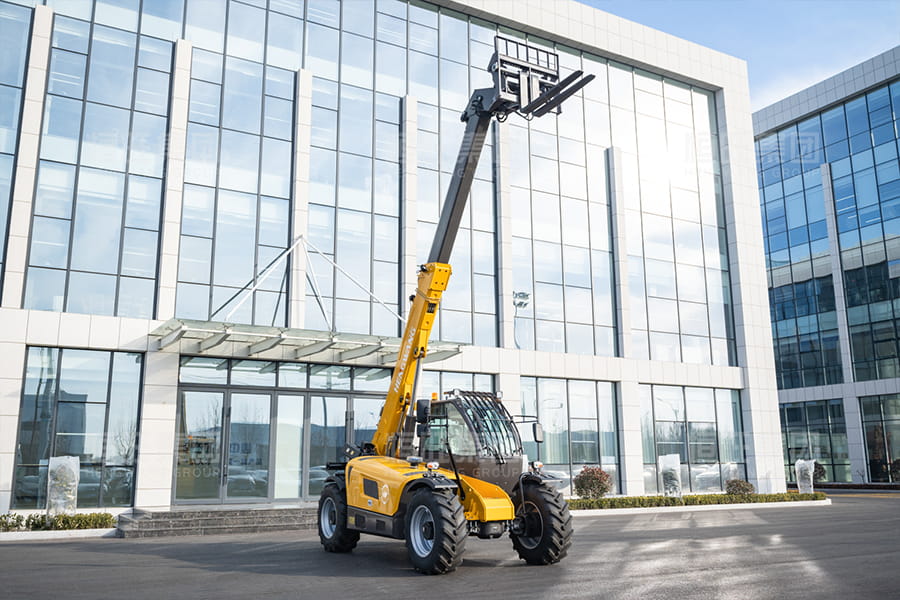

| Max. Lifting Height | 7.05 m |
| Overall Dimensions (LWH)(Including Forks) | 6220 x 2340 x 2400 mm |
| Overall Dimensions (LWH)(To Fork Face) | 4970 x 2340 x 2400 mm |
| Hydraulic Oil Capacity | 130 L |
| Fuel Tank Capacity | 120 L |
| Axles | Wet braking axles |
| Transmission | Static shifting (Optional: Power shift / Shifting while driving) |

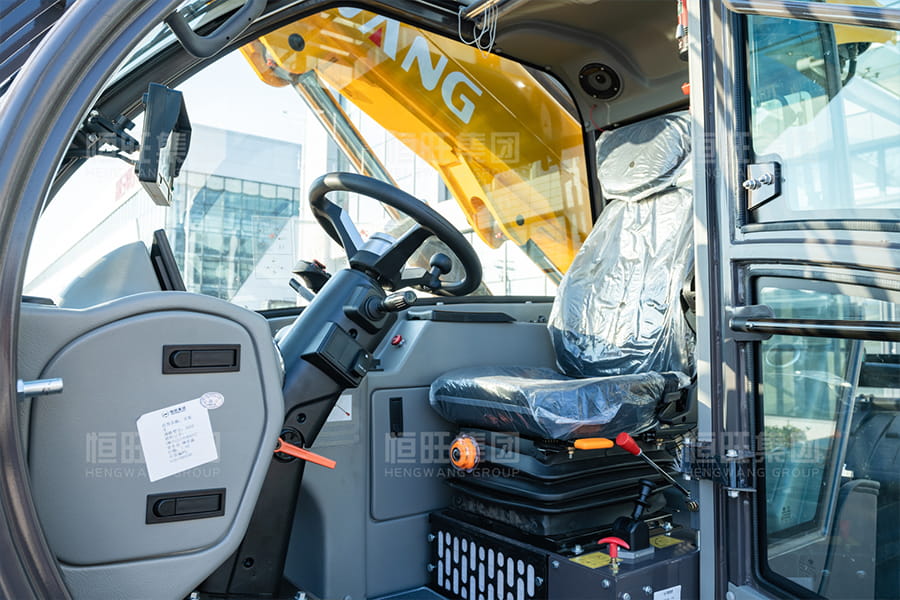

| Cabin | Luxury cabin |
| Display Screen | 10-inch (Optional: 360° panoramic camera system) |
| Hydraulic System | Rexroth / Nuoman |

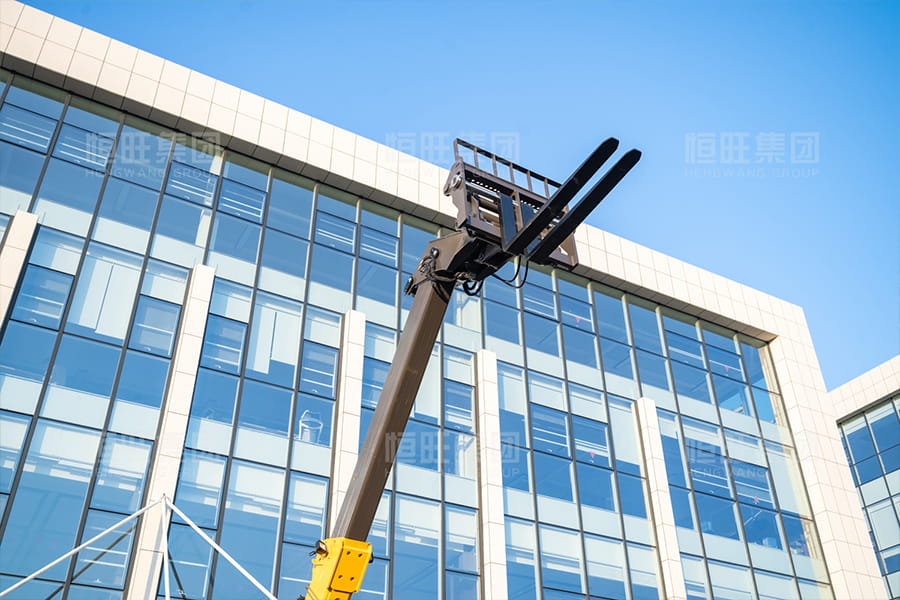

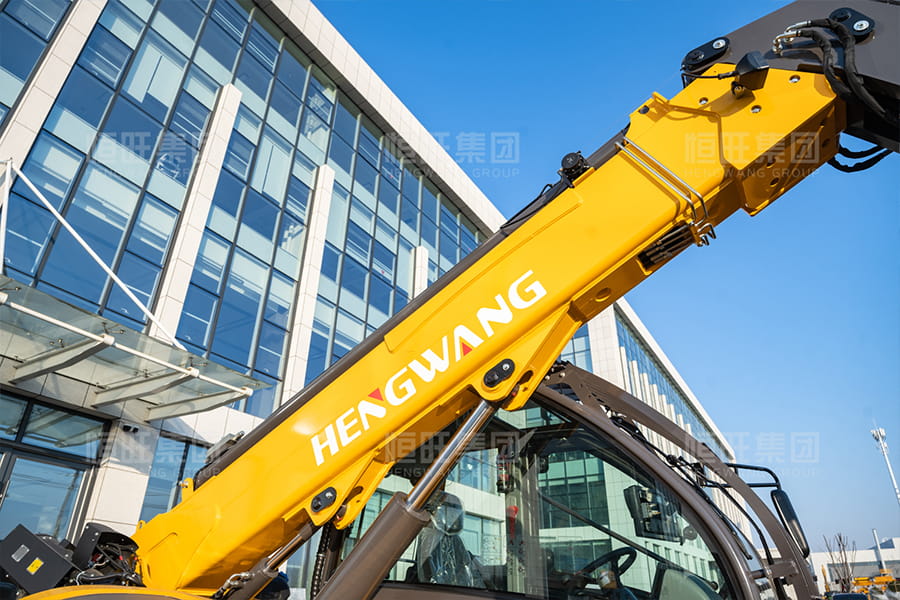

| Telescopic Boom | Hexagonal integrated bending design |
| Boom Material | High-strength structural steel |
| Frame Leveling Function | / |
| Tire Model | 400/80R24 |
| Max. Travel Speed | 31.5 km/h |
| Quick Hitch | Optional |
| Model | HW3507-B | HW3507-T |
| Engine | Yunnei YN38GBZ | Yuchai |
| Power | 76 kW | 77.3 kW |
| Emission Standard | National II (China) | National II (China) |
| Operating Weight | 7800 kg | 7750 kg |
| Rated Load Capacity | 3.5 Tons | 3.5 Tons |
| Max. Lifting Height | 7.0 m | 7.0 m |
| Dimensions (LWH) | 4650 x 2200 x 2550 mm | 4650 x 2200 x 2550 mm |
| Hydraulic Oil Capacity | 170 L | 170 L |
| Fuel Tank Capacity | 195 L | 195 L |
| Axles | Air brake axles (Dry type) | Air brake axles (Dry type) |
| Cabin | Luxury cabin | Luxury cabin |
| Transmission System | Hydraulic torque converter | Domestic hydrostatic drive |
| Drive Mode | Electronic control + Mechanical | Full electronic control |
| Gears | F4 / R4 | F2 / R2 |
| Telescopic Boom | 2-Section | 2-Section |
| Boom Material | BS1000 Special steel | BS1000 Special steel |
| Forks | 1220 mm Sliding pallet forks | 1220 mm Sliding pallet forks |
| Frame Leveling | None | None |
| Tire Model | 16/70-20 (Shuangma Brand) | 400/70R24 Tubeless (Advance Brand) |
| Max. Travel Speed | 35 km/h | 35 km/h |
| Quick Hitch | Hydraulic quick coupler | Hydraulic quick coupler |
| Hydraulic Operation | Pilot control | Electro-hydraulic load-sensing proportional system |

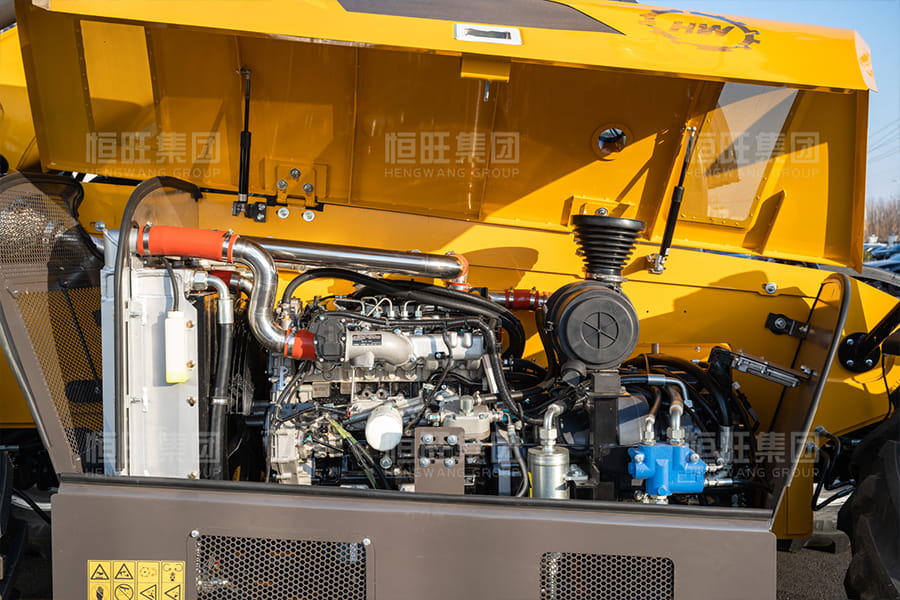

| Engine Hood | Fully-opening stamped steel | Fully-opening stamped steel |
