exhaust volume：10 m3/min
Exhaust pressure：8 bar
Drive mode：Diesel engine driven
Exhaust pressure：8 bar
Drive mode：Diesel engine driven
1. Can provide efficient gas compression, thereby improving energy utilization in industrial processes. Advanced air compressor technology also has energy-saving functions, reducing energy waste through optimized operation.

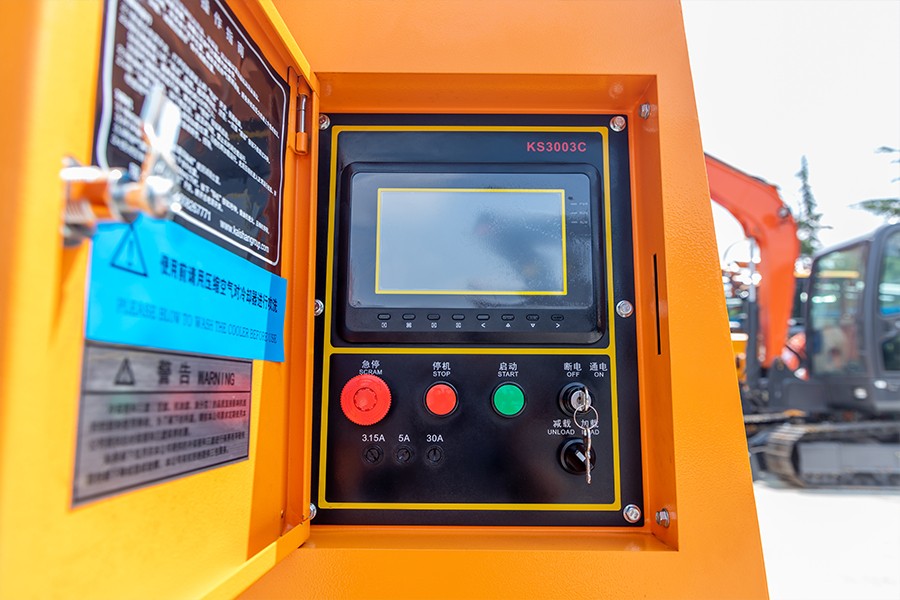

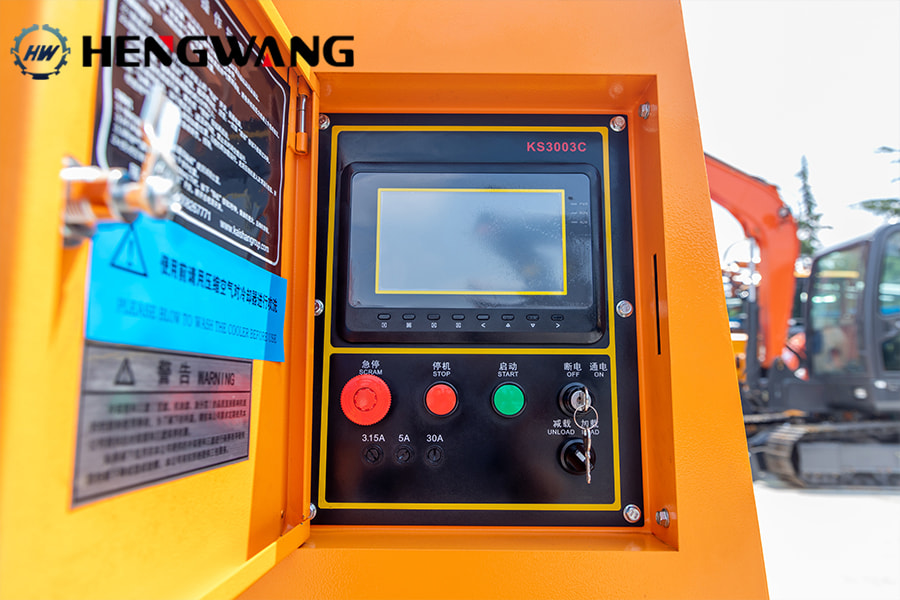

2. Maintain efficient operation over a long period of time. 1. It has automatic monitoring and maintenance functions to ensure the reliability and stability of the equipment.
3. Adopt low-noise design to improve the working environment by reducing the noise level during operation.
4. Pay attention to environmental protection and use advanced technology to reduce energy consumption and reduce environmental impact.
| compressor | Type | Screw type single stage compression oil cooling type | |
| Displacement | m3/mi n | 10 | |
| Exhaust pressure | bar | 8 | |
| Drive mode | Diesel engine driven | ||
| Oil and gas filling capacity | L | 100 | |
| Volume flow m³/min | L | 48 | |
| air filter | Fleetguard | ||
| Machine nose | Bowes | ||

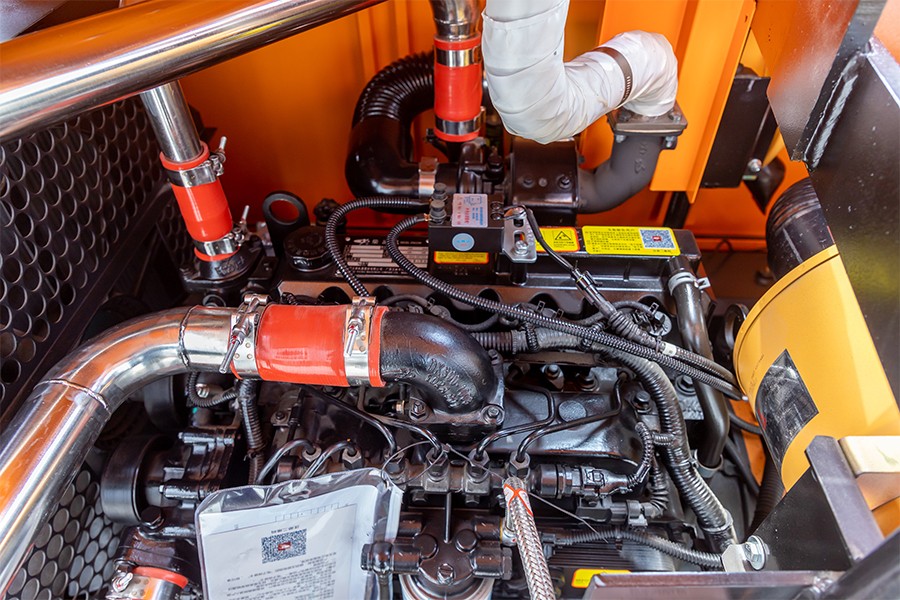

| diesel engine | manufacturer | Yuchai | |
| model | YCD4T22T-105A | ||
| Rated speed/full load/no load | rpm | 2200/1950/1350 | |
| rated power | KW | 78 | |
| Red number/red path/stroke | 4*102*118 | ||
| Displacement | L | 3.9 | |
| Cooler fluid capacity | L | 20 | |
| Oil capacity | L | 11 | |
| Fuel tank capacity M | L | 90 | |
| air filter | Fleetguard | ||
| coupling | for marine use | ||
| size and weight | long | mm | 1900 |
| Width | mm | 1306 | |
| high | mm | 1552 | |
| Net Weight | Kg | 1700 | |
| outlet exhaust valve | G1 l/2/Gl" |
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
