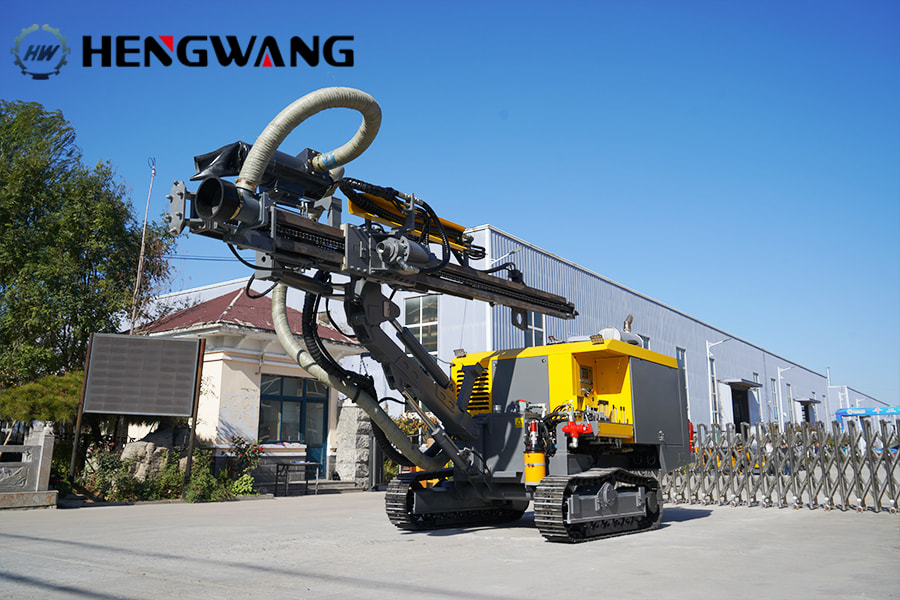

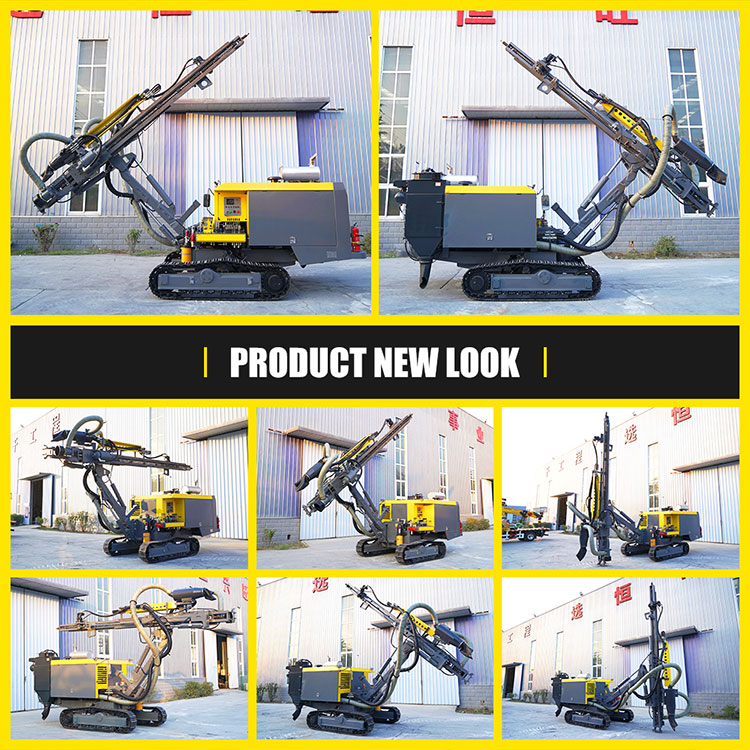

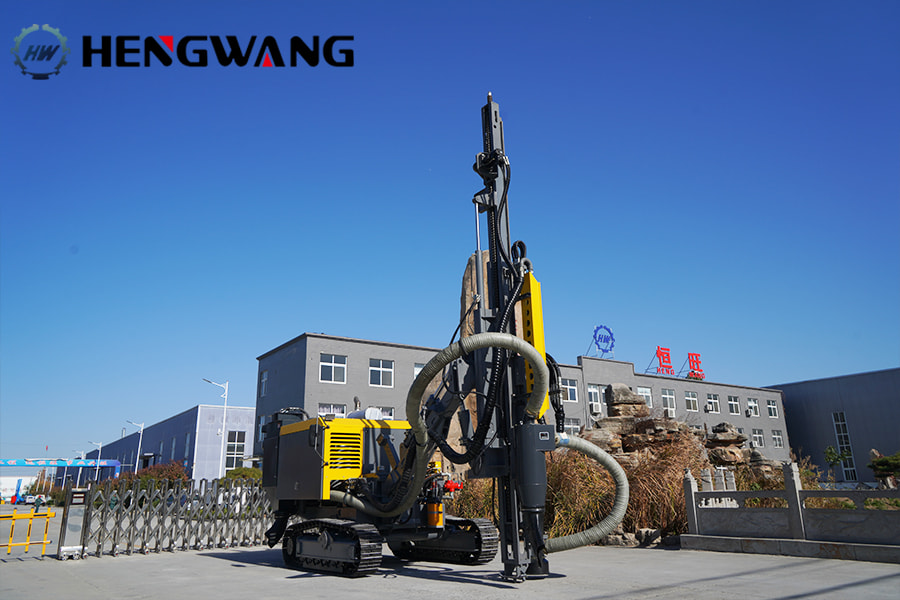

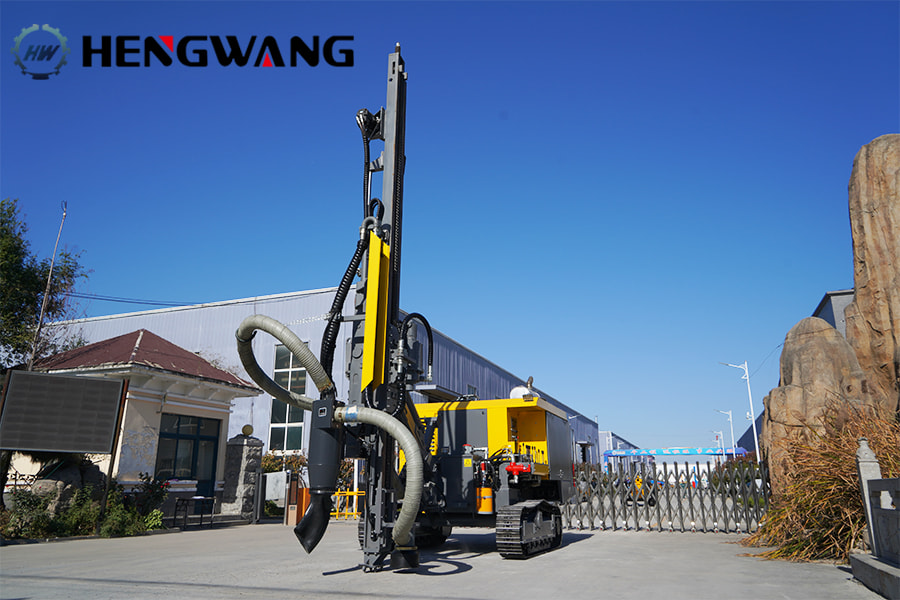

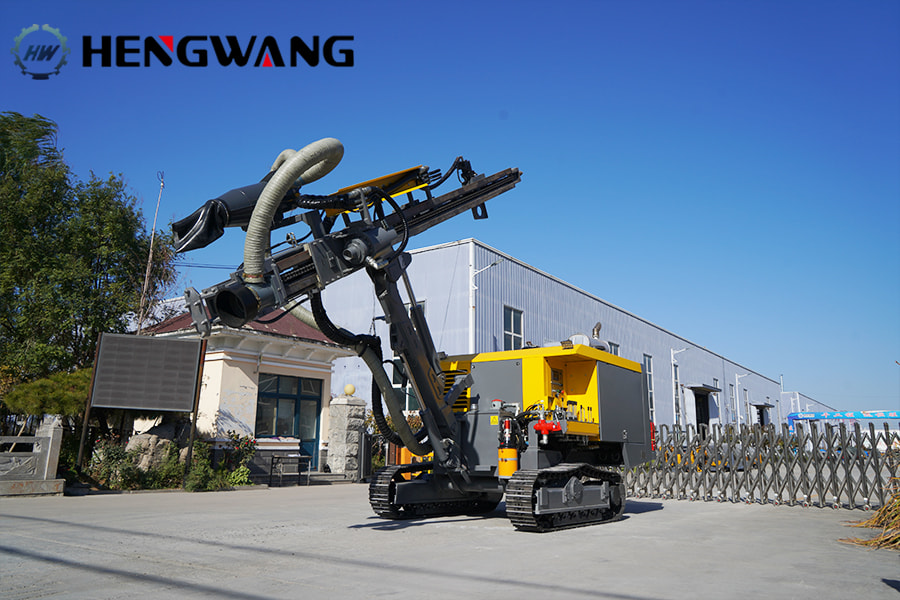

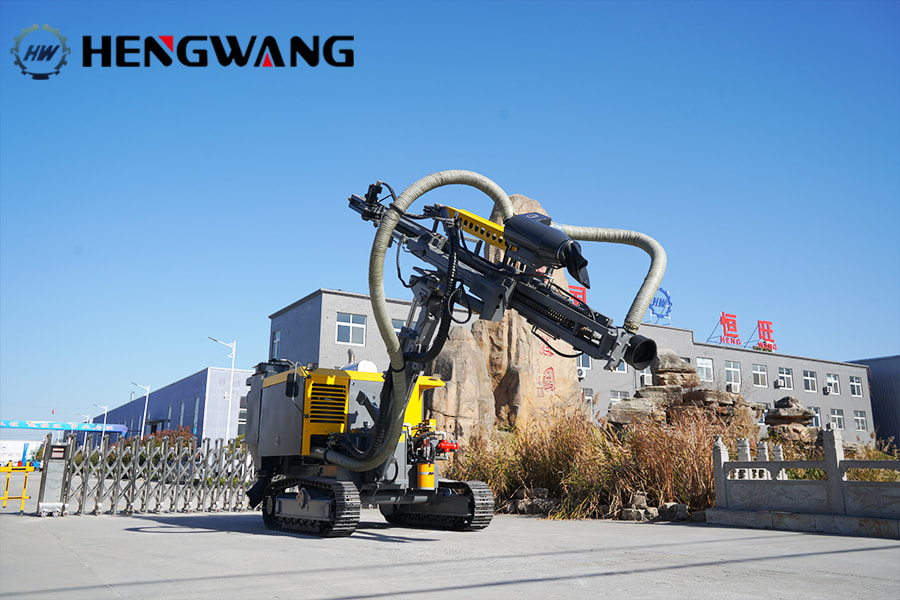

HW936 Integrated DTH Surface Drill Rig

  • Factory direct
  • One-year warranty
Rated Power: 162 kW
Drilling diameter (mm):φ90-115
Drill pipe type (mm):φ76*3000
Product Detail

Crazy Engineering Day discounts, submit the form to receive discounts on orders.




modelHW936
engineCummins QSB5.9-220 (National III)
power(KW)162
Drill pipe type(mm)φ76*3000
Drilling diameter(mm)φ90-115
Maximum working torque(N.m)2700
Swing speed(rpm)70-150
Propulsion(kN)15
Lifting power(kN)25
Propulsion methodMotor + chain
Leveling angle±10°
Walking speed(km/h)1.5-3
Gradeability30°
gross weight(kg)9400
Shipping dimensions(mm)8000*2300*2600
Dust collection method
exhaust volumeDisplacement 16m³/min. Pressure 16bar
Power Head





Thank you for providing the updated information about the DTH drilling rig.


Main feature:

1. The HW936 model is specifically designed for drilling blast holes with a diameter range of 90-115mm, which aligns with the mentioned specifications.

2. The rig is equipped with a dry dust collector, which helps in minimizing environmental pollution. It also features a drill pipe changer, allowing for

efficient and convenient pipe replacement during drilling operations. The rig incorporates advanced design and layout for enhanced performance.

3. The HW-936 model, purpose-built for hard strata conditions, is a suitable choice for metal, limestone, dolomite, and aggregate open cast quarries and mines.
