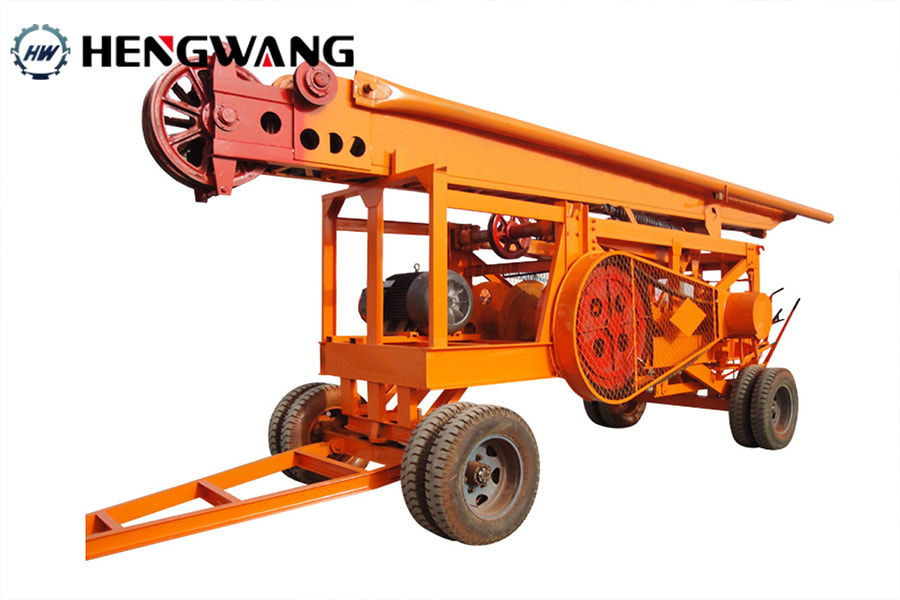

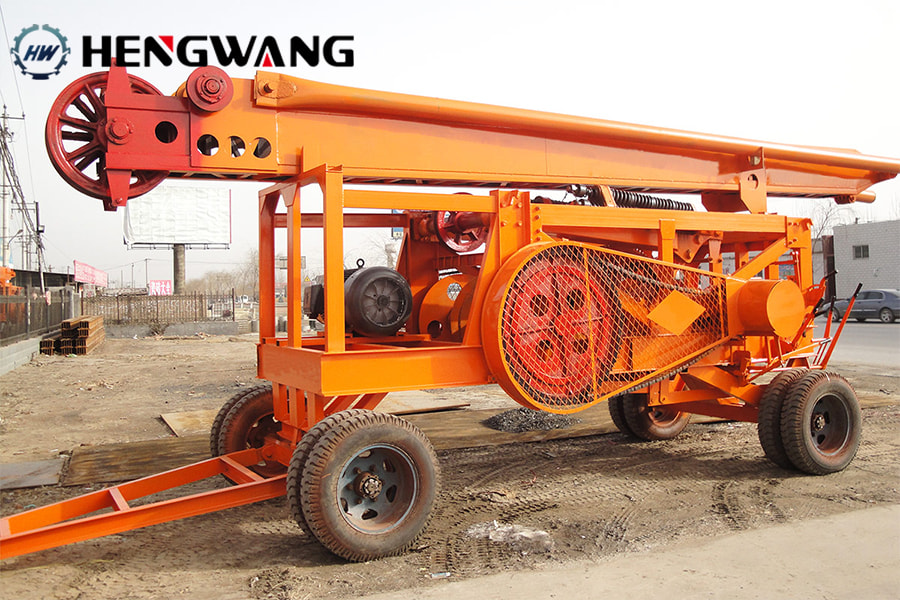

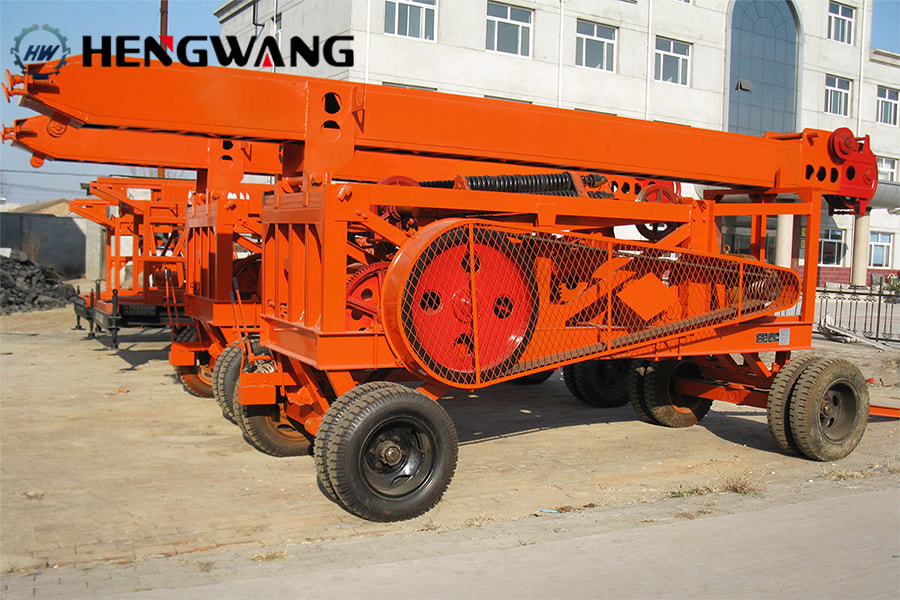

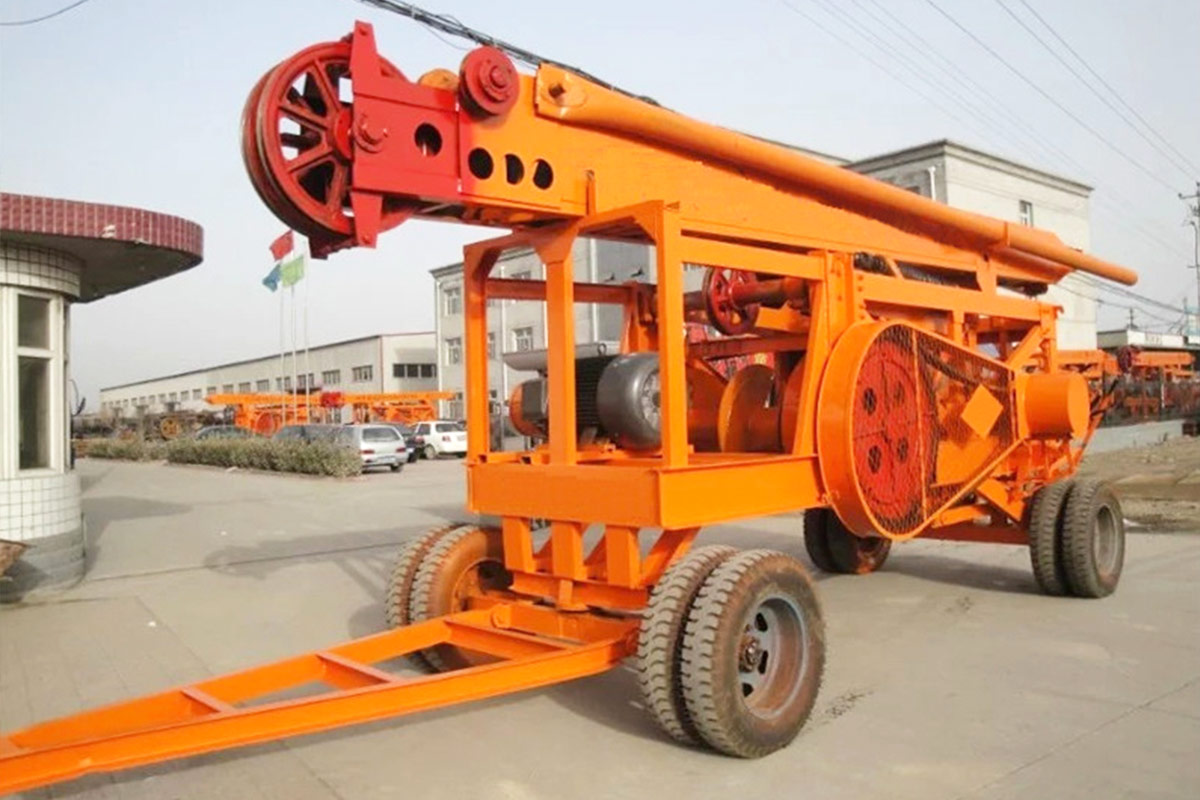

HW-90 Percussion Drilling Rig

  • Factory direct
  • One-year warranty
Drill Diameter: 400-2500MM
Drilling Depth: 70M-300M
Rated Power: 75KW
Product Detail

The anchoring rig is primarily utilized for landslide and dangerous rock mass anchoring projects, playing a crucial role in the prevention and control of various geological disasters in hydropower stations, railways, and highway slopes. It is especially well-suited for high slope rock mass anchoring projects. Additionally, it is suitable for construction projects involving urban deep foundation pit support, anti-floating bolt and foundation grouting reinforcement engineering holes, blasting holes for blasting engineering, high-pressure jetting piles, tunnel pipe shed support holes, and more.

The anchoring rig proves to be a versatile and valuable tool in various construction scenarios, particularly for addressing geological hazards and reinforcing structures. Its wide range of applications makes it an essential equipment choice for projects involving hydropower stations, railways, highways, and urban construction.



HW-90
Drill Diameter400-1500MM1500-1800MM1800-2000MM1800-2500MM
Drilling Depth150-300M100-150M80-100M70M
Lifting Force80KN
Mast Loading Capacity50T
Impact Times36-38 pieces
Mast Height8.5-12M (Standard 8.5M)
Machine Weight6500KG
Stroke500-1100CM
Engine Power75Kw
