Drilling depth:180-400-500(m)
Rated speed:2400(rpm)
Maximum torque:300-500(N·M)
Rated speed:2400(rpm)
Maximum torque:300-500(N·M)
Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon

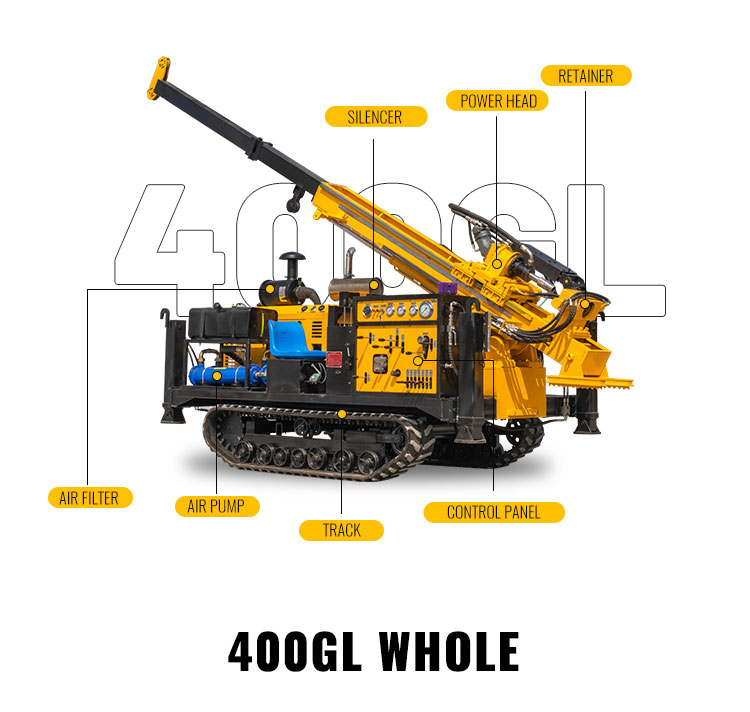

Parameter:
| model | HW-YDX-400XL |
| Drilling ability | |
| caliber | HTW-NTW-BTW |
| depth | 180-400-500(M) |
| Hydraulic system | |
| preset pressure | 21(MPA) |
| Rated flow | 168(L/min) |
| Cooling type | Air cooling + Water cooling |
| Engine | |
| Brand | Yuchai |
| Type | Turbocharged |
| Rated rotary speed | 2400(RPM) |
| Rated power | 78（KW）/70KW |

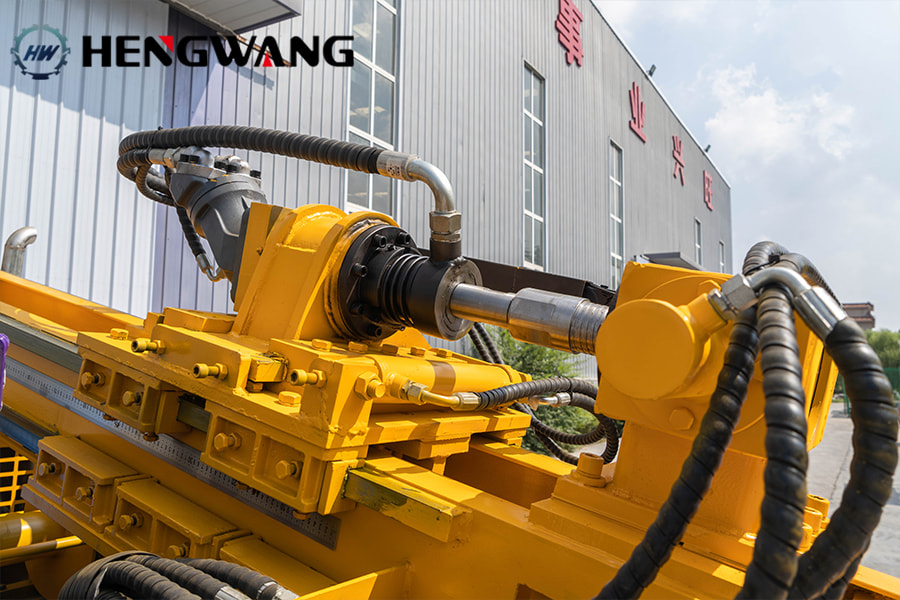

| Power head | |
| Maximum torque | 300-500(N.M) |
| Maximum rotary speed | 1300(RPM) |
| Feeding stroke | 1900(MM) |
| Drilling tower | |
| Type | Ground contact integrated tower |
| Drilling angle | 45-90(°) |
| Lifting force | 12(T) |
| Feeding force | 6(T) |
| Winch | |
| Lifting force | 500(KG) |
| Rotary speed | 100-240(RPM) |
| Wire rope diameter | 6(MM) |
| Rope capacity | 500(M) |
| walk | |
| type | Manual + remote control |
| Walking speed | 2.5(KM/H) |
| Single machine climbing angle | 45(°) |
| hydraulic mud pump | |

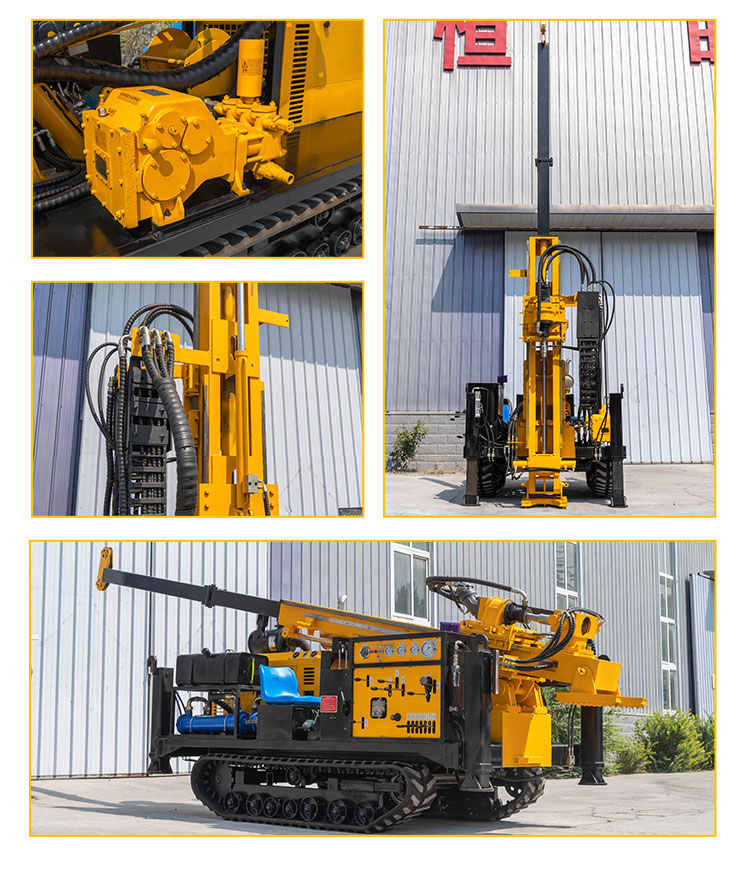

| mud pump | Contains Bw-90 mud pump |
| flow | 30-90(L/min) |
| pressure | 4-7(MPA) |
| Shipping dimensions | 4000*1900*1800(MM) |
| Total Weight | 4.3(T) |
To get the latest parameters and quotations, please submit the form.

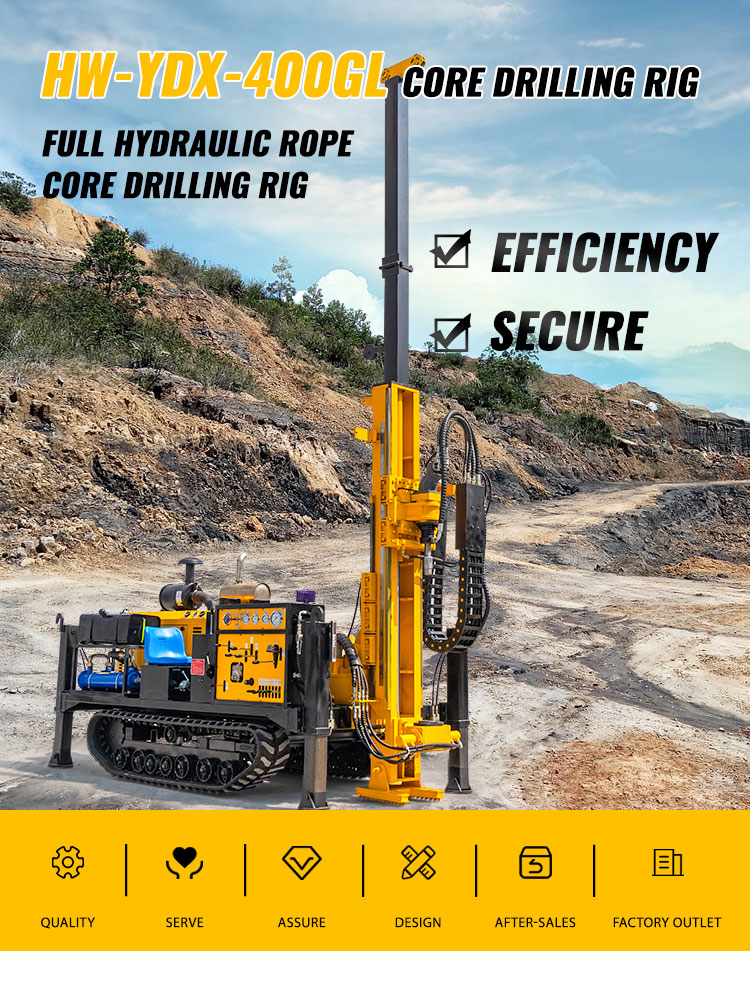

The full hydraulic rock core drilling rig is widely used and has obvious advantages.
1. Prospecting, gold ore, iron ore, coal, lithium ore, rubidium ore, stone ore, etc.
2. It is easy to install, and the rope coring process does not need to lift the drill pipe. The winch is connected to the salvage device, and the coring efficiency is high.
3. The traditional vertical shaft control machine drills and lifts the drill pipe, which has low efficiency and troublesome disassembly and assembly of the tower, which requires large equipment to be lifted and transported, and the cost is high.
4. Thin-wall drilling tools, the core diameter is 56, and the wall of the drill bit is thin.
5. Traditional drilling rig Core diameter 48 bit wall thickness.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
