Engine Power：26.4kW/2200r/min
maximum torque:2000N·m
Working Pressure：20MPa
maximum torque:2000N·m
Working Pressure：20MPa
Crazy Sale Day: Submit the form to get order discounts and coupons!

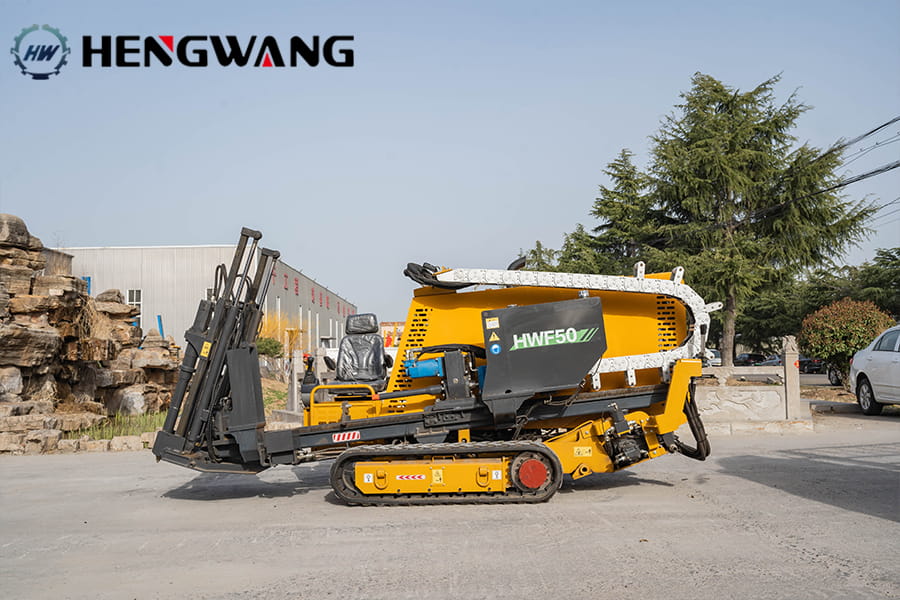

| Item | Specification |
| Overall Configuration | |
| Operating Weight | 3300kg |

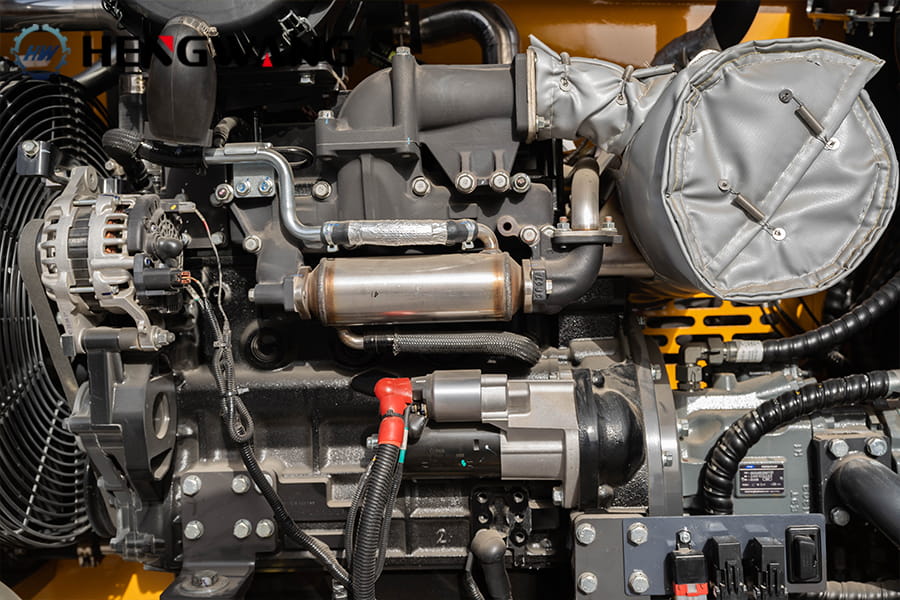

| Engine Model | Yanmar 4TNV98C-CSCTY |
| Engine Power | 26.4kW / 2200r/min |
| Fuel Tank Capacity | 72L |
| Hydraulic System | Hengli |
| Mud Pump: Displacement | 76L/min |
| Mud Pump: Maximum Load | 75L/min |
| Push-Pull Force | 50kN |
| Rotary Torque | Single motor drive |
| Hydraulic Oil Tank Capacity | 120L |
| Working Pressure | 20MPa |
| Hydraulic Pump Unit | Hengli |
| Drill Rod Box | Hydraulically adjustable |
| Drill Rod Specifications | 44 rods (Φ42mm drill rod) |
| Technical Parameters | |

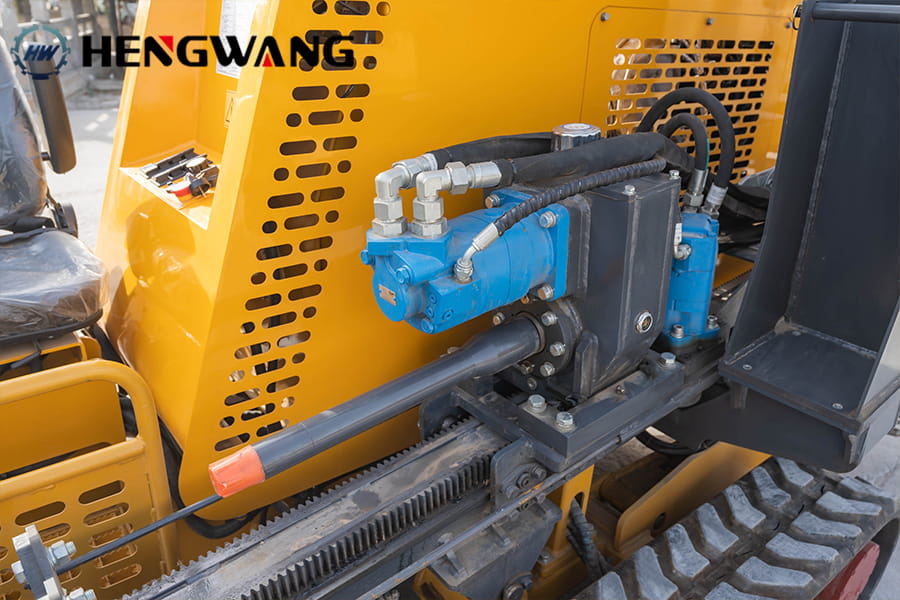

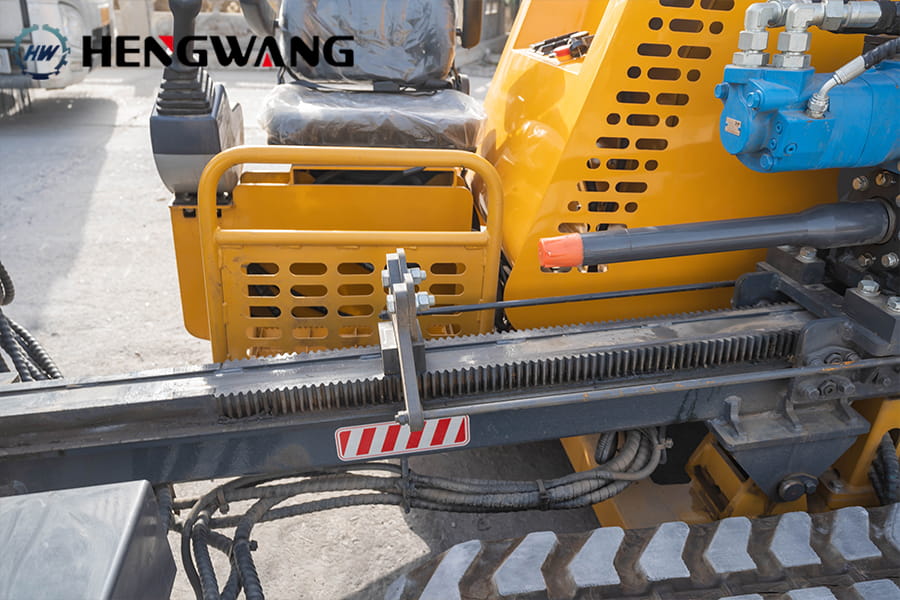

| Powerhead Push-Pull Type | Gear and rack drive |
| Powerhead Maximum Pullback/Feeding Force | 50kN / 50kN |
| Maximum Powerhead Speed | 61m/min |
| Powerhead Rotation Speed | 215r/min |
| Maximum Powerhead Torque | 2000N·m |
| Drill Rod Specifications | Φ42×1828mm |
| Machine Body | |
| Maximum Entry Angle | 16° ~ 20° |
| Crawler | Rubber crawler |
| Travel Speed | 2km/h |
| Mud Pump | |
| Maximum Flow Rate | 75L/min |
| Maximum Pressure | — |
| Reaming Hole Diameter | Φ150mm ~ Φ400mm (depending on geological conditions) |
| Maximum Construction Distance | 100m (depending on geological conditions) |

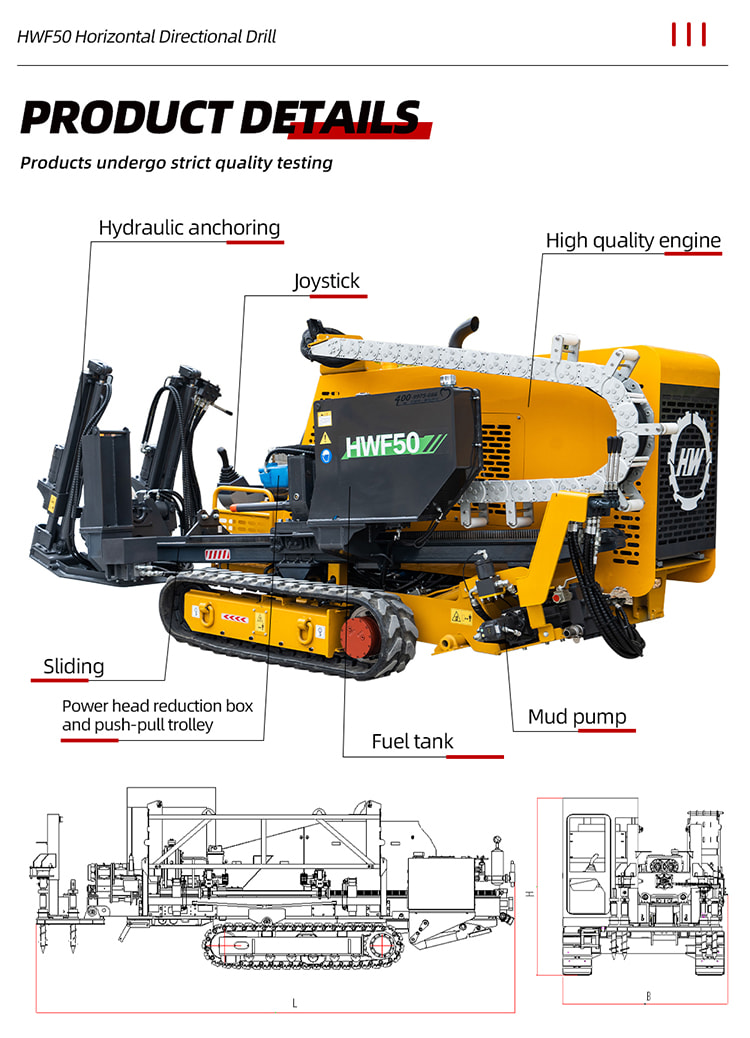

| Overall Dimensions | |
| Total Length | 3880mm |
| Total Width | 1330mm |
| Total Height | 1800mm |
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
