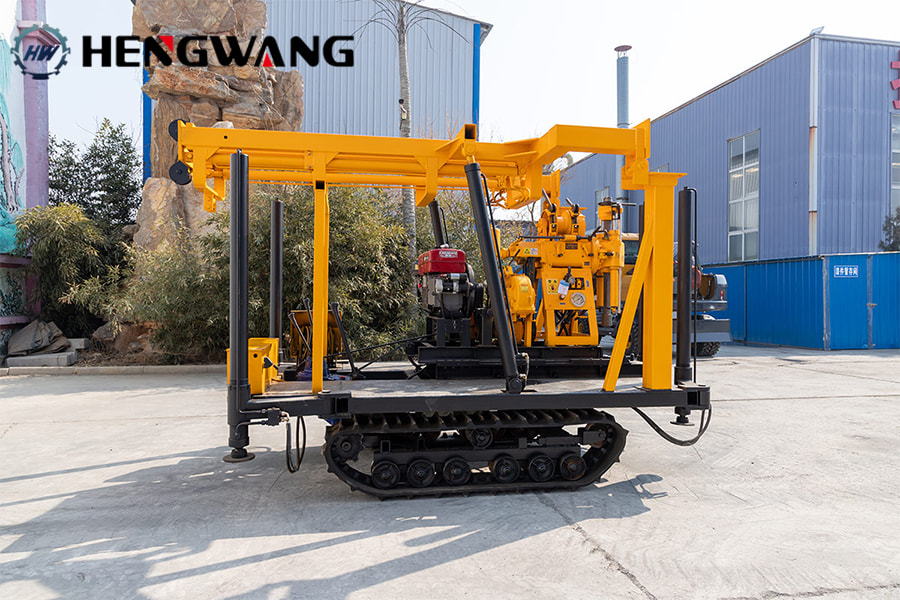

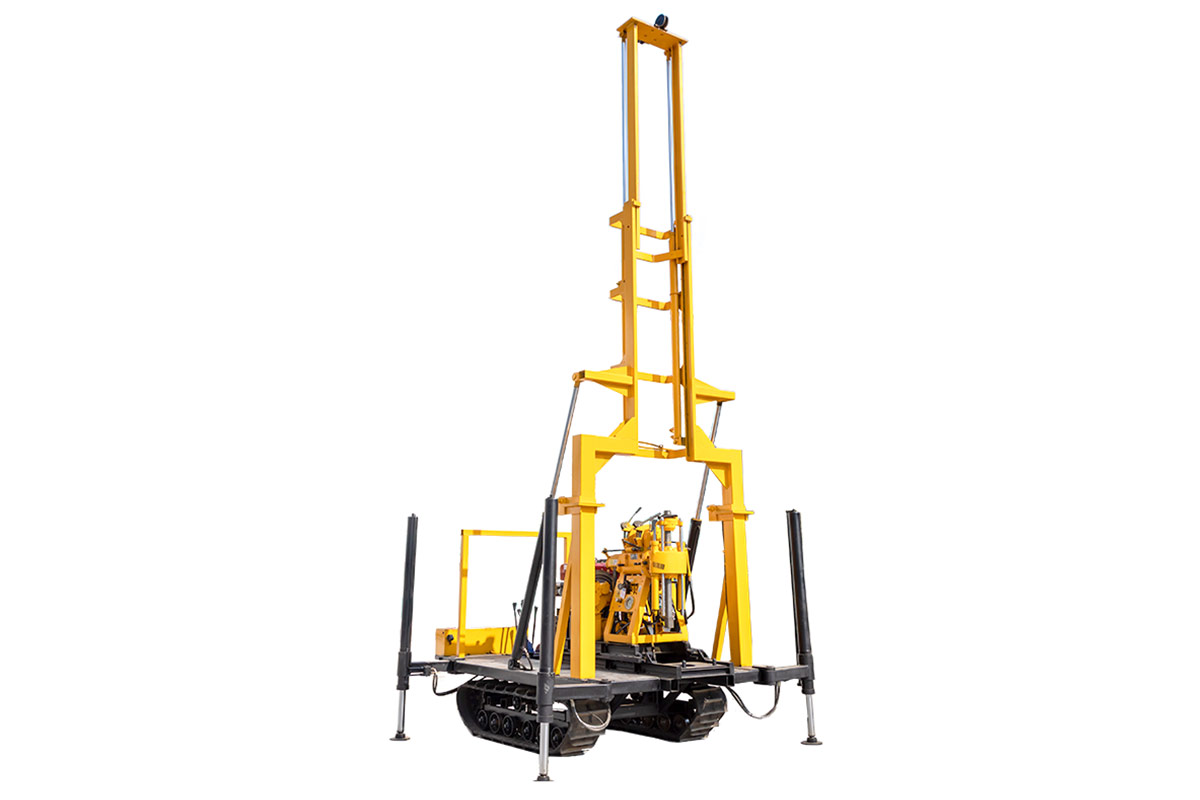

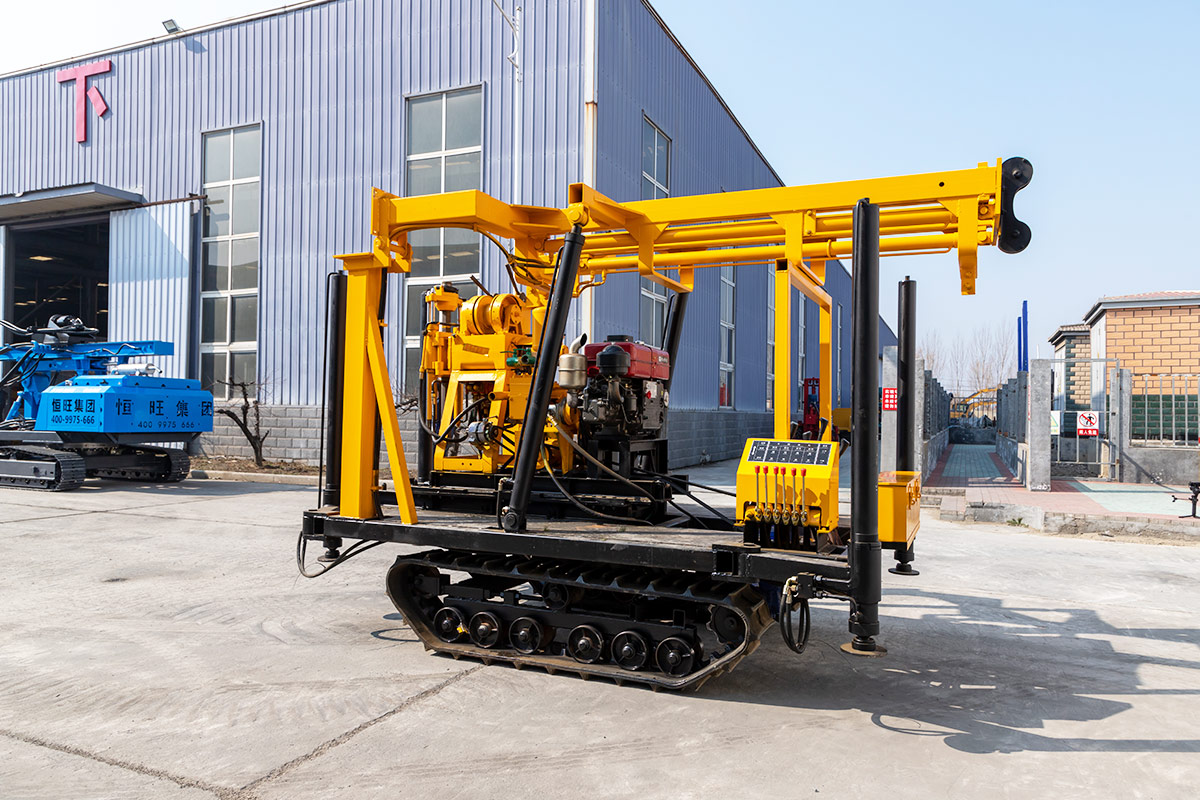

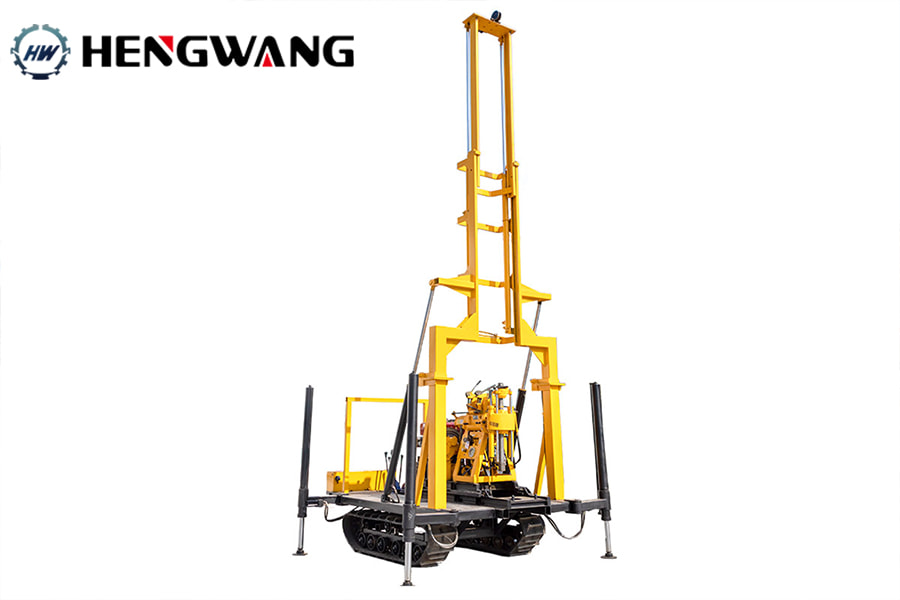

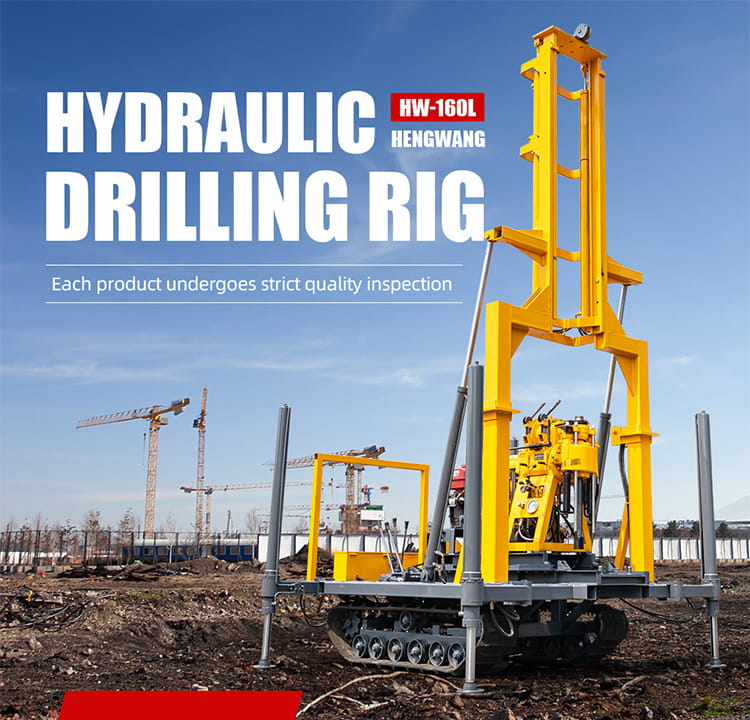

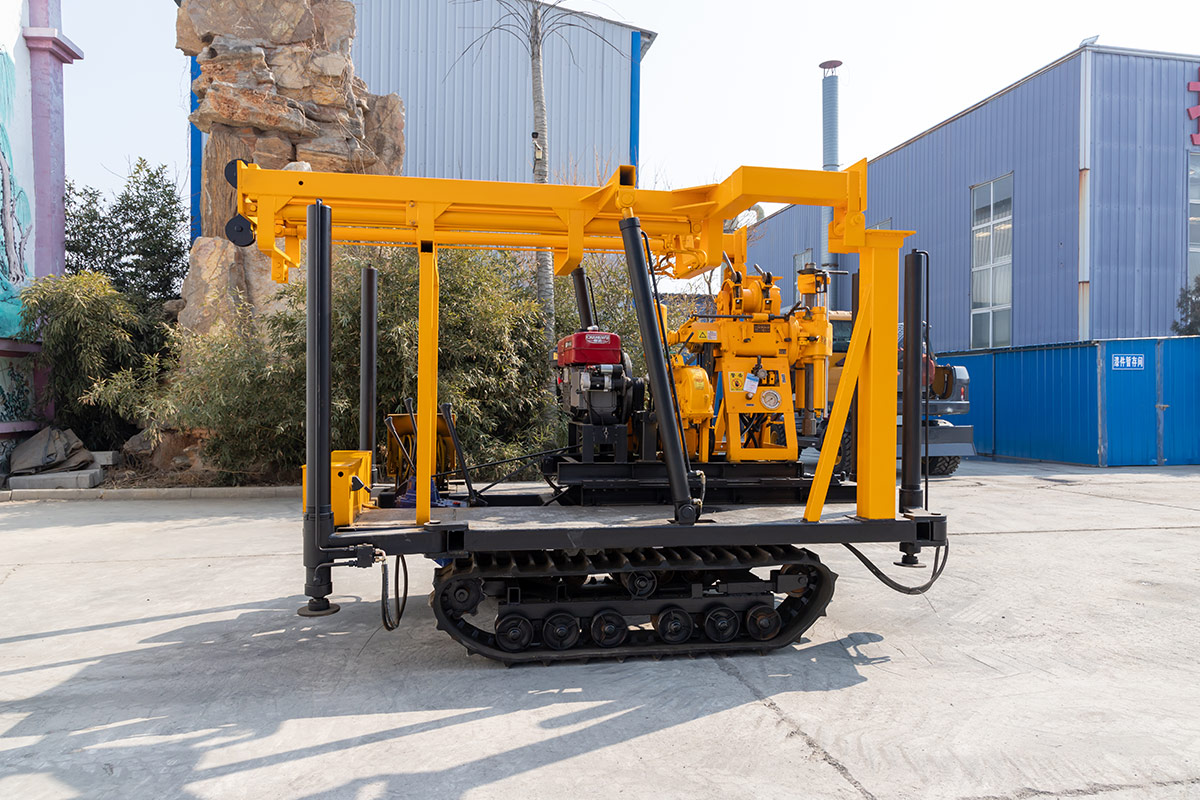

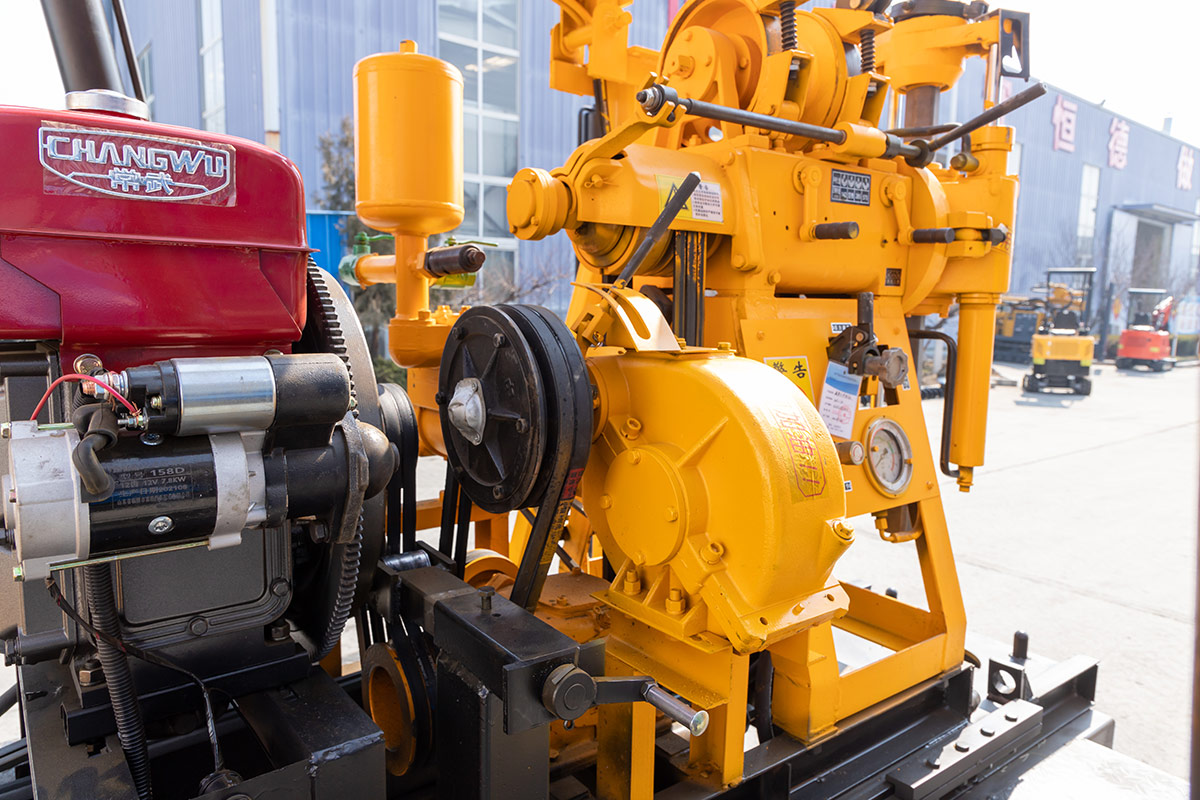

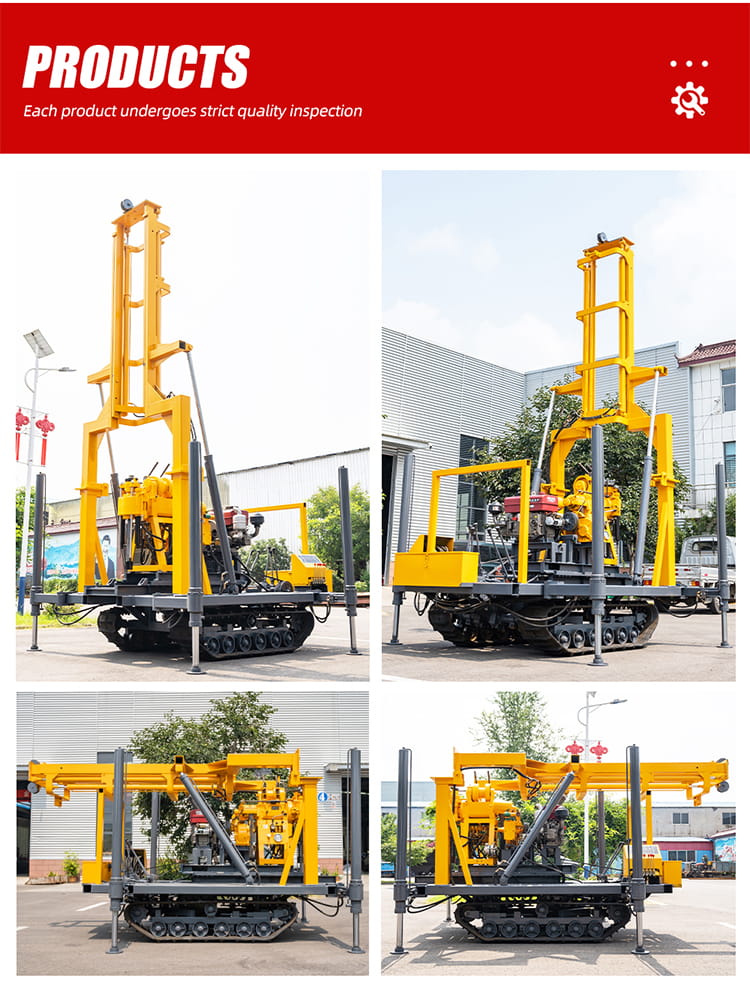

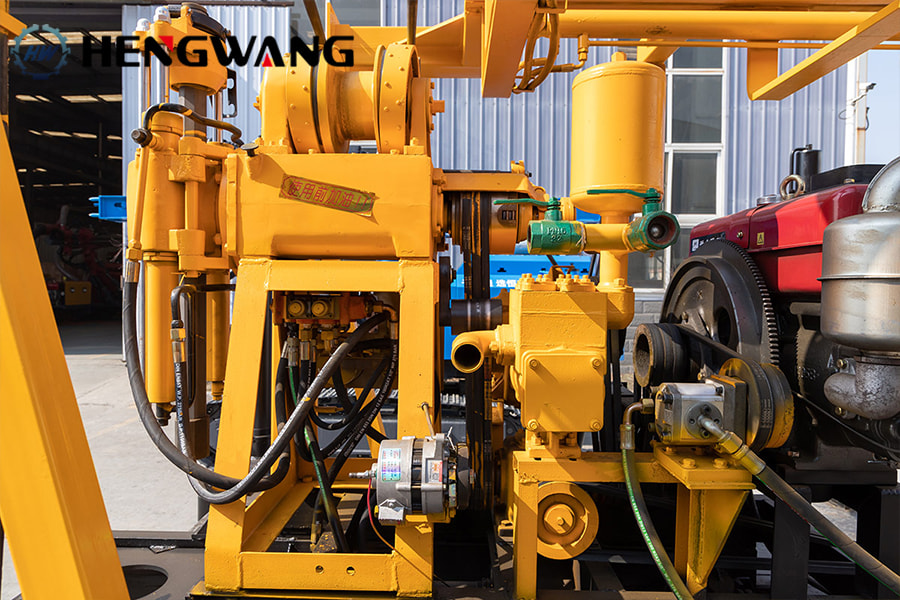

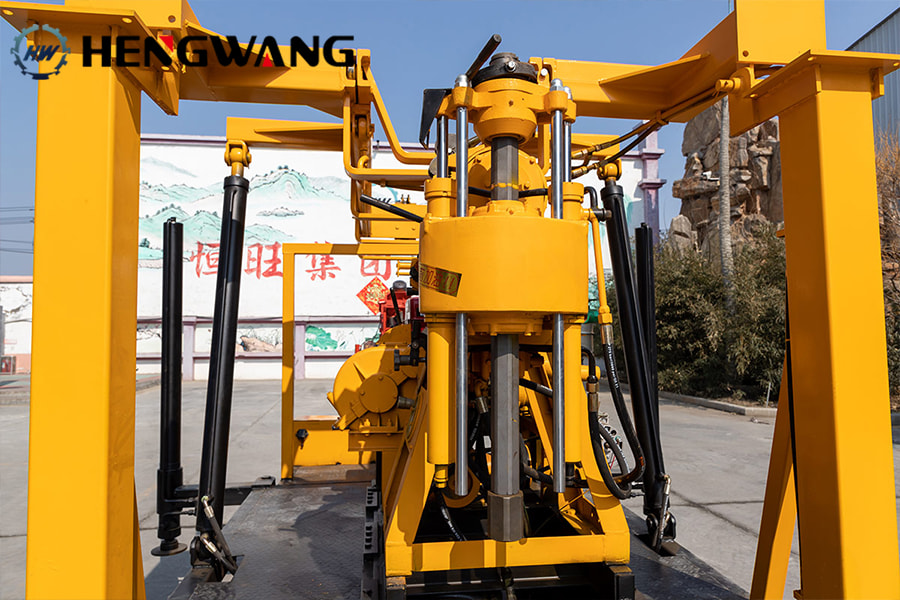

HW-160L Hydraulic Drilling Rig

  • Factory direct
  • One-year warranty
Drilling diameter: 75-500mm
Drilling depth: 160m
Rated Power: 13.2Kw
Product Detail


Crazy Engineering Day discounts, submit the form to receive discounts on orders.





modelHW160L
Drilling depth160m
Opening diameter500(Soil)/220(Rock)mm
final hole diameter75mm
Drill pipe diameter42-50mm
Drilling angle90-75°

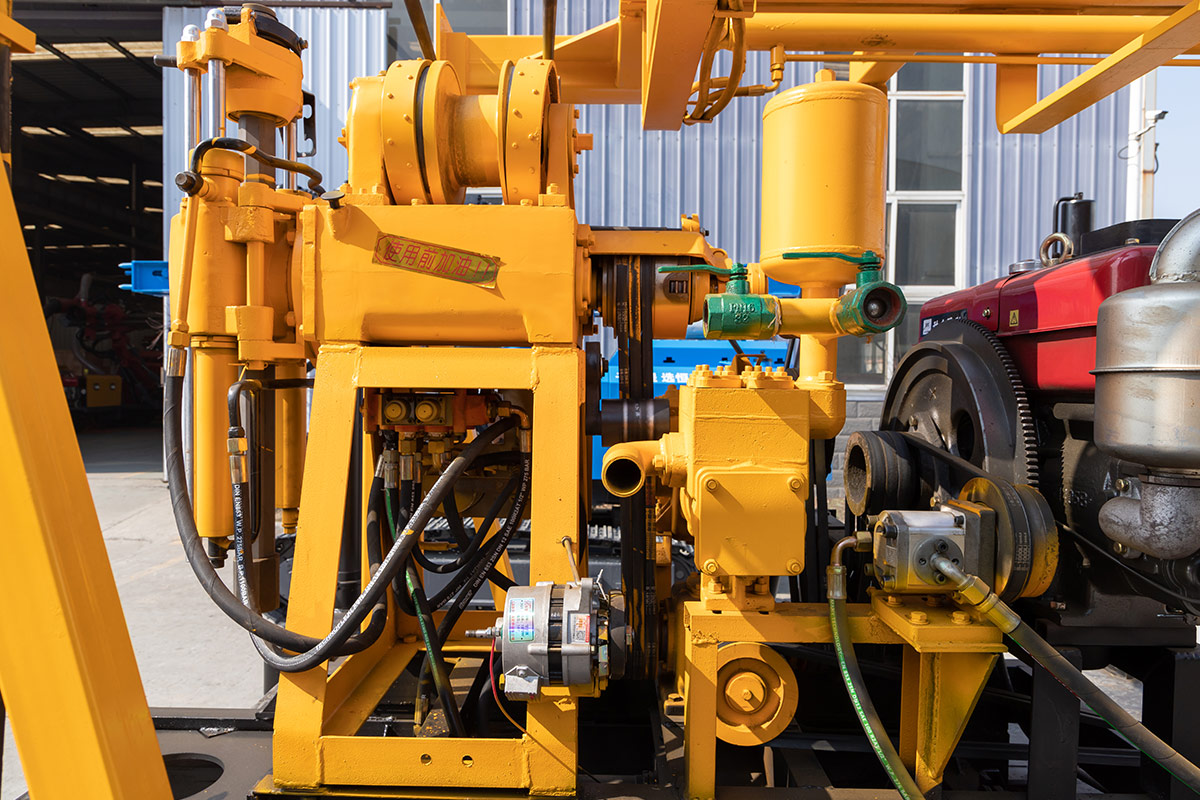

Engine power13.2kw
weight3200kg
Machine size3800*1950*2700mm

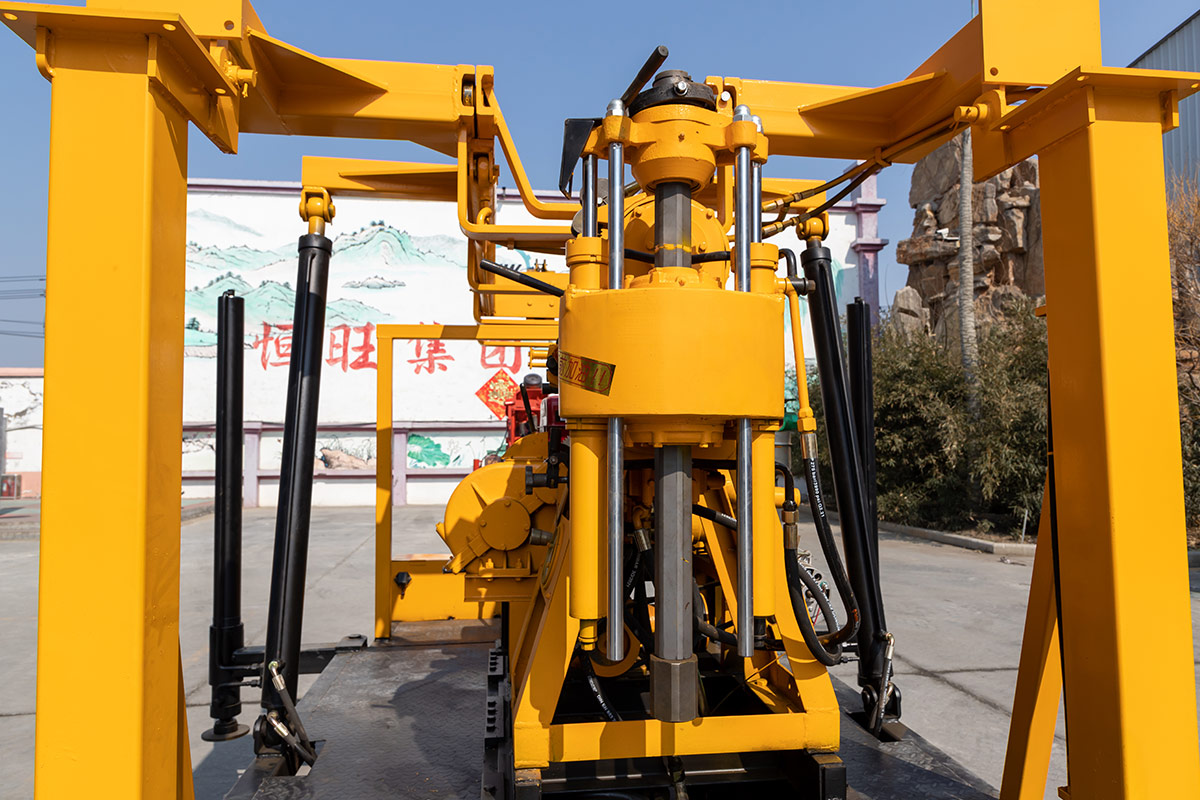

Vertical shaft speed142/285/570r/min
Vertical axis travel450mm
Single rope lifting force2000kg
Single rope lifting speed0.41-1.64m/s
Wire rope diameterφ9.3mm
Wire rope capacity27m
Rated load18Ton
effective height6.5m

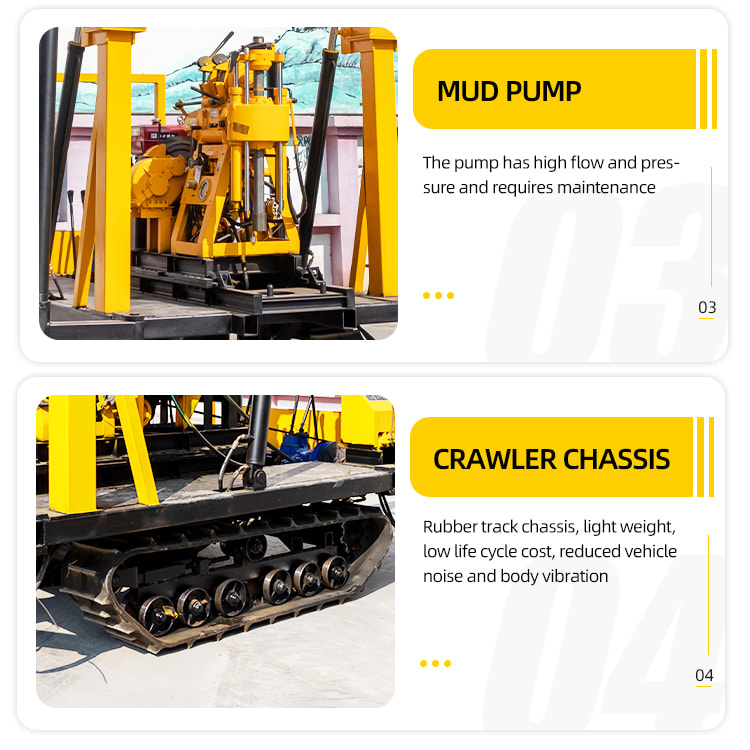

flow95L/Min
greatest pressure1.2Mpa
Optional configuration
Walking Gantry





The HW-160L hydraulic drilling rig is a versatile and powerful machine designed for precision and efficiency in various drilling applications.

Built with advanced hydraulic technology, this rig offers exceptional drilling speed and depth control, making it ideal for complex geological

 conditions. Its compact design allows for easy transportation and maneuverability in tight spaces, while the durable construction ensures

long-term reliability even in the most demanding environments. The HW-160L is also equipped with user-friendly controls and safety features,

 ensuring smooth operation and minimizing downtime. Whether you're drilling for water, minerals, or other resources, the HW-160L delivers

 consistent performance with impressive cost-effectiveness.
