Drilling depth: 160m
Drilling diameter: 75-500mm
Rated Power: 13.2Kw
Drilling diameter: 75-500mm
Rated Power: 13.2Kw
Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon

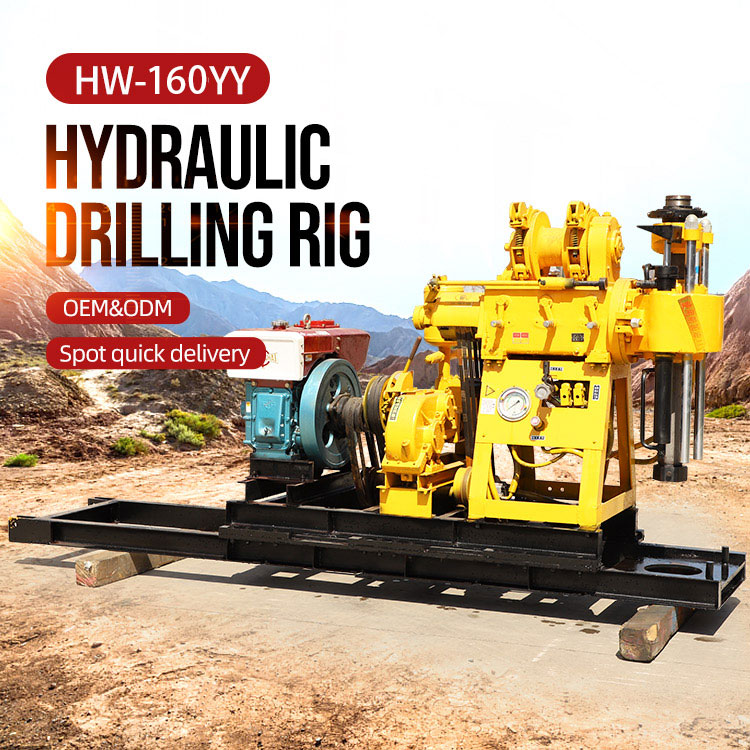

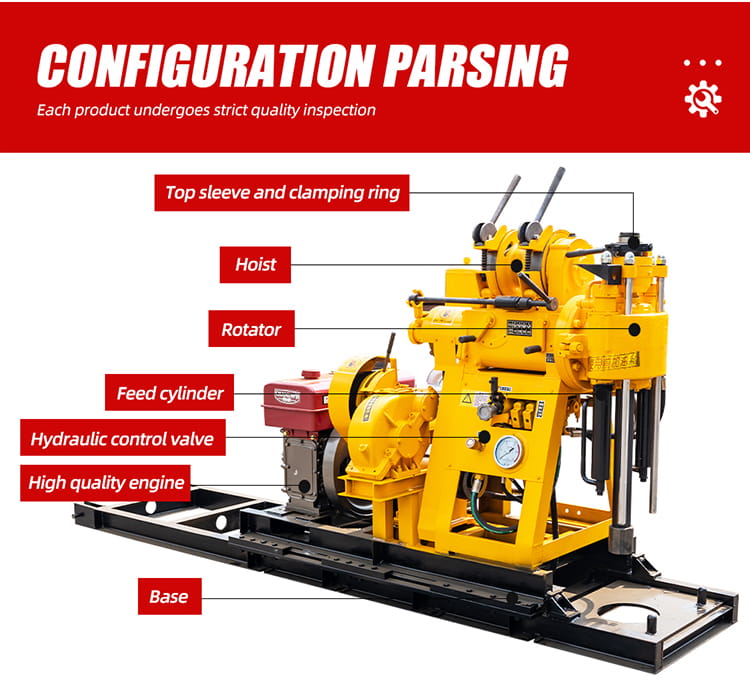

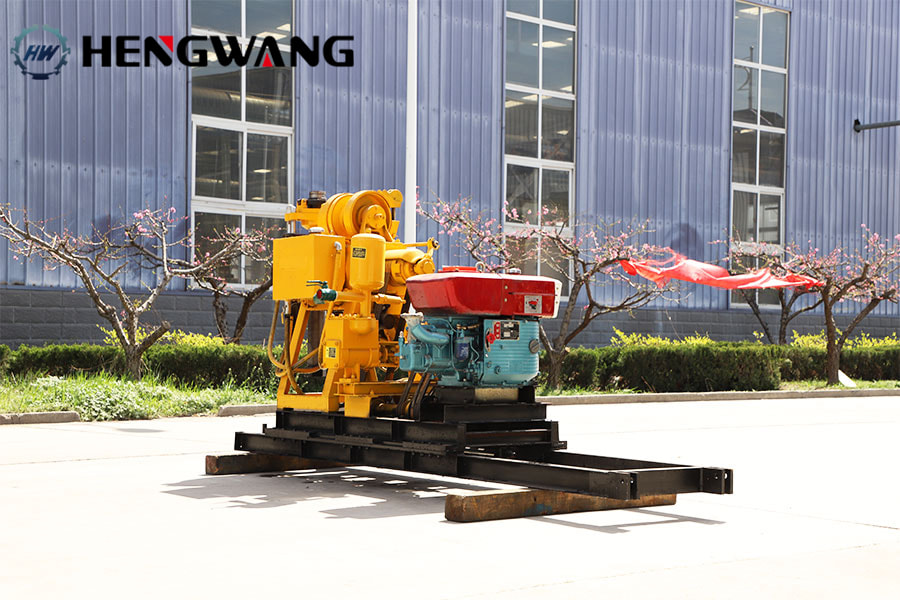

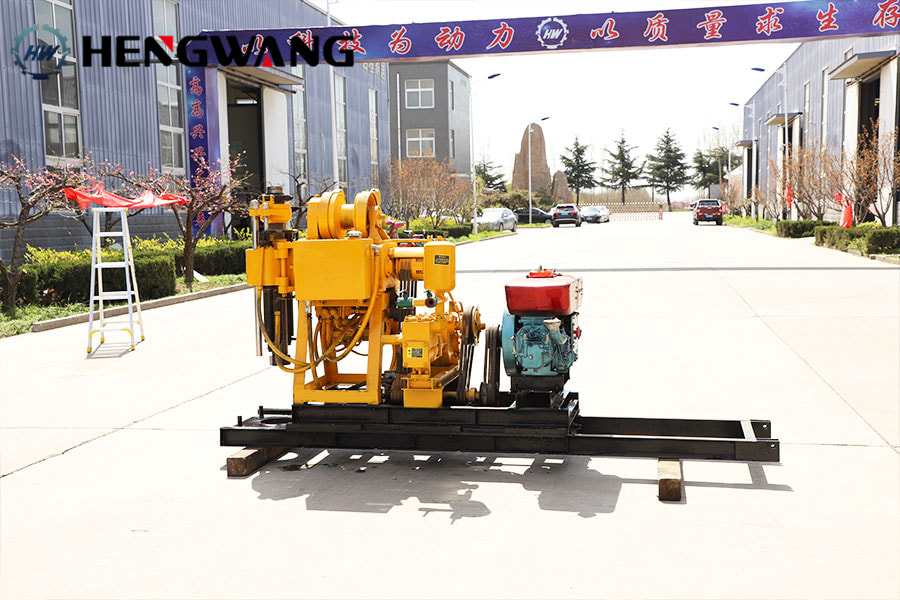

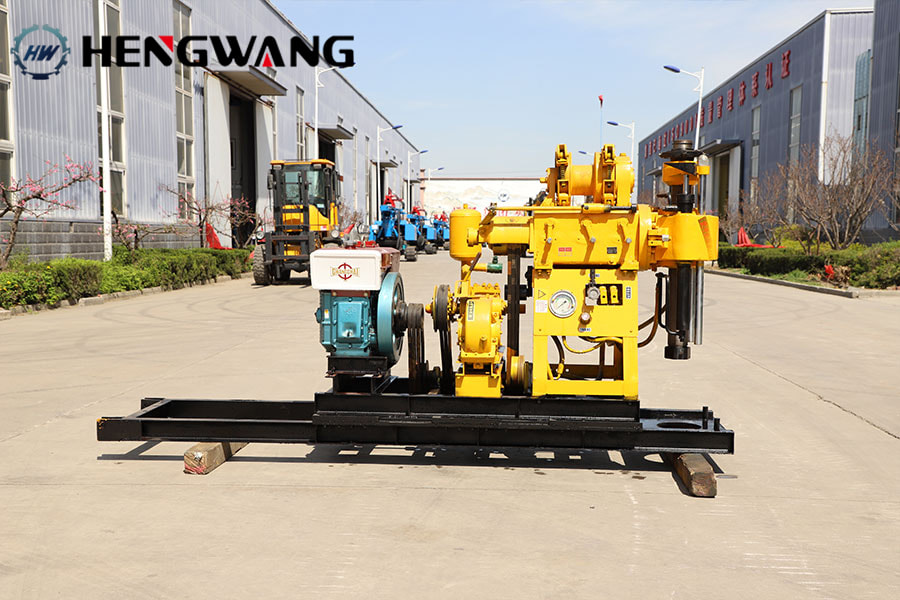

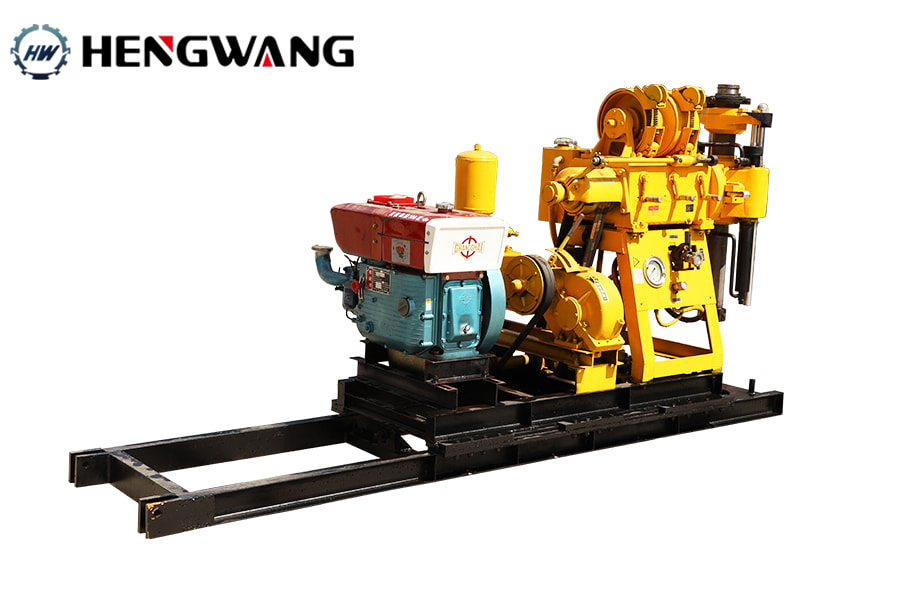

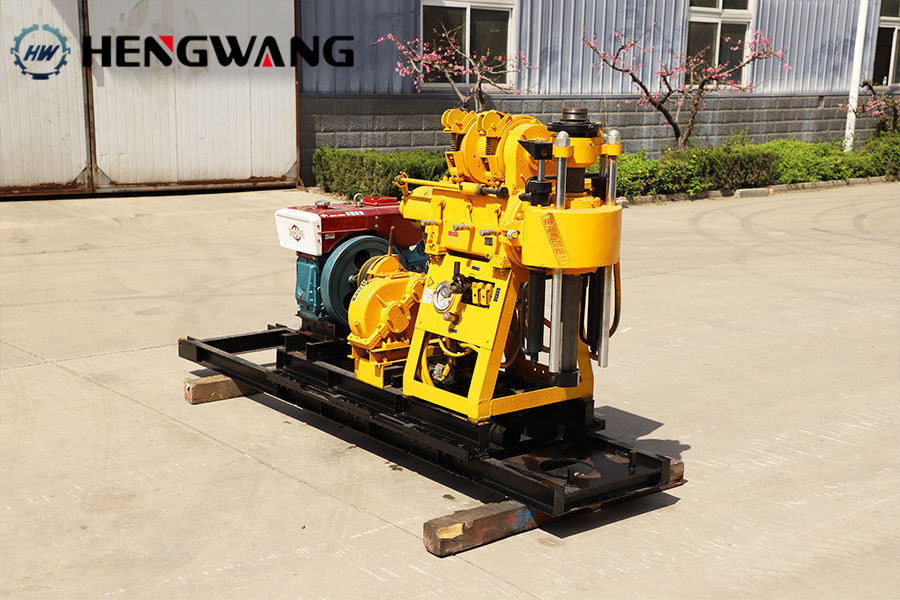

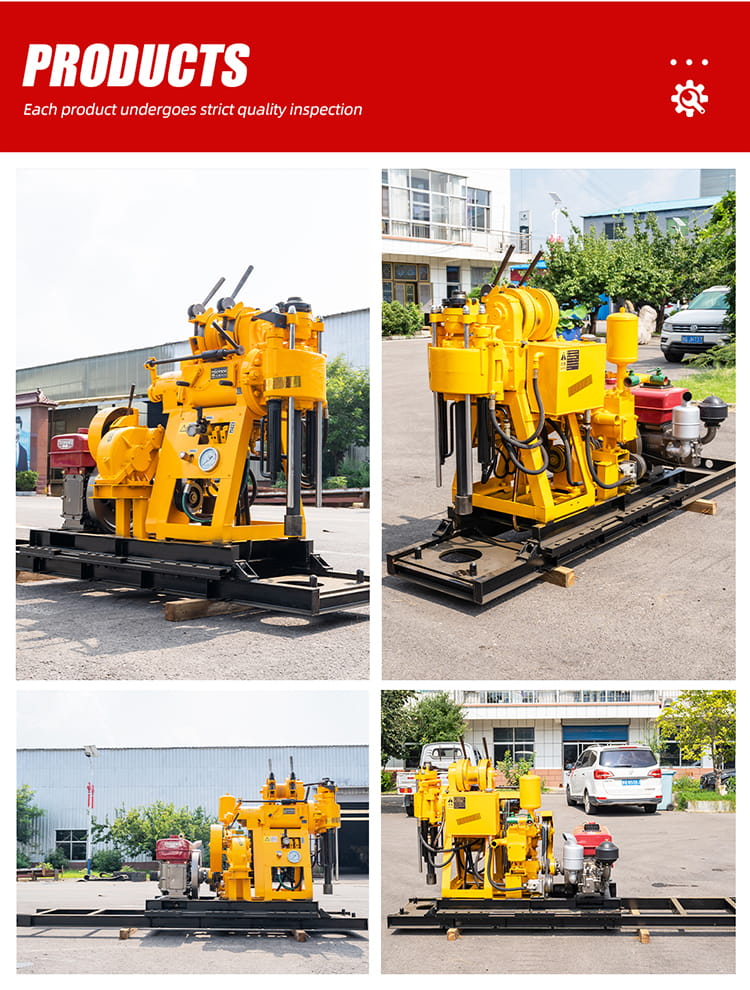

The 160L hydraulic drilling rig is a versatile piece of equipment commonly used in geological exploration and water well drilling.
Its design allows it to perform both core sampling and well drilling, meaning it has the following two functions:
1. Core Sampling:
- The 160L hydraulic drilling rig can extract continuous core samples from underground rock layers or soil. These samples are
analyzed to understand geological structures, mineral deposits, and other subsurface resources.
- Core sampling requires precision and drilling stability, and the 160L hydraulic rig provides sufficient pressure and torque to
ensure high-quality core retrieval.
2. Well Drilling:
- This rig is also suitable for water well drilling. It can drill deep wells in various geological conditions, making it ideal for water
resource extraction or other subsurface resources.
- During the drilling process, the 160L hydraulic rig can be equipped with different drilling tools to adapt to various soil and
rock types, offering efficient drilling capabilities.

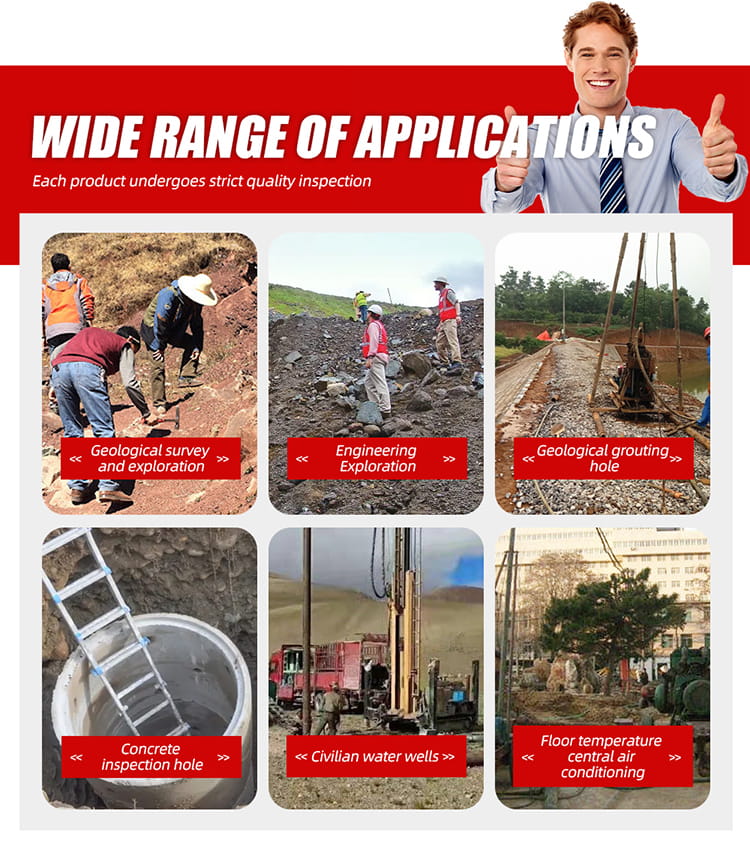

Therefore, the 160L hydraulic drilling rig is indeed capable of both core sampling and well drilling, making it suitable for a wide
range of geological exploration and water well drilling projects. Its versatility makes it an essential tool in fields such as mineral
exploration, water resource management, and environmental studies.
Parameter
| model | HW160YY | |
| Drilling depth | 160 | m |
| Opening diameter | 500(Soil)/220(Rock) | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50 | mm |
| Drilling angle | 90-75 | ° |
| Engine power | 13.2 | kw |
| weight | 850 | kg |
| Machine size | 2400*800*1300 | mm |
| Vertical shaft speed | 142/285/570 | r/min |
| Vertical axis travel | 450 | mm |
| Single rope lifting force | 2000 | kg |
| Single rope lifting speed | 0.41-1.64 | m/s |
| Wire rope diameter | φ9.3 | mm |
| Wire rope capacity | 27 | m |
| Rated load | 18 | Ton |
| effective height | 6.5 | m |
| flow | 95 | L/Min |
| greatest pressure | 1.2 | Mpa |
| Optional configuration | Walking Gantry | |
