TQZ-260 Pneumatic Drill Rig

  • Factory direct
  • One-year warranty
Drilling depth: 260m
Drilling diameter: 130-254mm
Engine Power: 40Hp
Product Detail

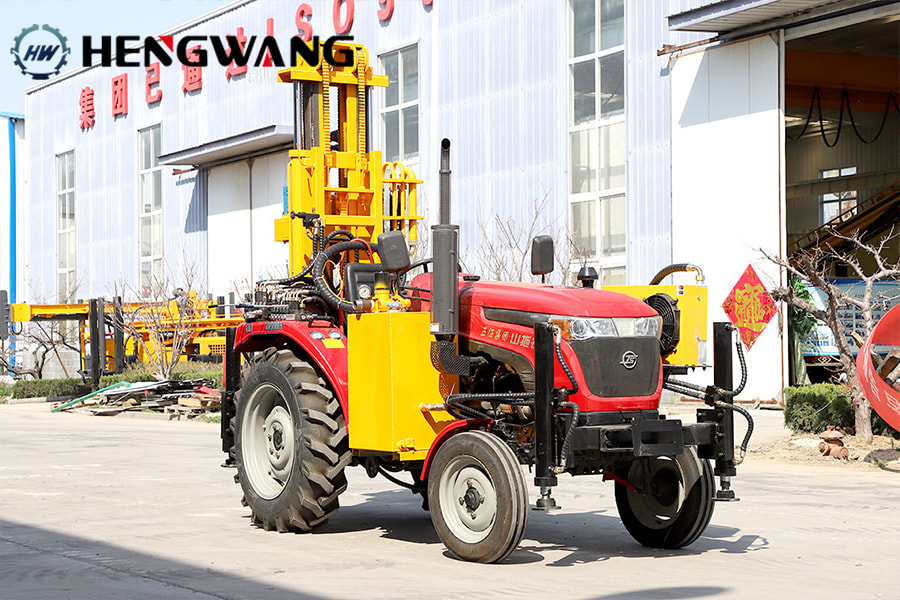

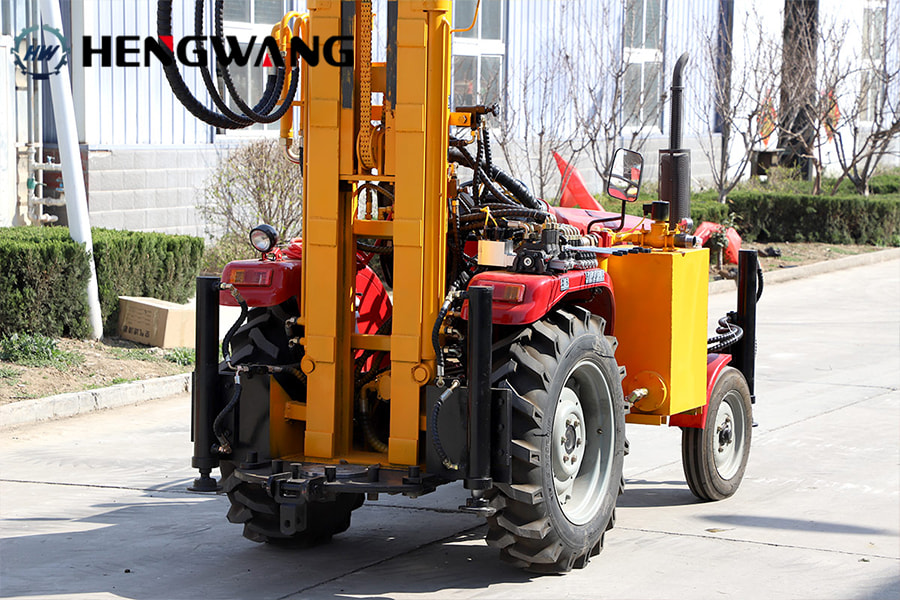

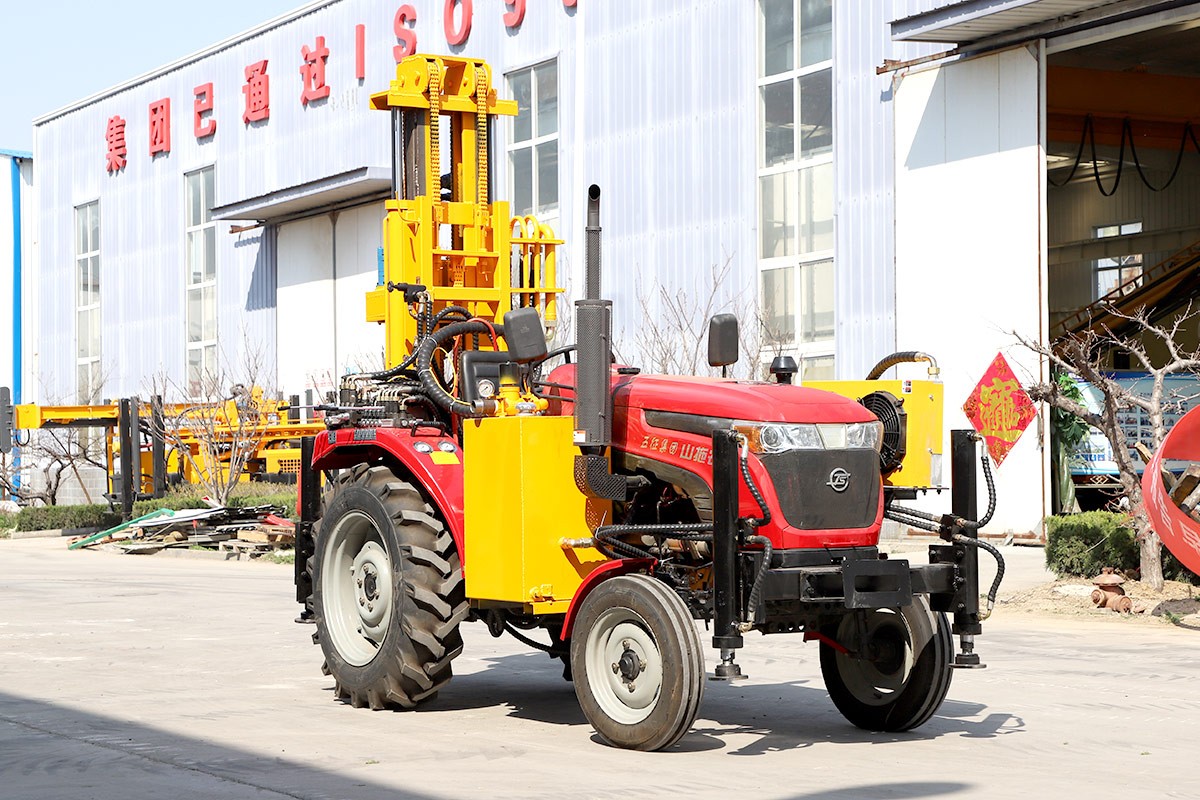

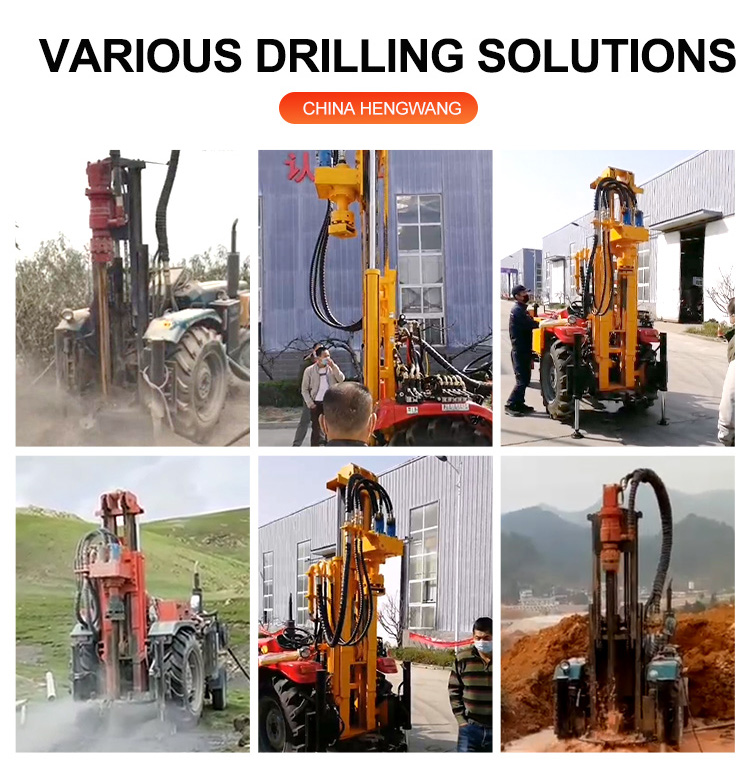

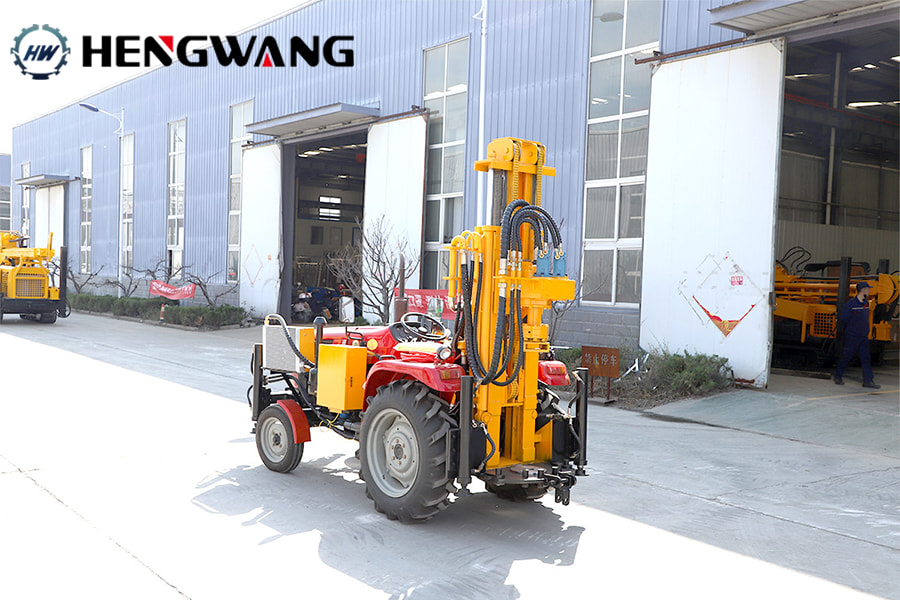

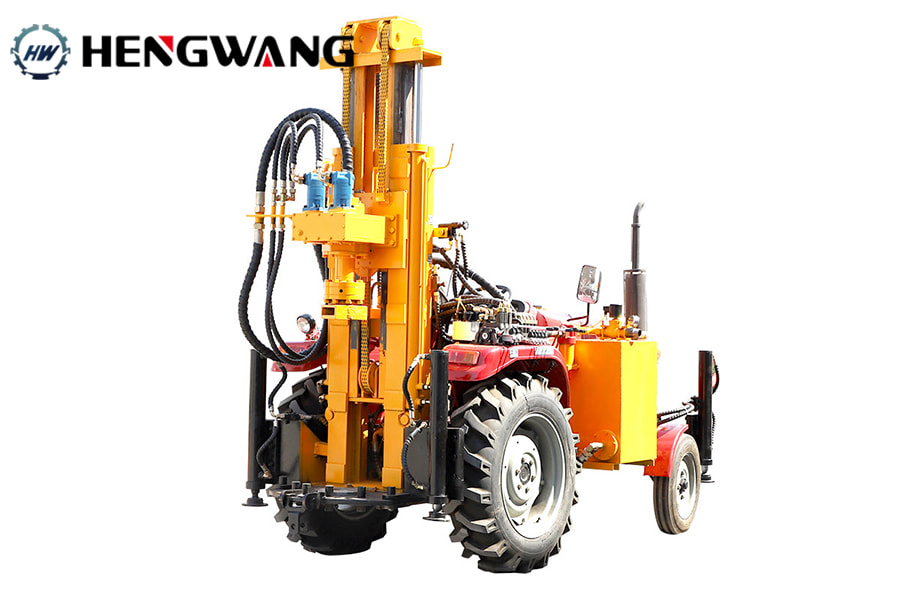

This product is an integrated drilling equipment that combines a tractor and a pneumatic water well drilling rig. It is designed for easy mobility and incorporates an air compressor.It is suitable for various drilling projects including industrial, civil, and geothermal drilling.

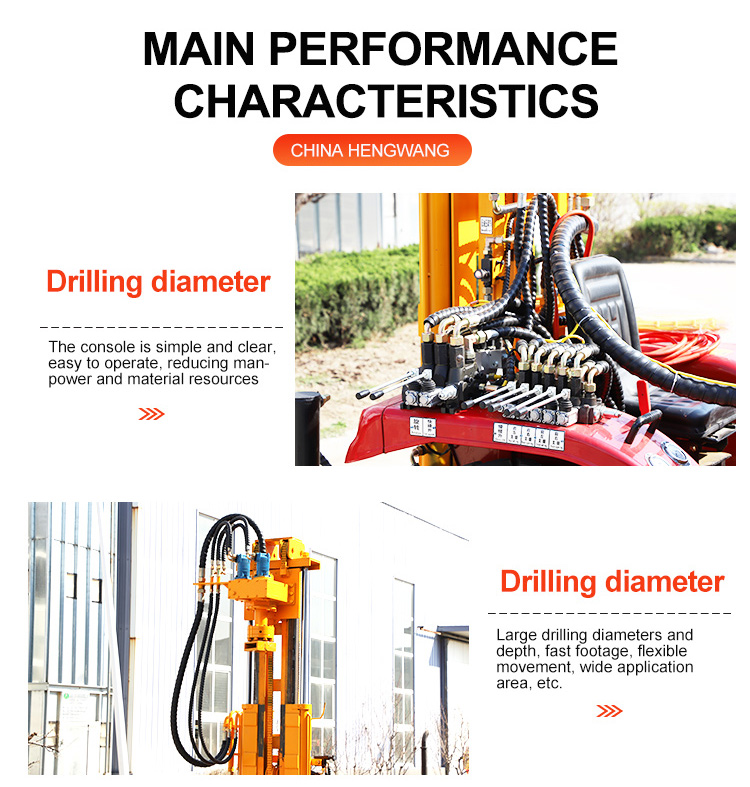

Main features:

1. The pneumatic drilling rig works in conjunction with an air compressor, resulting in high working efficiency.

2. Enhanced stability through the addition of counterweights.

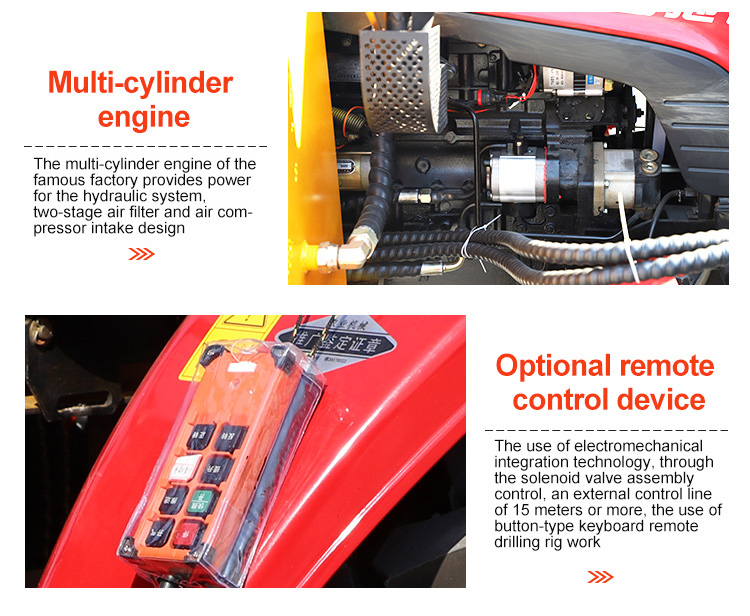

3. Perfect cooperation between the engine and hydraulic system, leading to improved fuel efficiency.


Parameter:

modelHQZ-260
ChassisTractor/
Drilling diameter130-254mm
Drilling depth260m
One-time advancement length1.5m
Engine power40HP
working pressure1.7-2.5mpa
Air consumption17-31m³/min
Drill pipe diameter76/89mm
Drill pipe length1.5m
Lifting power15T
Swing speed40-65rpm
Rotating torque3500-3800N.m
Dimensions3500*1700*2700mm
weight4T
