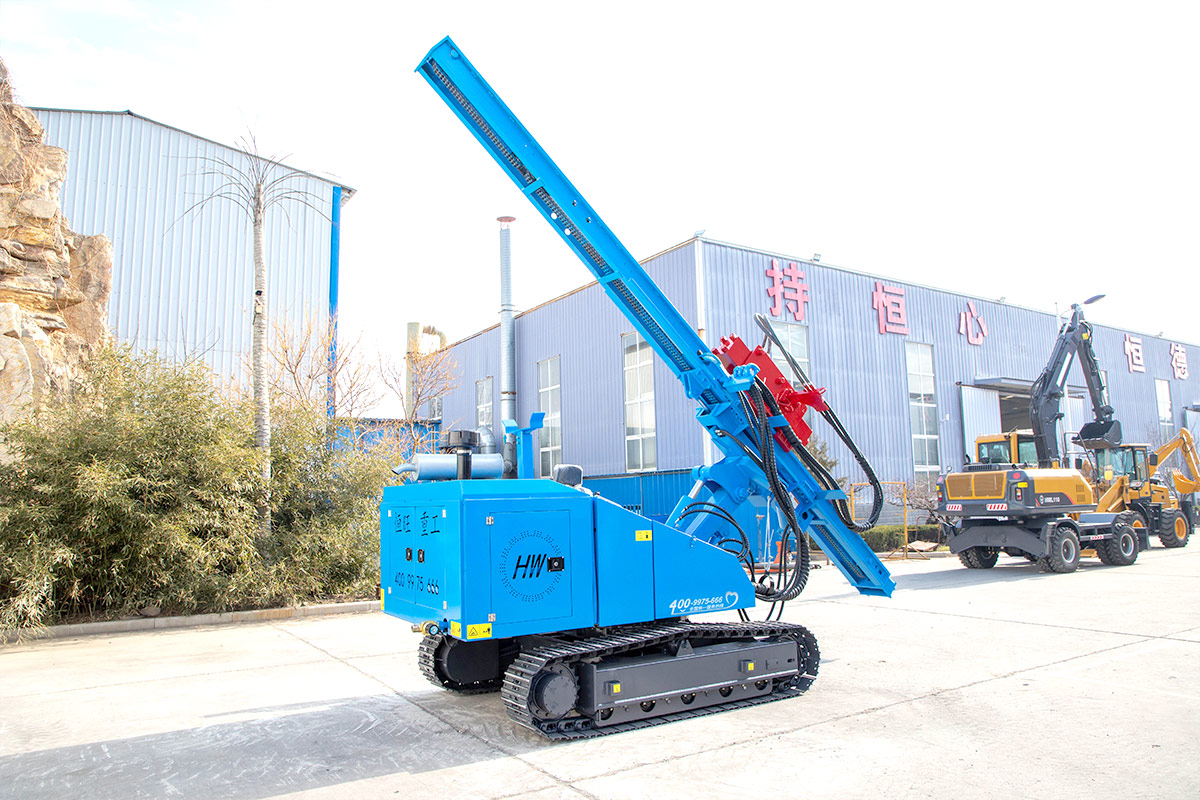

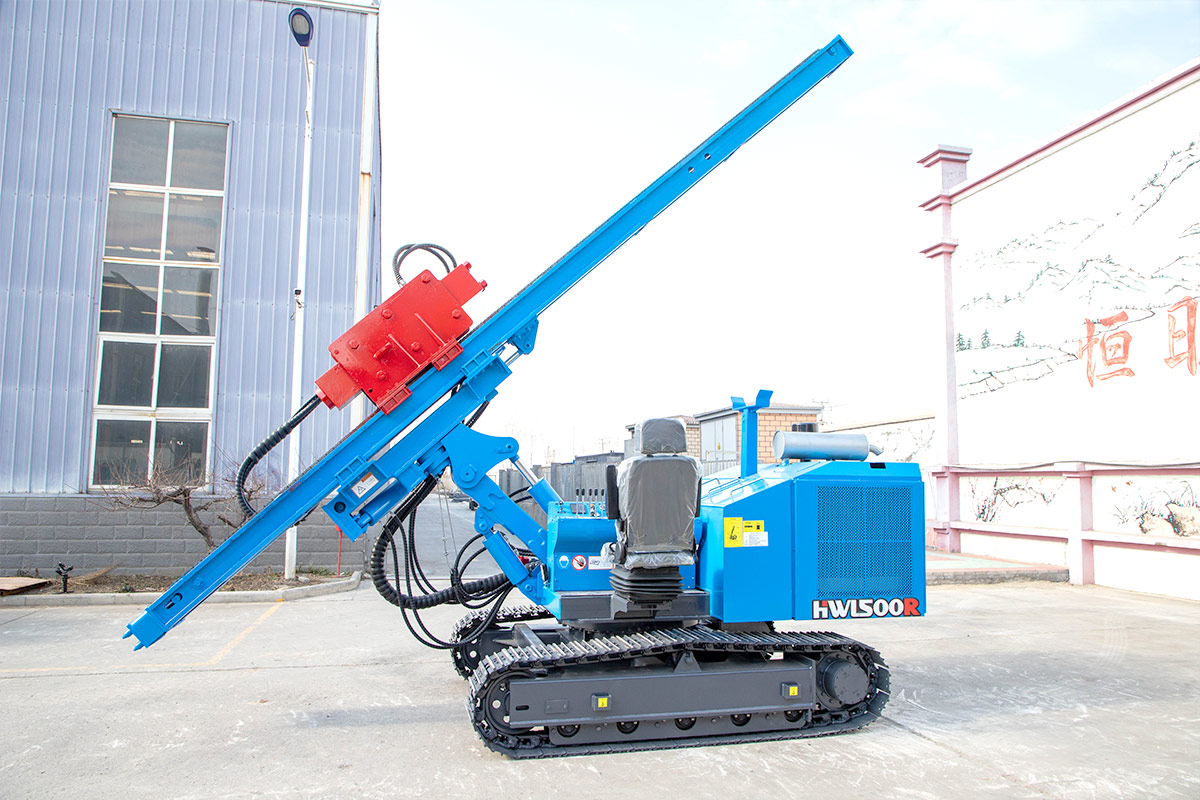

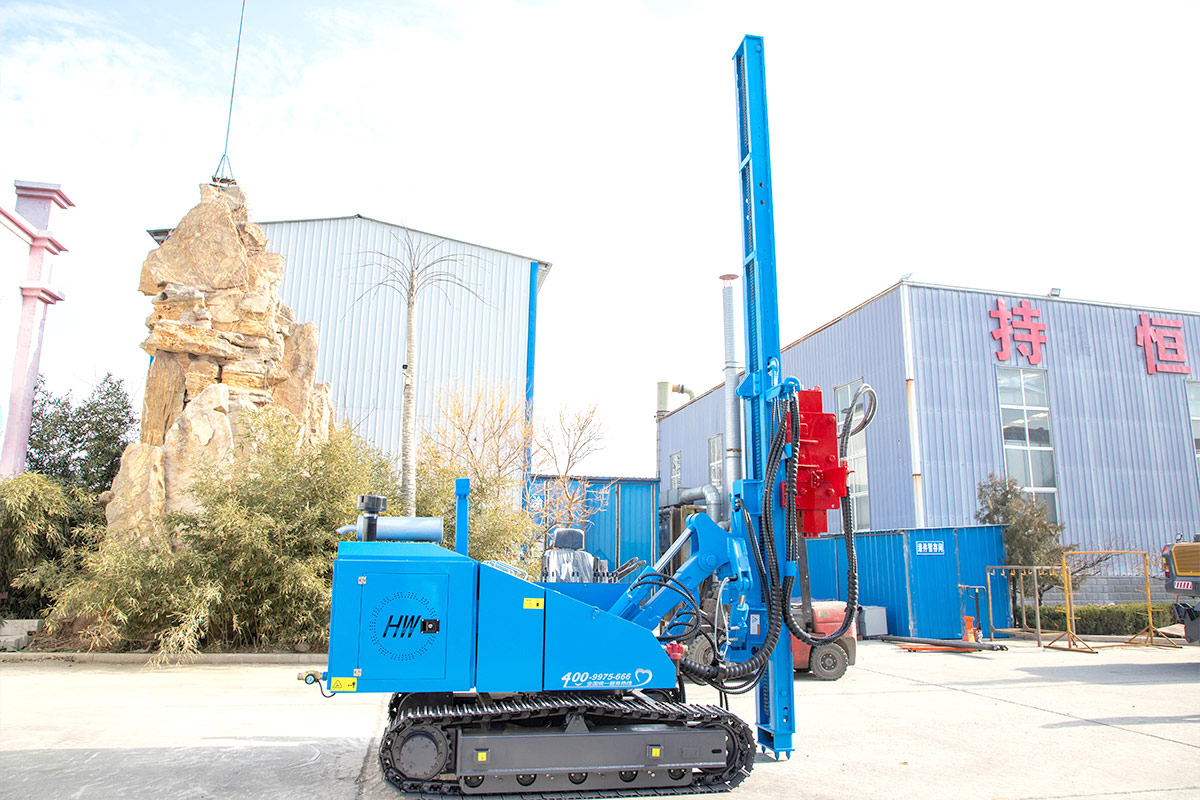

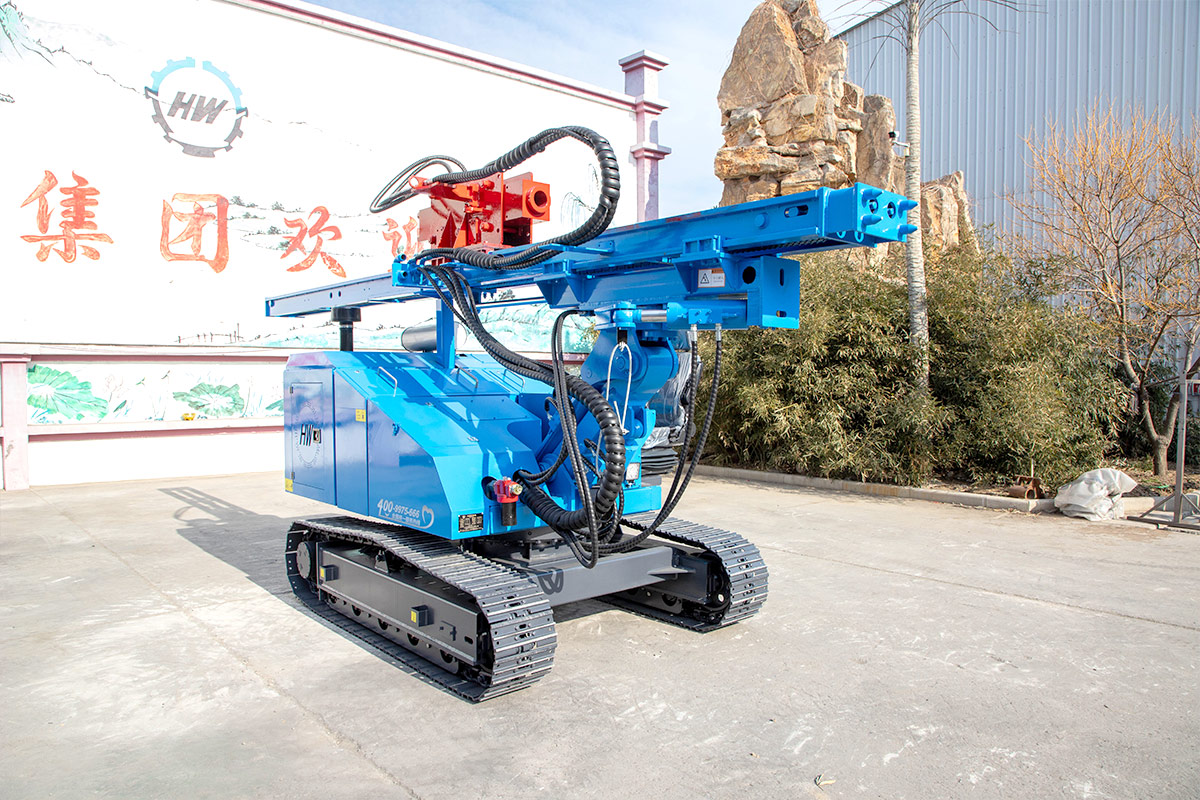

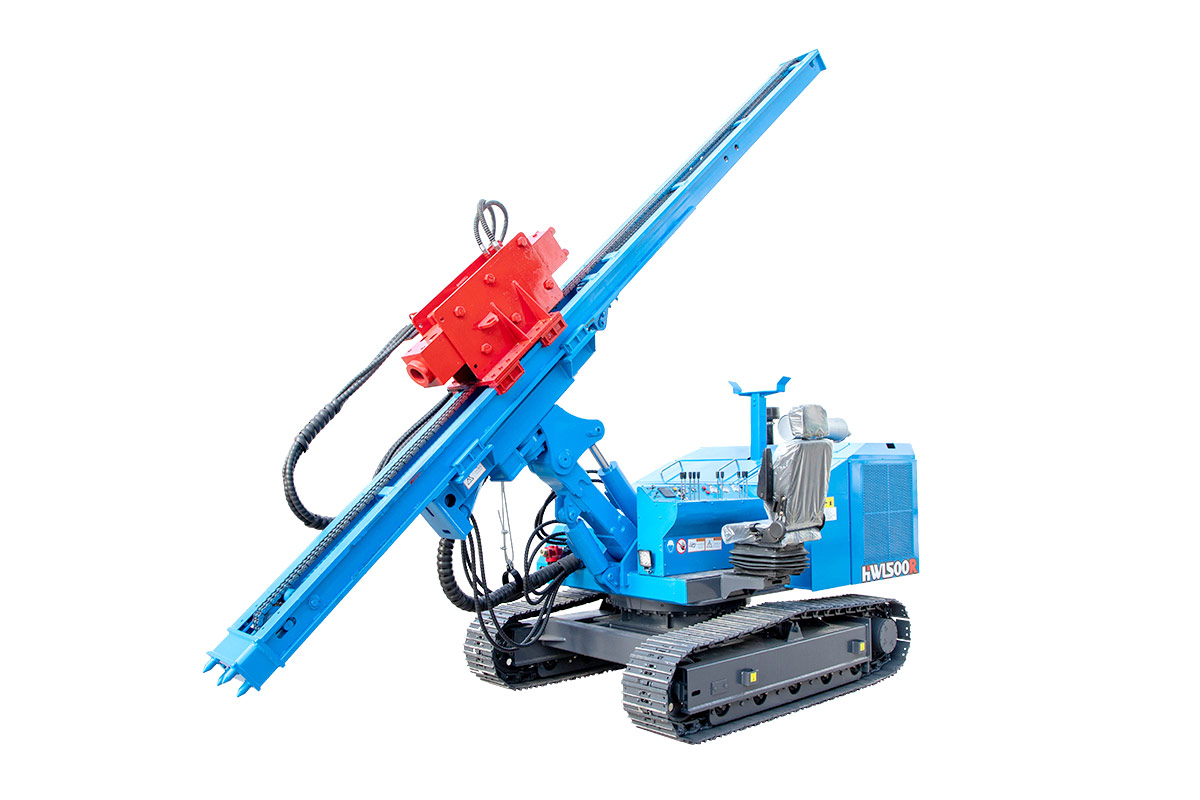

HWL500R Solar Pile Driver

  • Factory direct
  • One-year warranty
Pile Length: 5m
Rotation angle : 360°
Machine Weight: 7.7T
Product Detail

Crazy Engineering Day discounts, submit the form to receive discounts on orders.


Product numberHWL500R
Hydraulic hammer model75/85/100 optionalmm
Hydraulic hammer flow50-110L/min
Impact frequency350-800bmp
Drill rod diameter75/85/100mm
pile height5m
Pile height sliding guide frame tilt angle(Left)5(Right)5°
Rack rotation angle360°
Hydraulic system pressure22mpa
Gear pump displacement40+40+25ml/r
Driving speed3km/h
Vehicle weight7700kg
Engine power85kw
Engine rated speed2600r/min
Track shoe width350mm

L*W*H 2375*1980*6760mm(working status)

L*W*H 6760*1980*2375mm(Shipping status(The transportation height is the height with the hydraulic hammer head/hydraulic power head removed)

Hydraulic drilling power headmodel


single maximum depth5m
Maximum DTH diameter130-400mm
Maximum spiral drilling diameter500mm




Thank you for your interest in the HWL500R photovoltaic piling machine by Hengwang Group. This high-performance piling equipment is designed for various sites, including photovoltaic power stations as well as piling projects in farms, pastures, orchards, and more.

The HWL500R offers several main features:

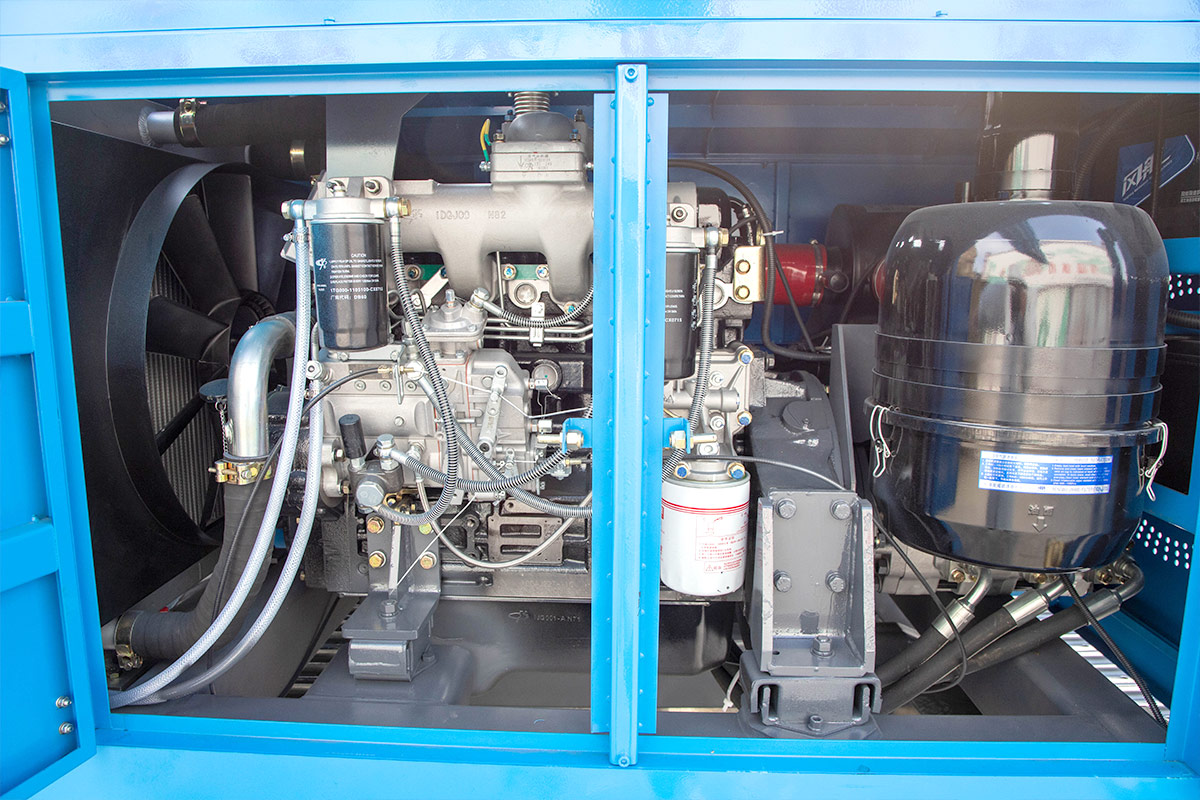

1. Efficient Power Engine: The equipment is equipped with a reasonable power engine that ensures stable and high performance while optimizing fuel consumption.

2. High-Quality Hydraulic Components: The HWL500R utilizes high-quality hydraulic components, combined with a strict assembly process, to ensure the hydraulic system operates with high efficiency and reliability.

3. International High-Standard Raw Materials: The machine is constructed using international high-standard raw materials, which contribute to the stability and durability of the car body.

4. Industrial Aesthetic Design: The HWL500R features a design that combines functionality with an industrial aesthetic, providing both practicality and visual appeal.

To receive a quote for the HWL500R photovoltaic piling machine, please provide us with the following information:

Once you submit the form, our sales team will review your request and provide you with the best price for the HWL500R. Thank you for considering Hengwang Group's equipment, and we look forward to assisting you further!
