Pile Length: 5m
Rotation angle : 360°
Machine Weight: 7.7T
Rotation angle : 360°
Machine Weight: 7.7T
Crazy Engineering Day discounts, submit the form to receive discounts on orders.
| Product number | HWL500R | |
| Hydraulic hammer model | 75/85/100 optional | mm |
| Hydraulic hammer flow | 50-110 | L/min |
| Impact frequency | 350-800 | bmp |
| Drill rod diameter | 75/85/100 | mm |
| pile height | 5 | m |
| Pile height sliding guide frame tilt angle | （Left）5（Right）5 | ° |
| Rack rotation angle | 360 | ° |
| Hydraulic system pressure | 22 | mpa |
| Gear pump displacement | 40+40+25 | ml/r |
| Driving speed | 3 | km/h |
| Vehicle weight | 7700 | kg |
| Engine power | 85 | kw |
| Engine rated speed | 2600 | r/min |
| Track shoe width | 350 | mm |
| dimensions | L*W*H 2375*1980*6760mm（working status） L*W*H 6760*1980*2375mm（Shipping status（The transportation height is the height with the hydraulic hammer head/hydraulic power head removed) | |
| Optional | |||
| Hydraulic drilling power head | model | HWQK350 | |
| Torque | 8000-12000（Optional） | N•m | |
| single maximum depth | 5 | m | |
| Maximum DTH diameter | 130-400 | mm | |
| Maximum spiral drilling diameter | 500 | mm | |
Thank you for your interest in the HWL500R photovoltaic piling machine by Hengwang Group. This high-performance piling equipment is designed for various sites, including photovoltaic power stations as well as piling projects in farms, pastures, orchards, and more.
The HWL500R offers several main features:

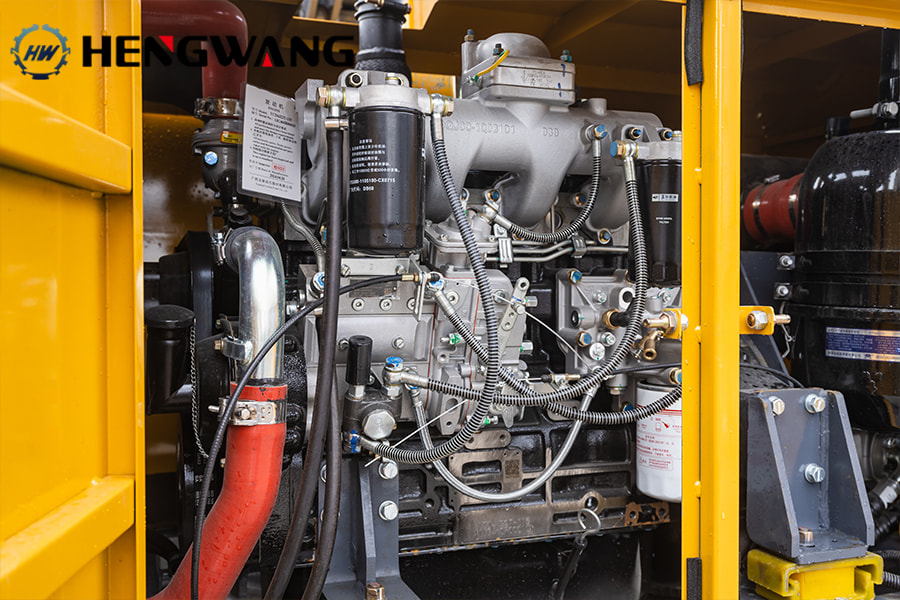

1. Efficient Power Engine: The equipment is equipped with a reasonable power engine that ensures stable and high performance while optimizing fuel consumption.
2. High-Quality Hydraulic Components: The HWL500R utilizes high-quality hydraulic components, combined with a strict assembly process, to ensure the hydraulic system operates with high efficiency and reliability.
3. International High-Standard Raw Materials: The machine is constructed using international high-standard raw materials, which contribute to the stability and durability of the car body.
4. Industrial Aesthetic Design: The HWL500R features a design that combines functionality with an industrial aesthetic, providing both practicality and visual appeal.
To receive a quote for the HWL500R photovoltaic piling machine, please provide us with the following information:
Once you submit the form, our sales team will review your request and provide you with the best price for the HWL500R. Thank you for considering Hengwang Group's equipment, and we look forward to assisting you further!
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
