Power:66 kW/76 kW/77.3 kW
Rated Load Capacity:3.5 Tons
Max Lifting Height:7.05 m/7 m
Rated Load Capacity:3.5 Tons
Max Lifting Height:7.05 m/7 m

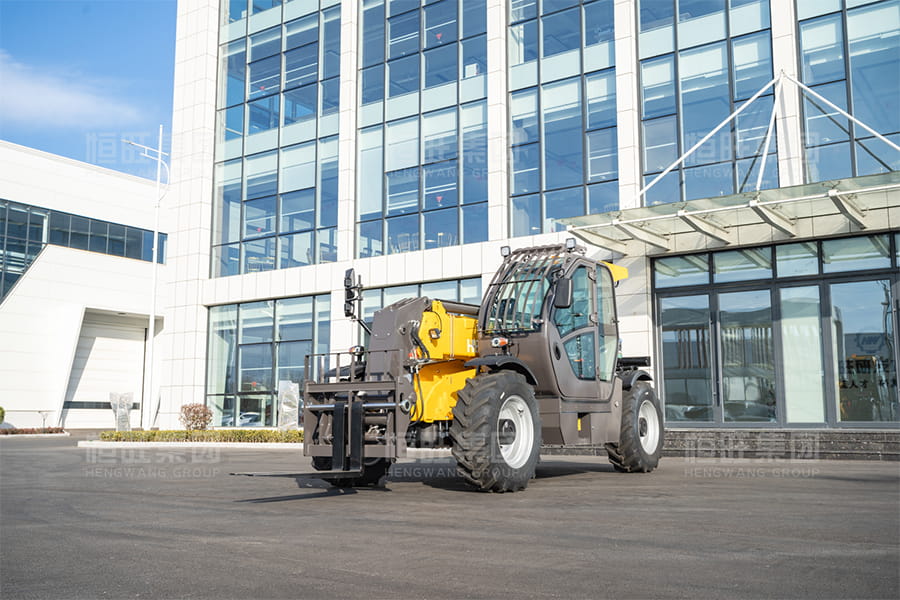

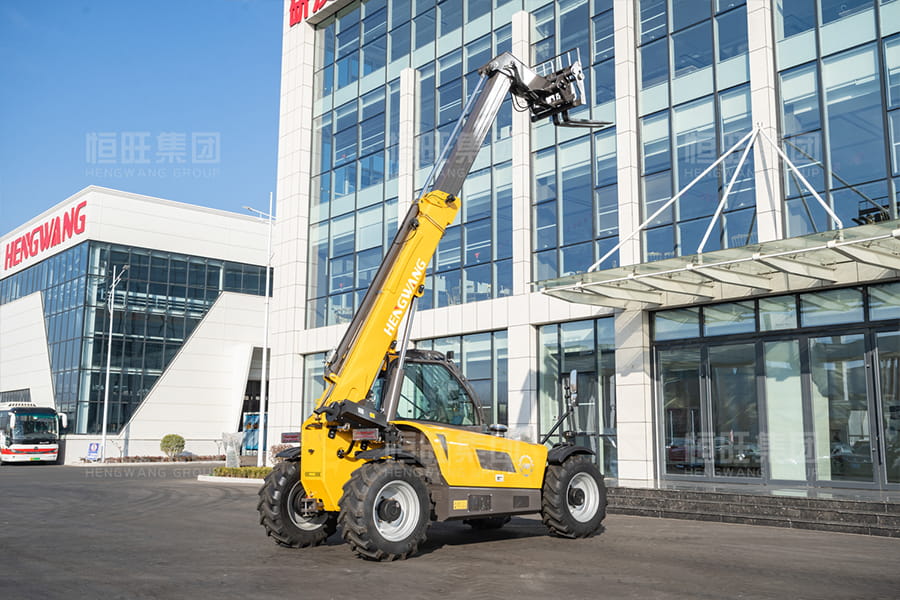

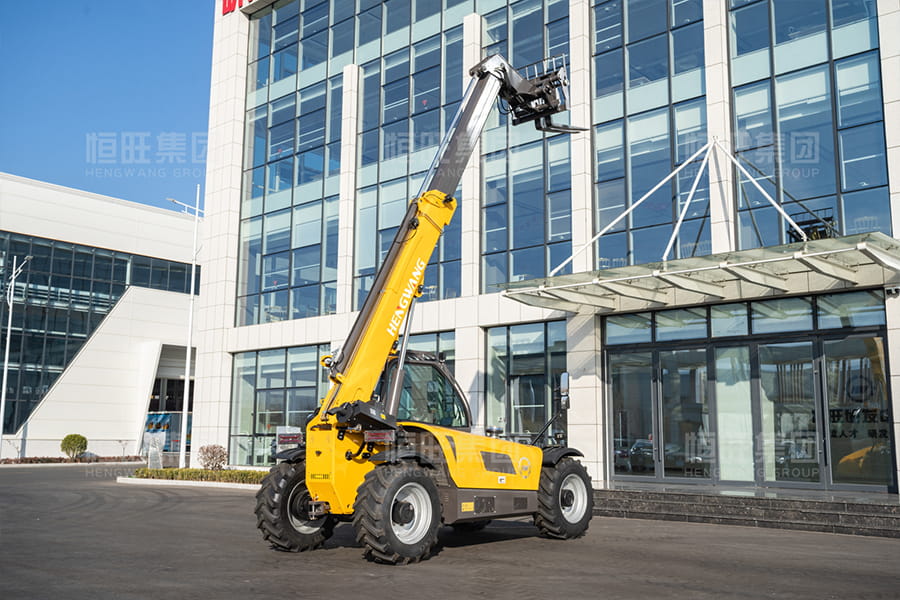

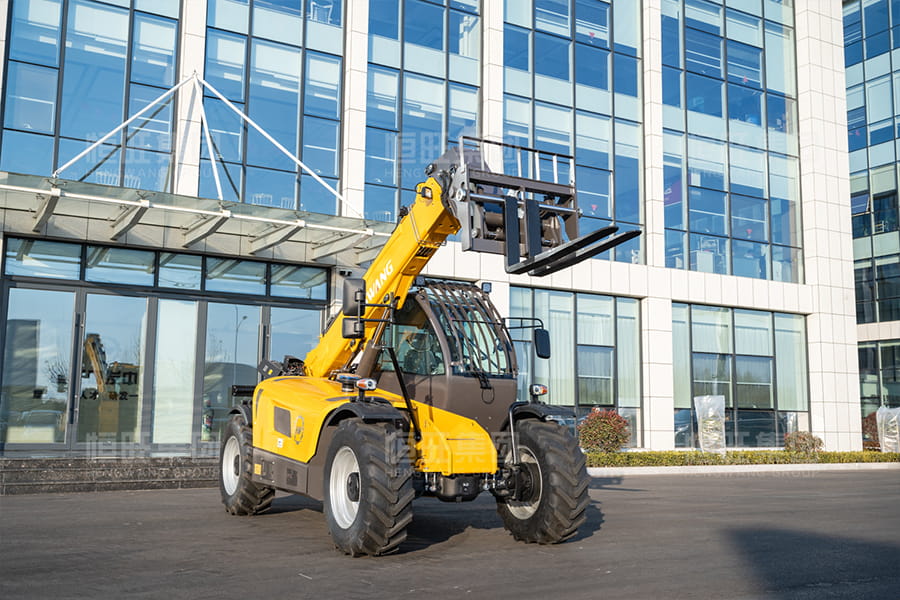

| Model | HW3507-A |

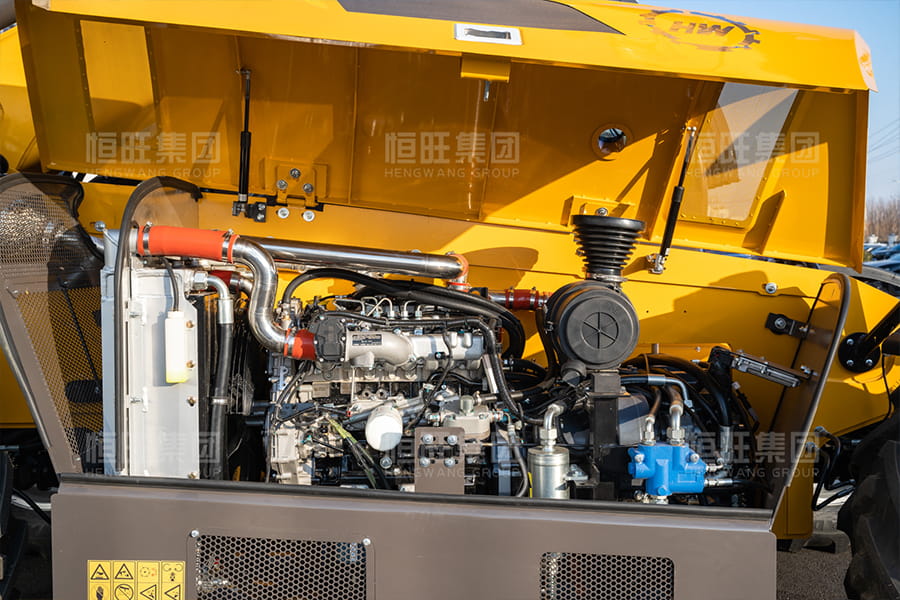

| Engine | Yuchai |
| Power | 66 kW |
| Emission Standard | China Stage III / Stage IV |
| Operating Weight | 8.1 Tons |
| Rated Load Capacity | 3.5 Tons |
| Max. Lifting Height | 7.05 m |
| Overall Dimensions (LWH)(Including Forks) | 6220 x 2340 x 2400 mm |
| Overall Dimensions (LWH)(To Fork Face) | 4970 x 2340 x 2400 mm |
| Hydraulic Oil Capacity | 130 L |
| Fuel Tank Capacity | 120 L |
| Axles | Wet braking axles |
| Transmission | Static shifting (Optional: Power shift / Shifting while driving) |

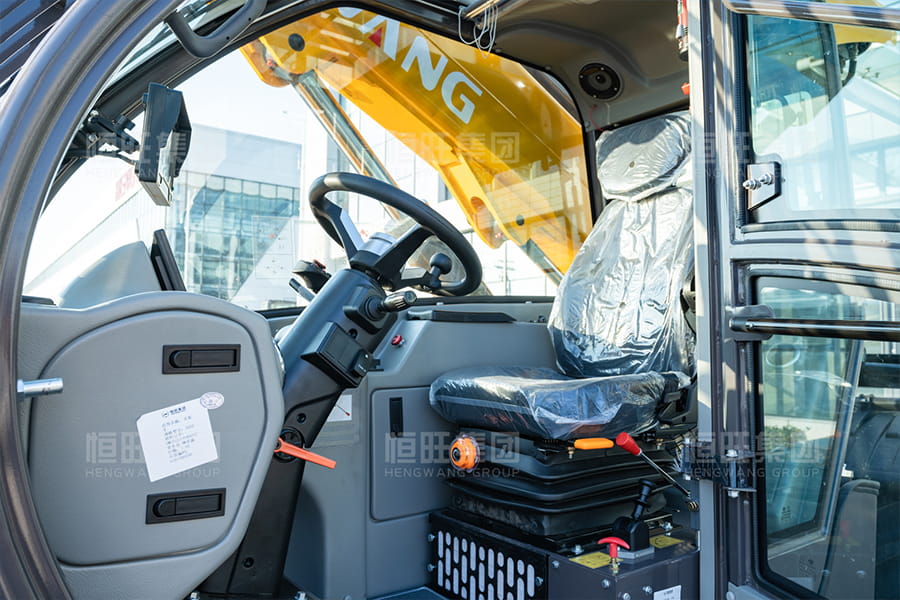

| Cabin | Luxury cabin |
| Display Screen | 10-inch (Optional: 360° panoramic camera system) |
| Hydraulic System | Rexroth / Nuoman |

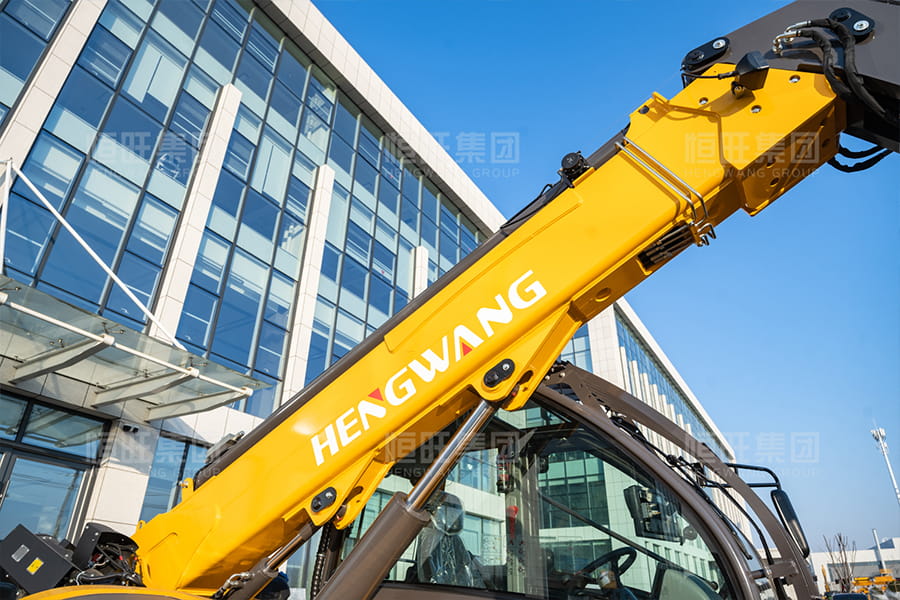

| Telescopic Boom | Hexagonal integrated bending design |
| Boom Material | High-strength structural steel |
| Frame Leveling Function | / |
| Tire Model | 400/80R24 |
| Max. Travel Speed | 31.5 km/h |
| Quick Hitch | Optional |

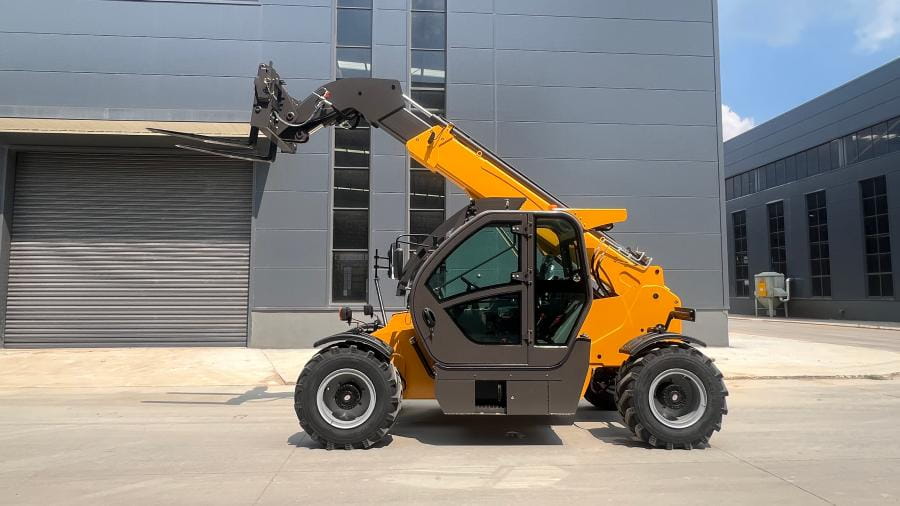

| Model | HW3507-B | HW3507-T |
| Engine | Yunnei YN38GBZ | Yuchai |
| Power | 76 kW | 77.3 kW |
| Emission Standard | National II (China) | National II (China) |
| Operating Weight | 7800 kg | 7750 kg |
| Rated Load Capacity | 3.5 Tons | 3.5 Tons |
| Max. Lifting Height | 7.0 m | 7.0 m |
| Dimensions (LWH) | 4650 x 2200 x 2550 mm | 4650 x 2200 x 2550 mm |
| Hydraulic Oil Capacity | 170 L | 170 L |
| Fuel Tank Capacity | 195 L | 195 L |
| Axles | Air brake axles (Dry type) | Air brake axles (Dry type) |
| Cabin | Luxury cabin | Luxury cabin |
| Transmission System | Hydraulic torque converter | Domestic hydrostatic drive |
| Drive Mode | Electronic control + Mechanical | Full electronic control |
| Gears | F4 / R4 | F2 / R2 |
| Telescopic Boom | 2-Section | 2-Section |
| Boom Material | BS1000 Special steel | BS1000 Special steel |
| Forks | 1220 mm Sliding pallet forks | 1220 mm Sliding pallet forks |
| Frame Leveling | None | None |
| Tire Model | 16/70-20 (Shuangma Brand) | 400/70R24 Tubeless (Advance Brand) |
| Max. Travel Speed | 35 km/h | 35 km/h |
| Quick Hitch | Hydraulic quick coupler | Hydraulic quick coupler |
| Hydraulic Operation | Pilot control | Electro-hydraulic load-sensing proportional system |
| Engine Hood | Fully-opening stamped steel | Fully-opening stamped steel |
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
Fill in the form to get the latest product parameters and the best price.
