Engine: Yuchai
Rated Load: 4 Tons
Max. Lifting Height: 7 Meters
Rated Load: 4 Tons
Max. Lifting Height: 7 Meters

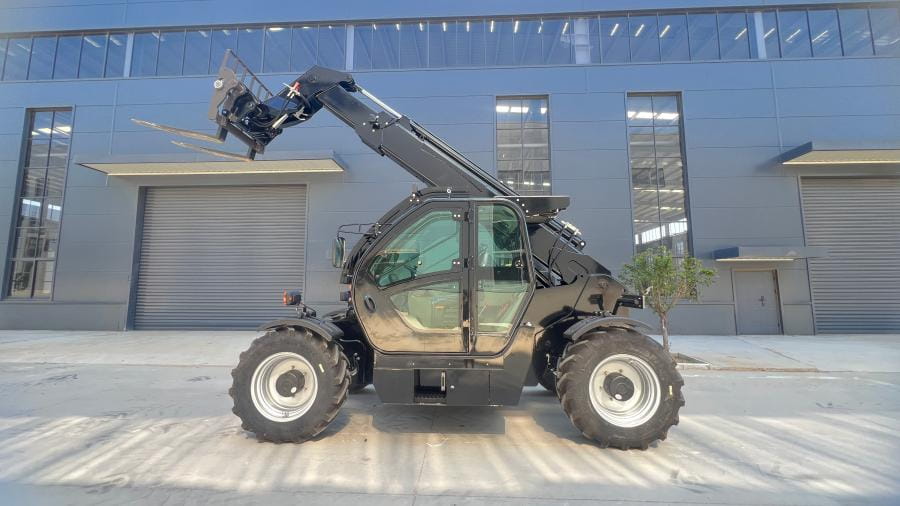

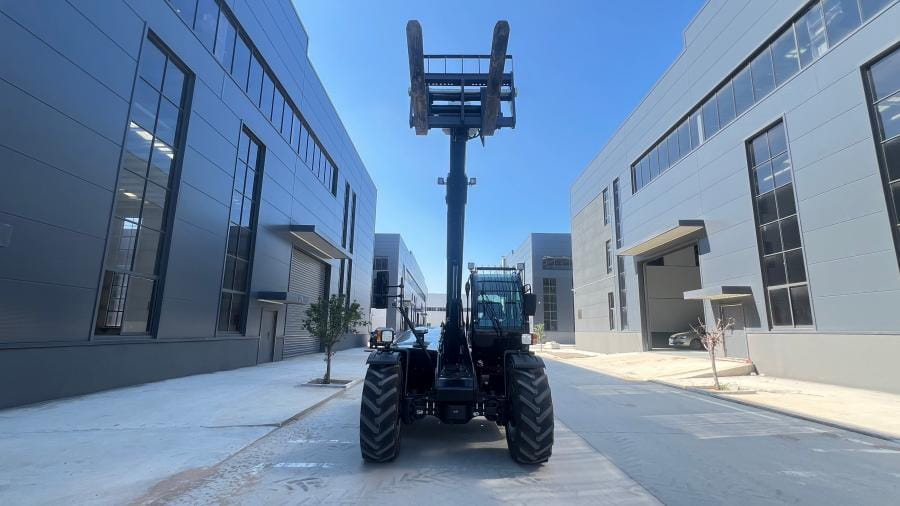

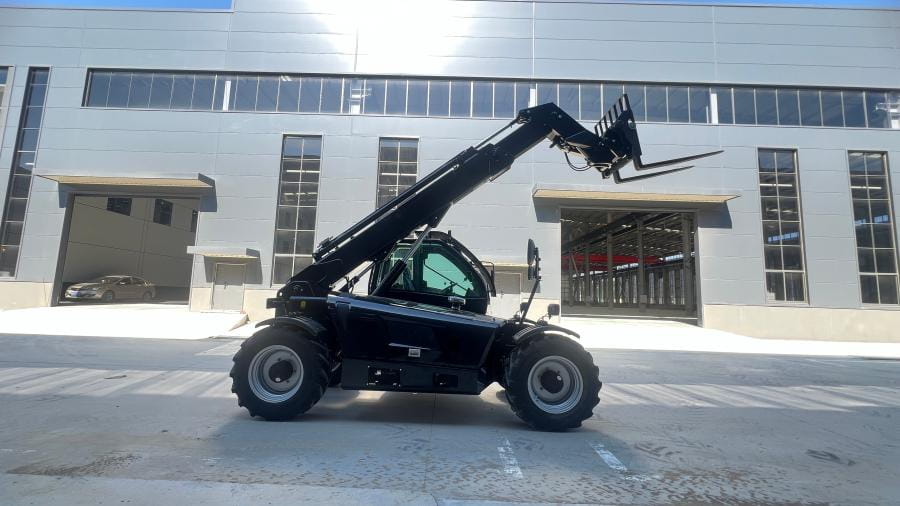

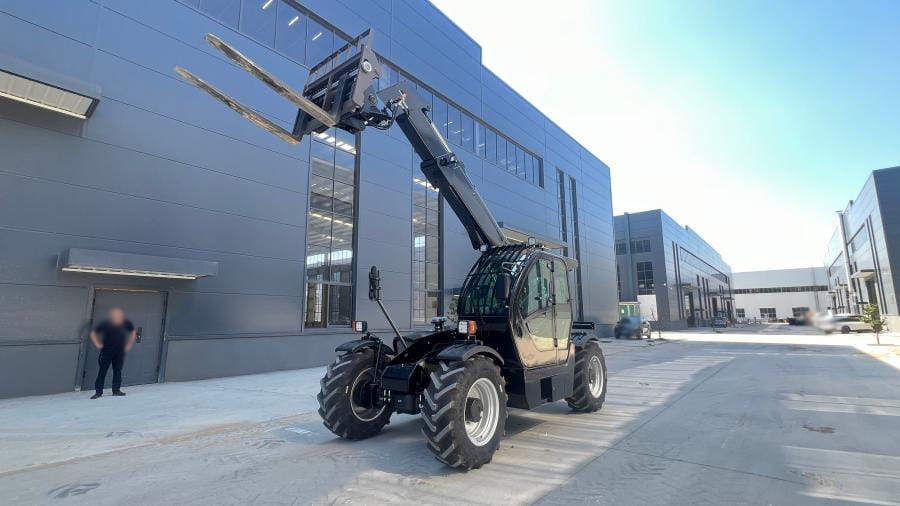

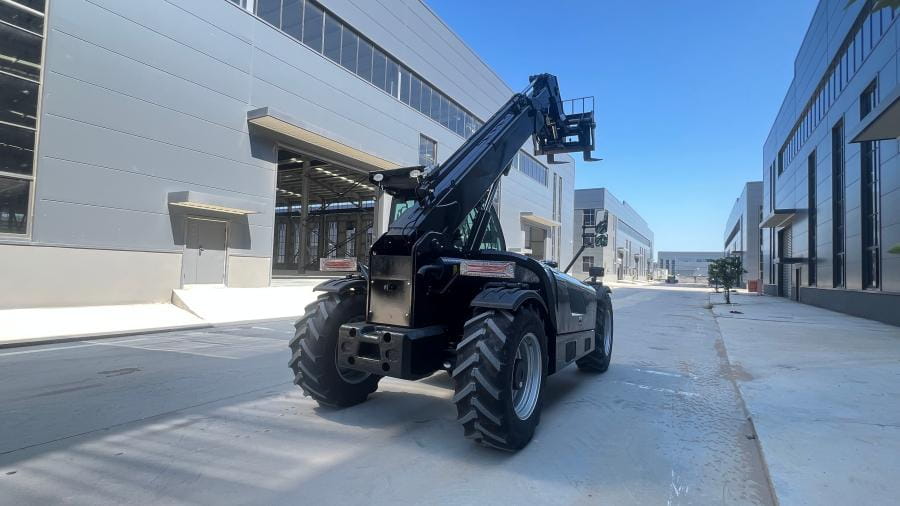

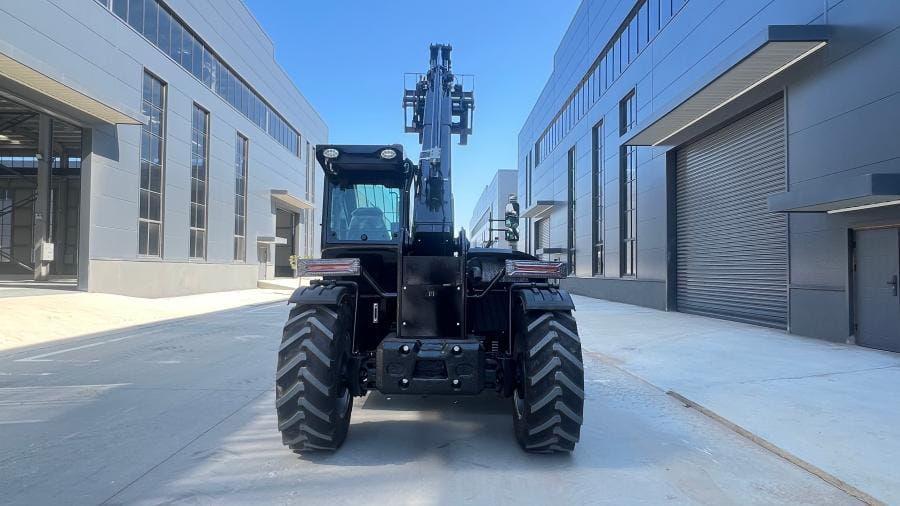

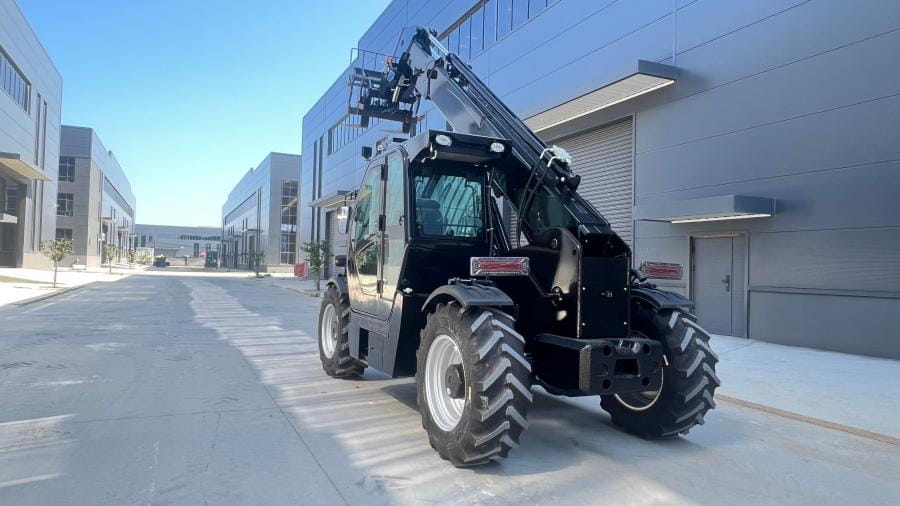

| Model | HW4007-B |
| Engine | Yuchai |
| Power | 85 kW |
| Emission Standard | National II (China) |
| Operating Weight | 8100 kg |
| Rated Load Capacity | 4.0 Tons |
| Max. Lifting Height | 7.0 m |
| Dimensions (LWH) | 4650 x 2200 x 2550 mm |
| Hydraulic Oil Capacity | 170 L |
| Fuel Tank Capacity | 195 L |
| Axles | Air brake axles (Dry type) |
| Cabin | Luxury cabin |
| Transmission System | Hydraulic torque converter |
| Drive Mode | Electronic control + Mechanical (High/Low speed) |
| Gears | F4 / R4 (4 Forward / 4 Reverse) |
| Telescopic Boom | 2-Section |
| Boom Material | BS1000 High-strength manganese steel |
| Forks | 1220 mm Floating/Sliding pallet forks |
| Frame Leveling Function | None |
| Tire Model | 400/70R24 Tubeless tires (Advance Brand) |
| Max. Travel Speed | 35 km/h |
| Quick Hitch | Hydraulic quick coupler |
| Hydraulic System | Electro-hydraulic load-sensing proportional system |
| Engine Hood | Fully-opening stamped steel hood |
| Remarks | Cast iron counterweight |
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
