Lifting Weight: 13000Kg
Lifting Height: 30m、35m
Power: 100kw
Lifting Height: 30m、35m
Power: 100kw

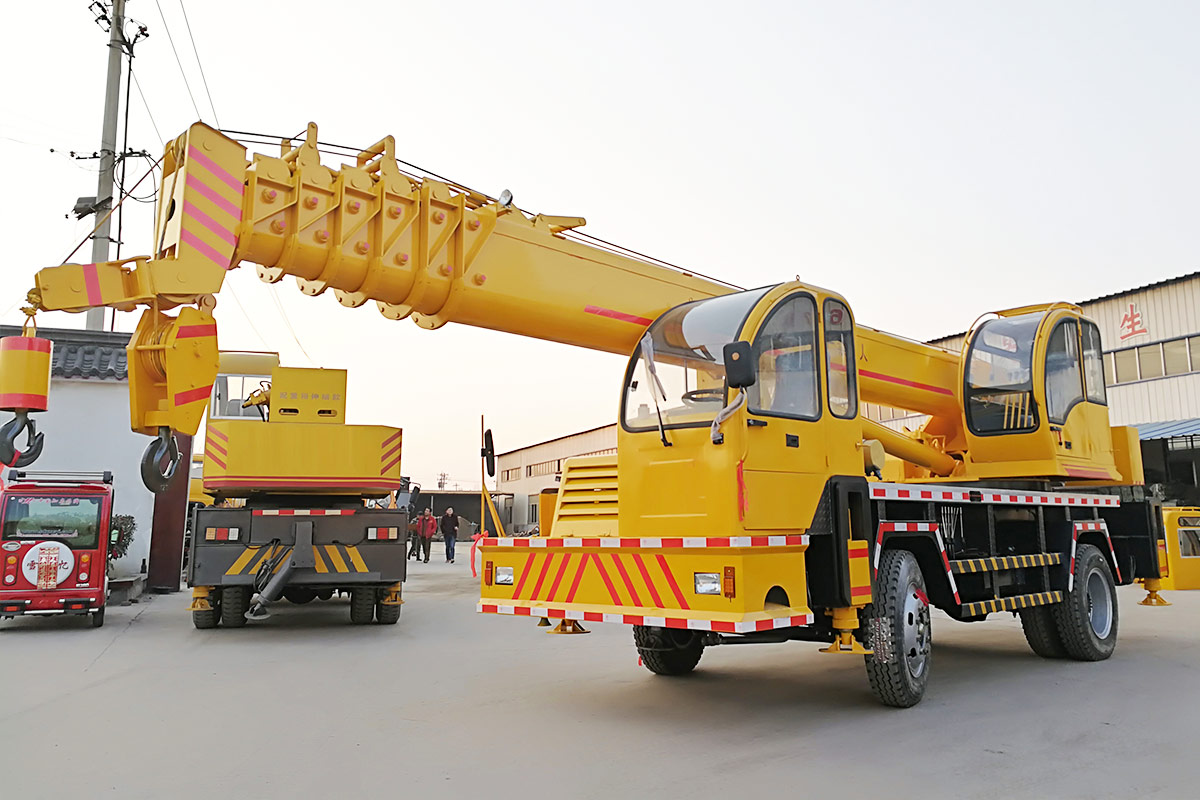

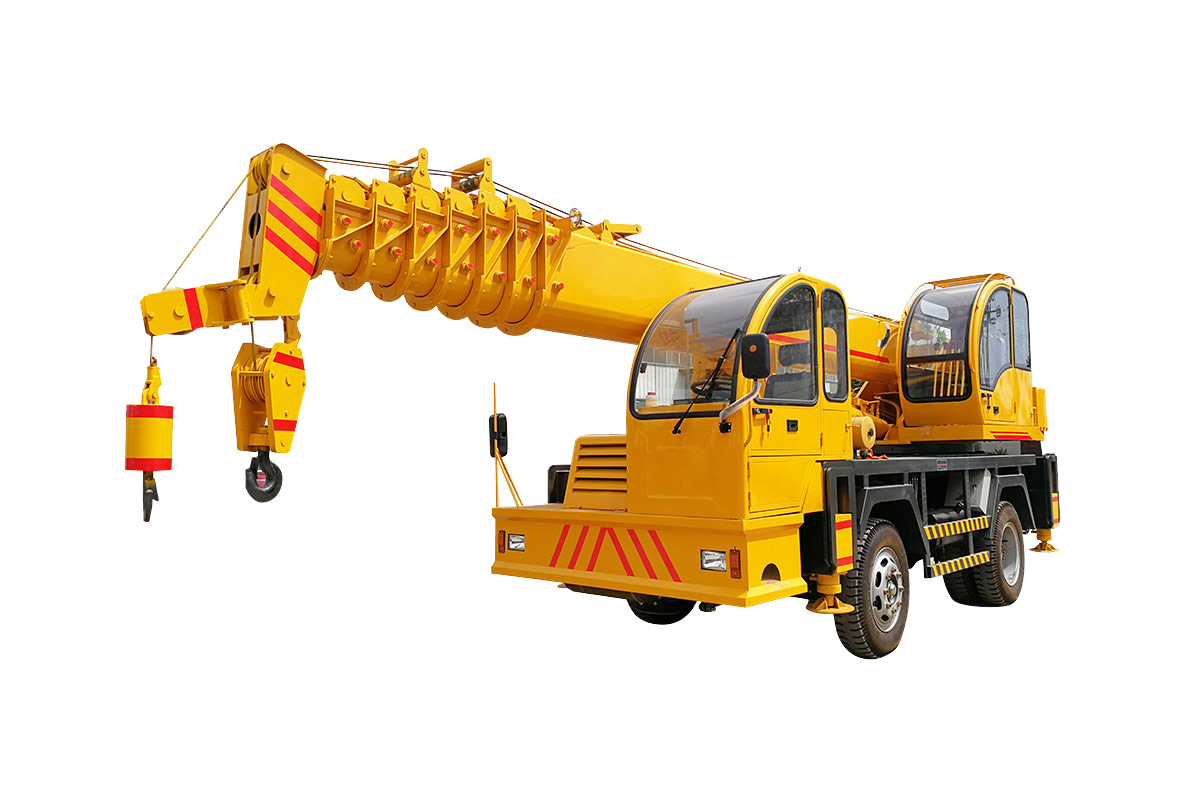

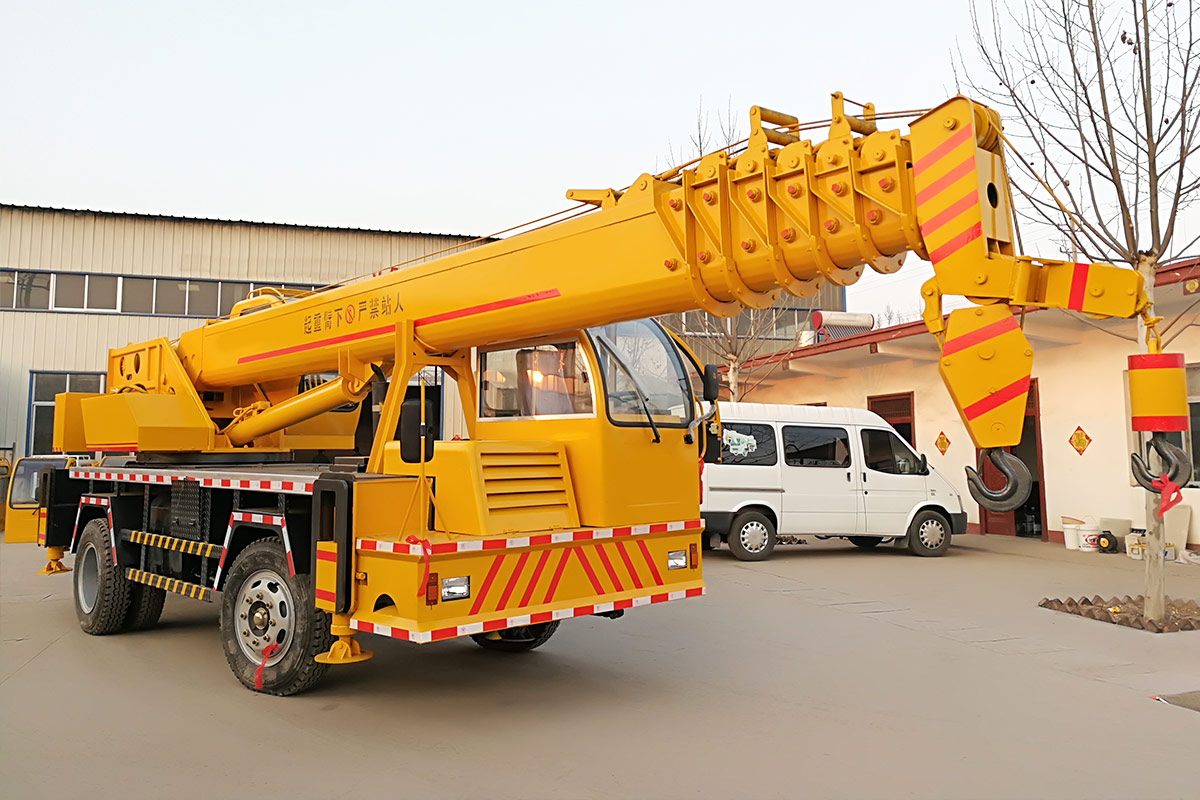

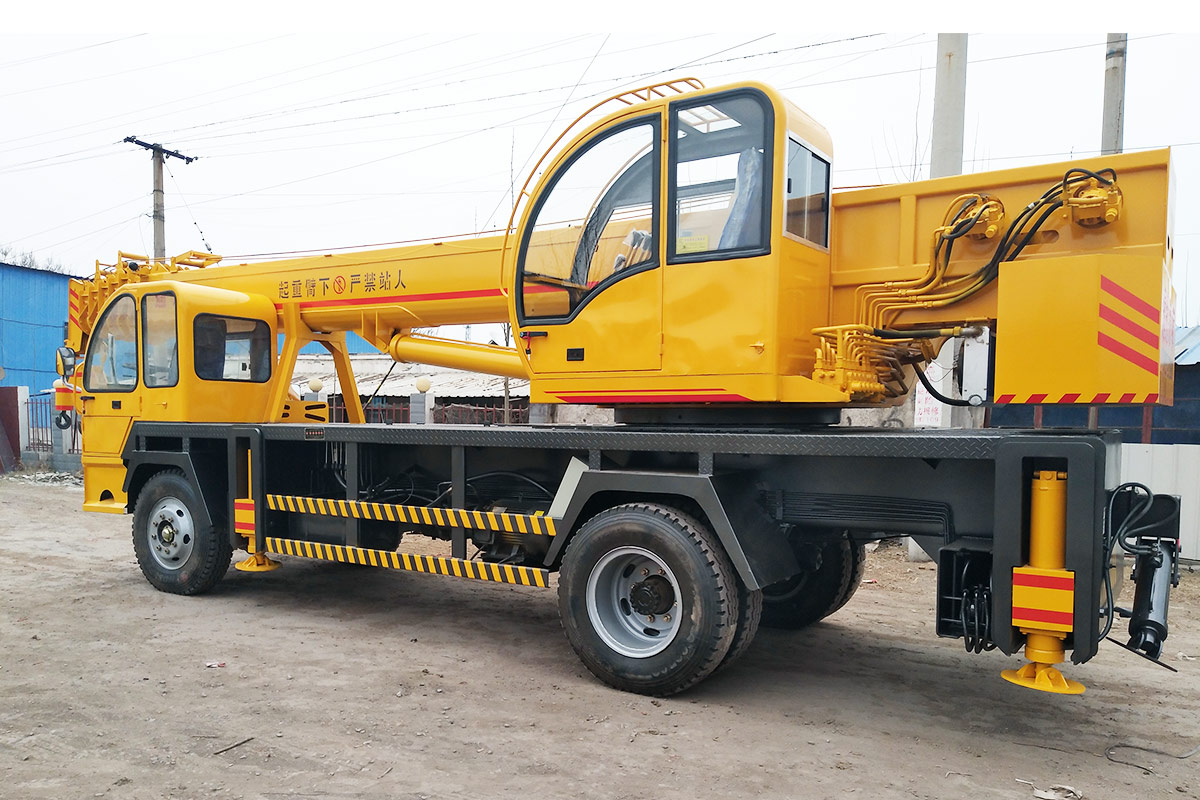

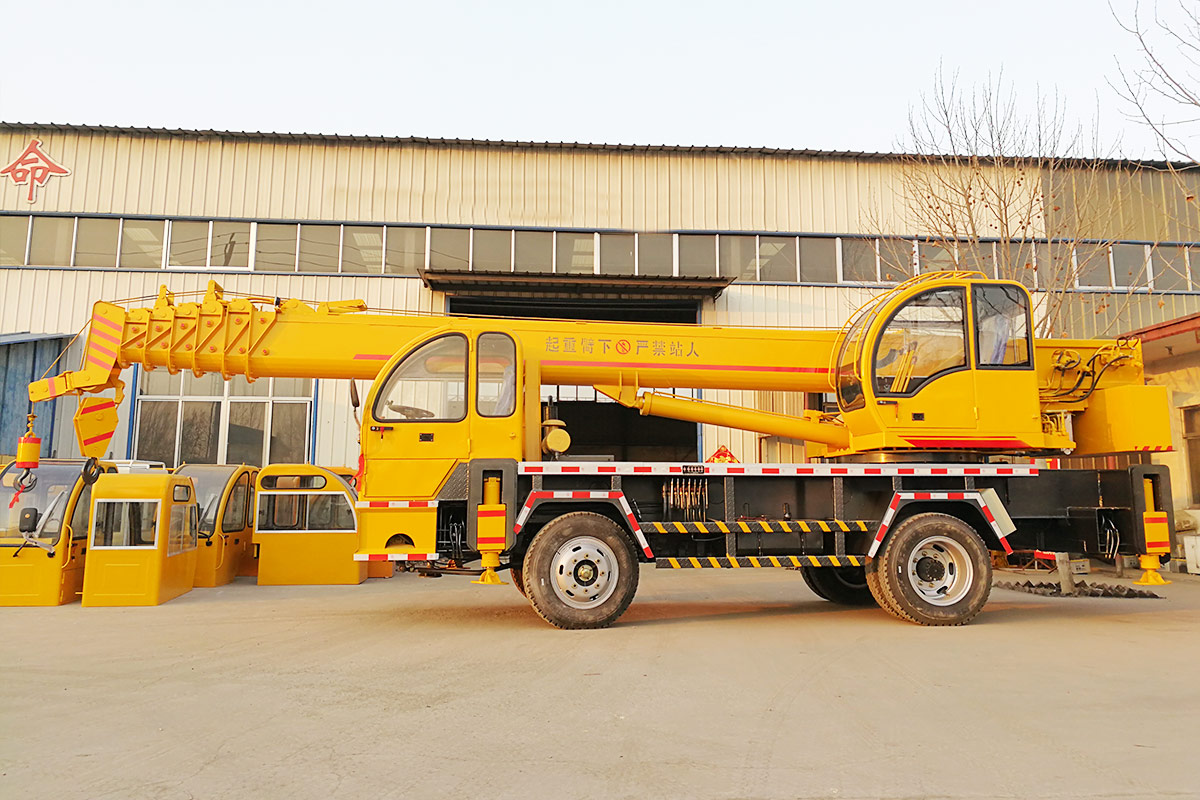

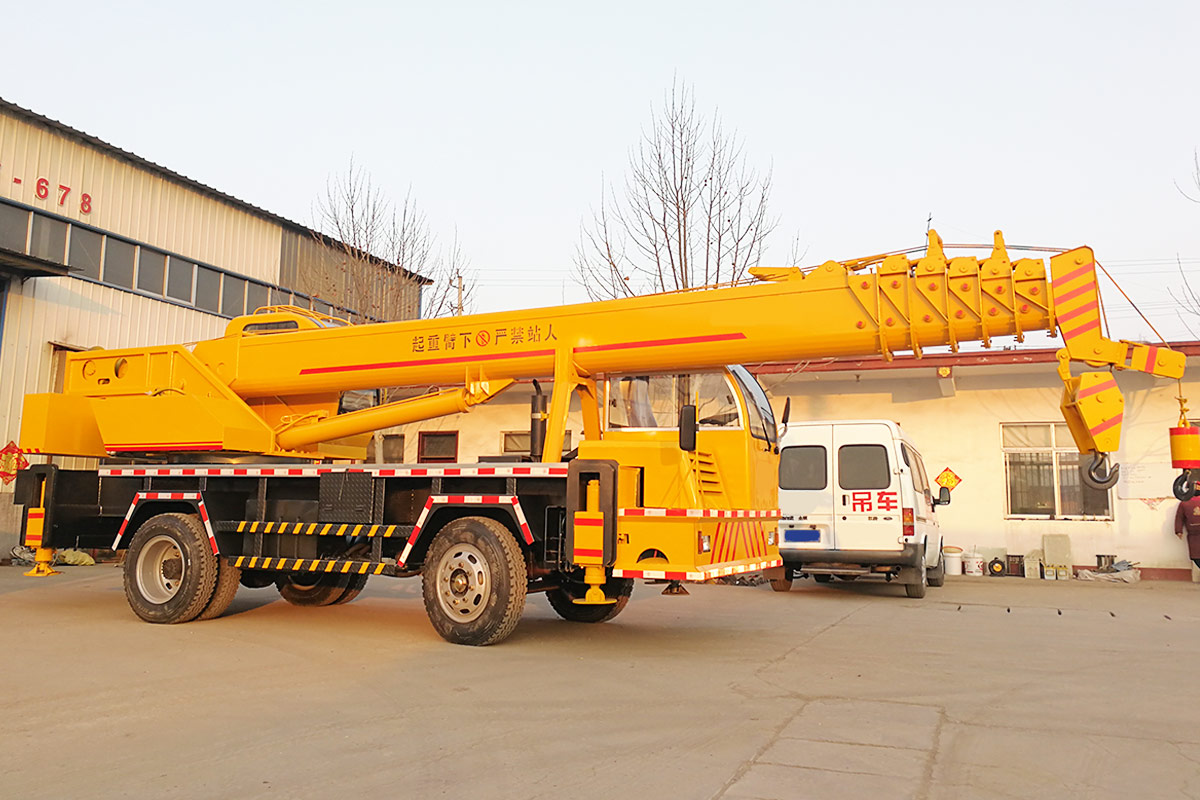

Crane is a kind of machine widely used in ports, workshop, electrical and constructional site. The crane is a general name of hoisting machine. Frequently called crane is auto crane, crawler crane and tyre crane. Crane is used in hoisting equipment, emergency rescue, lifting, machinery, the rescue.
1.Leading performance: the boom length in full extension is 32m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.
2.The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
3.Six unique technologies supply the quality assurance, and make the products keep a high value.
4.The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.
| Model | HWQY12T |
| Weight | 13000kg |
| Overall Dimensions | 8.5m*2.1m*3.05m |
| Wheelbase | 2.8m/3.1m (optional) |
| Max. loading capacity | 12000kg |
| Max. lifting height | 30m、35m |
| Engine model | 4105 |
| Gearbox model | 6-speed |
| Power (kw hp) | 100kw 140hp |
| Emission Standards | China Ⅲ |
| Braking System | Air brake |
| Steering machanism | Hydraulic Power Steering |
| Boom section number | 5m X 8/6m X 8 |
| Main hoisting mechanism | 12T |
| Outrigger | 6 full hydraulic outriggers (single section) |
| Outrigger span (mm) | 6500mm |
| Protective device | two way hydraulic control |
| Number of work lights | 2 |
| Hydraulic pump | single pump |
| Oil and electricity dual use | 11kw IP6 pole motor |
| Tire | 825-20 |
