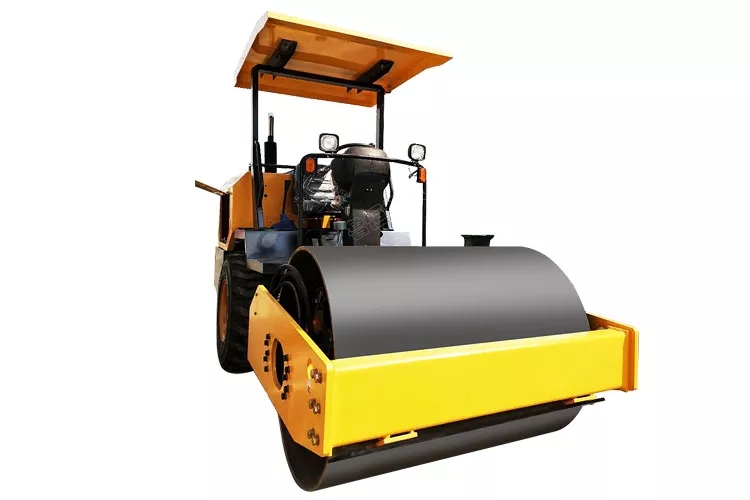

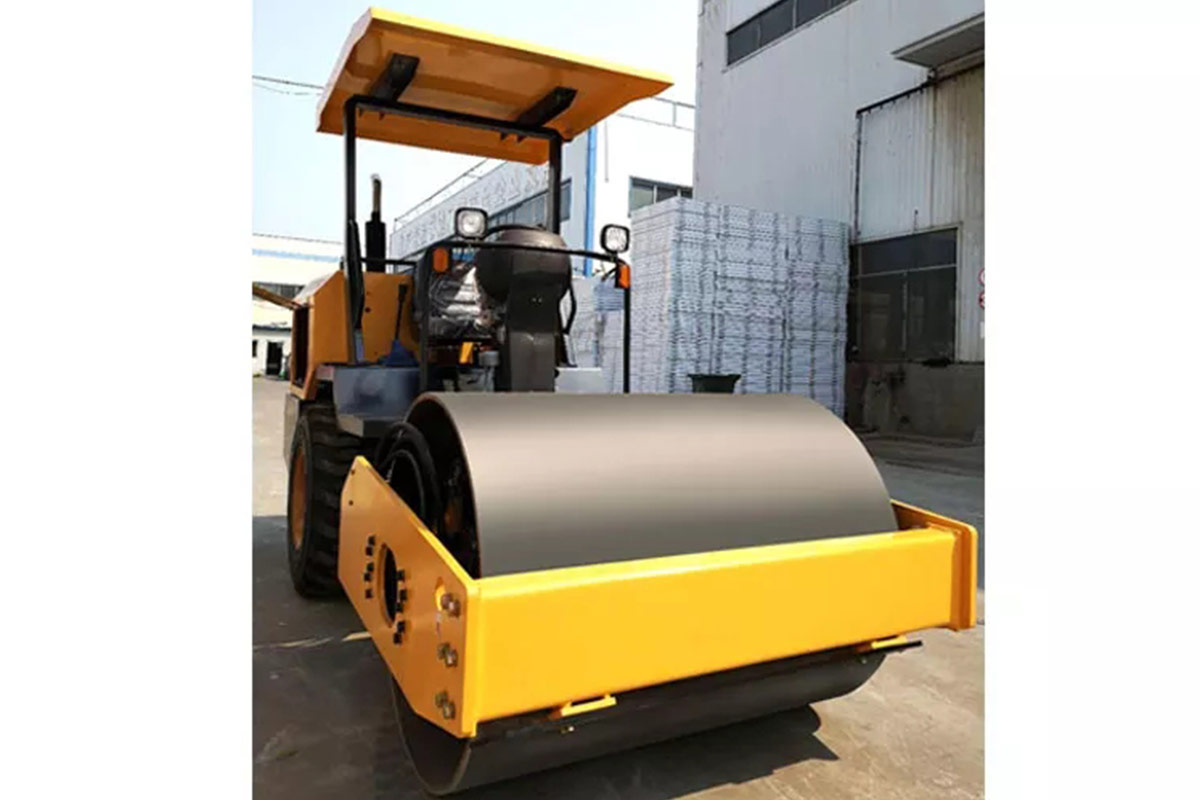

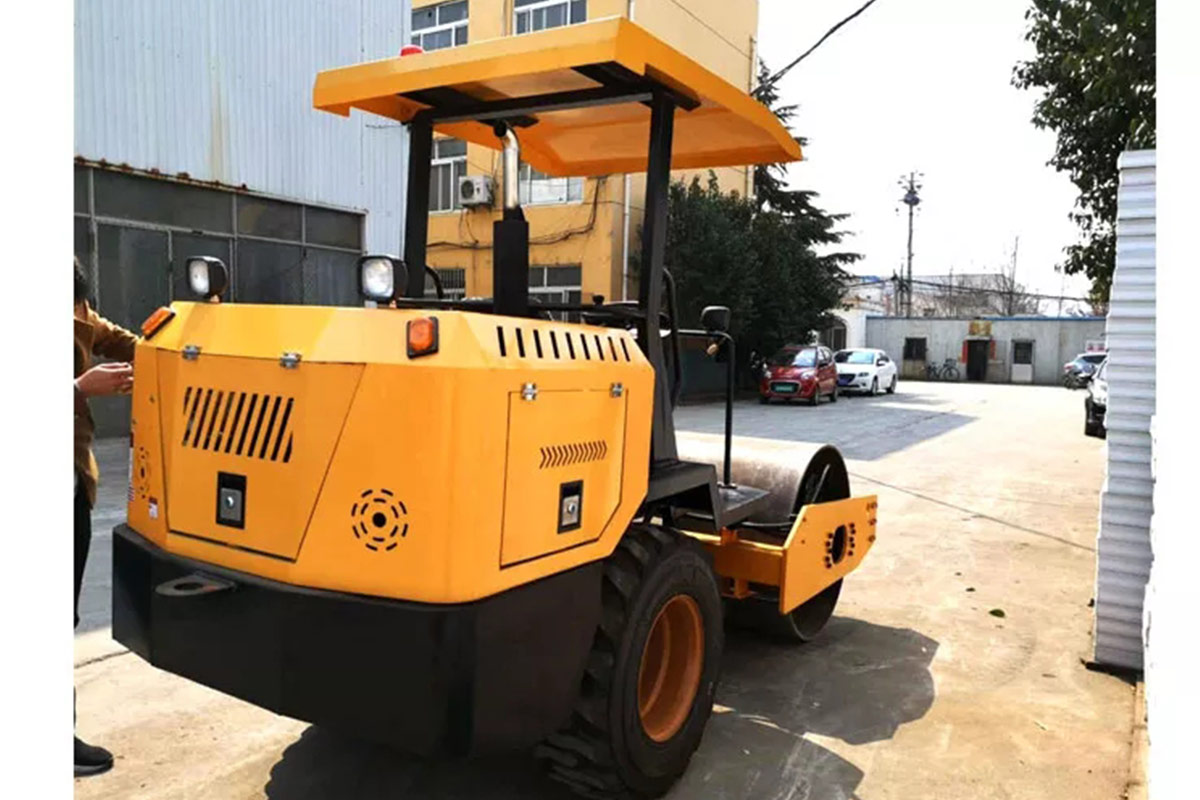

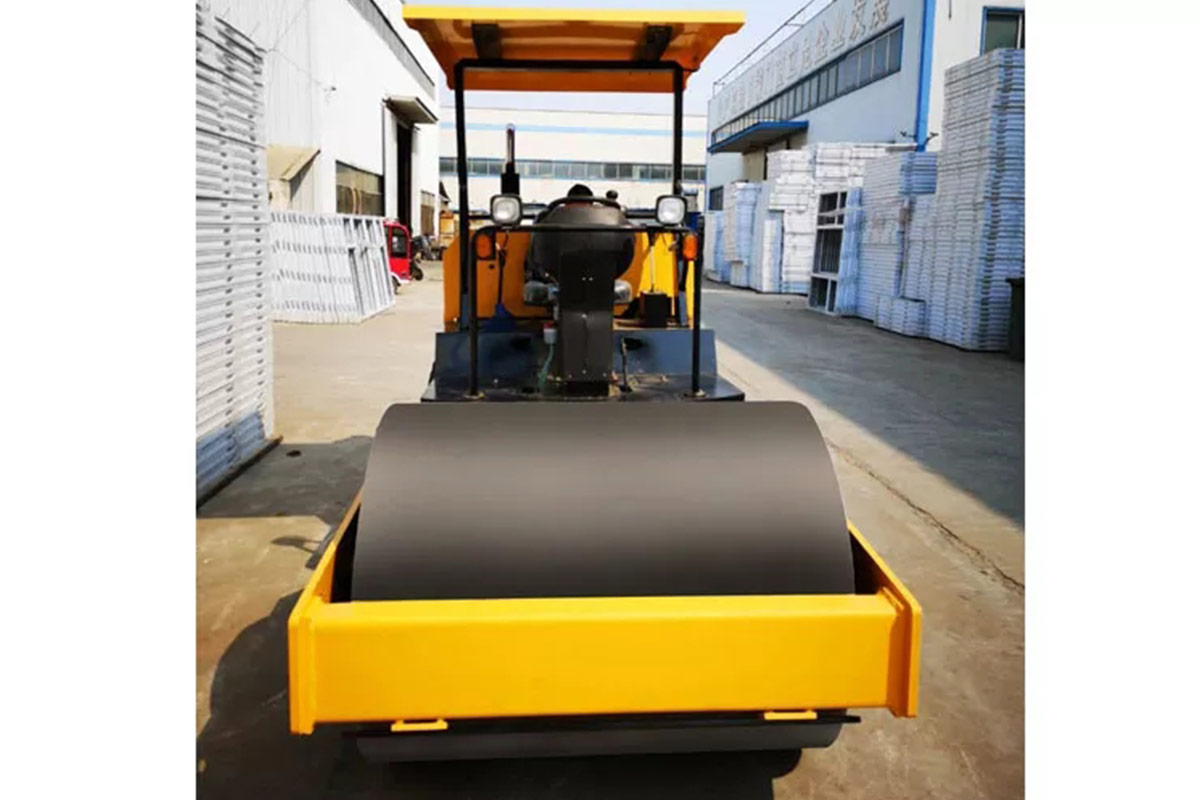

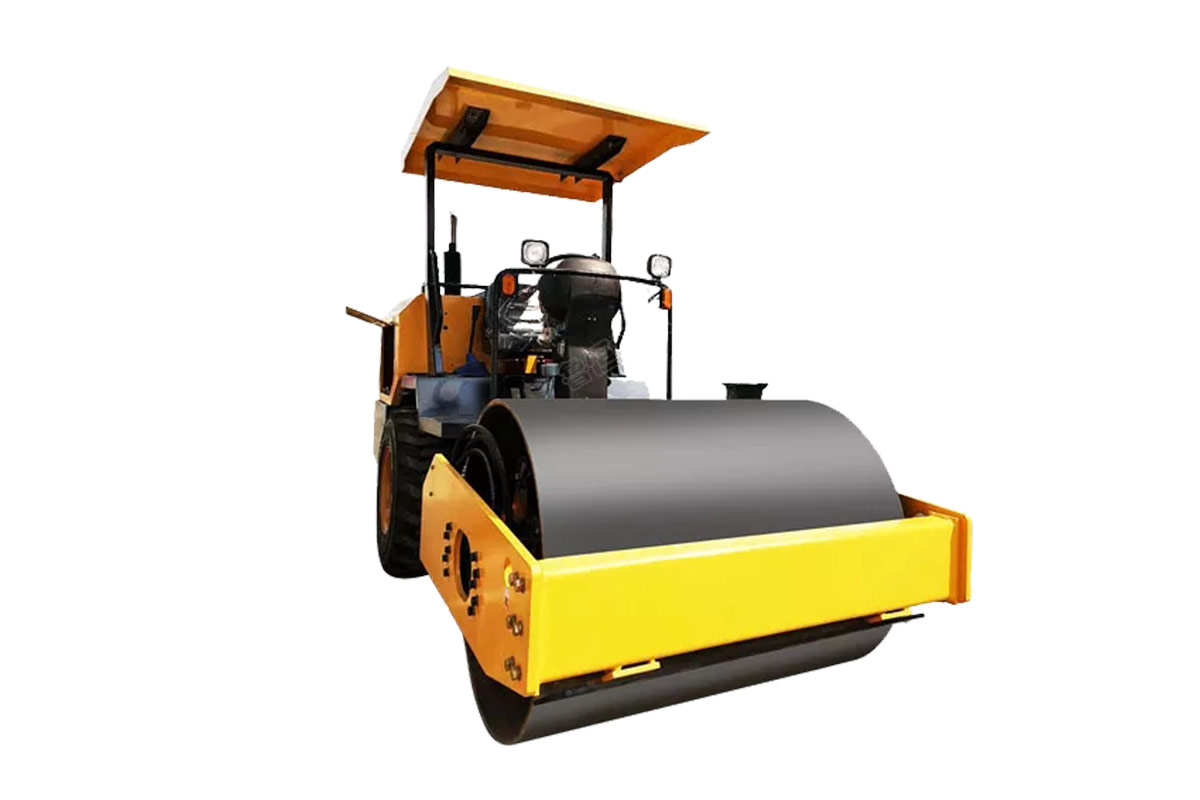

HW-5.0T single drum road roller

  • Factory direct
  • One-year warranty
Engine power: 40Kw
Operating weight: 5000kg
Steel wheel size: φ1000*1450mm
Product Detail



Model

HW-5.0T

Working weight (kg)

5000

Engine model

CF490B

Engine power (kw)

40

Walking speed (km/h)

1-3-5-12km/h

Gradeability (%)

30

Vibration frequency (Hz)

46

Dimensions (mm)

4450*1650*2650

Steel wheel size (mm)

φ1000*1450

Drive method

Mechanical gear---4 gear high and low speed

The main application of this equipment is the compaction and leveling of ditches, roads, and sports fields, and it can also be used for compacting asphalt pavement.


1. It has a small working radius, allowing it to operate in narrow areas, making it suitable for trench backfilling.

2. It is equipped with a HONDA gasoline engine or a well-known diesel engine, delivering superior performance and easy starting.

3. It features an imported hydraulic drive unit from an internationally renowned brand, offering stepless speed change, forward and backward movement, and hydraulic steering.

4. The motor can be started, and the equipment has hydraulic vibration, ensuring easy and convenient operation.
