Power：176 kW
Max. Drilling Depth：600 m
Drilling Diameter：105–550 mm
Max. Drilling Depth：600 m
Drilling Diameter：105–550 mm

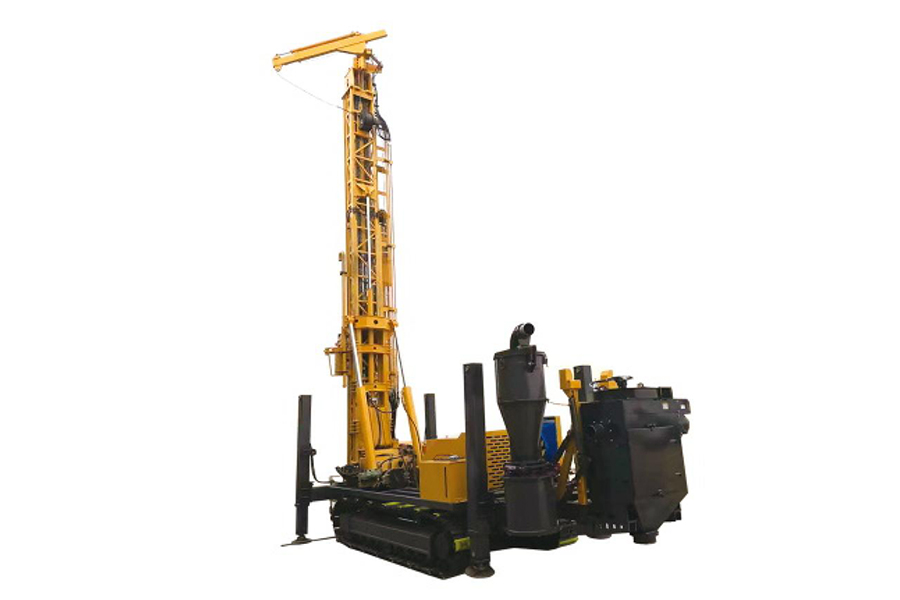

| Model | HW-RC800 |
| Engine | Weichai |
| Power | 176 kW |
| Max. Drilling Depth | 600 m |
| Drilling Diameter | 105–550 mm |
| Working Air Pressure | 1.6–8 MPa |
| Total Air Consumption | 16–96 m³/min |
| Drill Rod Length | 6 m |
| Recommended Drill Rod Diameter | Φ114 / Φ127 |
| Recommended RC Dual-Wall Drill Rod Diameter | Φ114 / Φ127 |
| Axial Pressure | 11 t |
| Lifting Force | 47 T |
| Slow Feed Speed | 29 m/min |
| Fast Feed Speed | 42 m/min |
| Max. Rotation Torque | 18000 / 9000 N·m |
| Max. Rotation Speed | 0–70 r/min; 0–140 r/min |
| Auxiliary Winch Lifting Force | 2.5 T |
| High Outrigger Stroke | 1.7 m |
| Drilling Efficiency | 10–35 m/h |
| Travel Speed | 5 km/h |
| Gradeability | 21° |
| Machine Weight | 17 t |
| Dimensions | 10.5 × 2.25 × 3.3 m |
| Suitable Rock Conditions | Loose layers and bedrock |
| Drilling Method | Top-drive hydraulic rotation and DTH (Down-The-Hole) percussion |
| Matched Impactor | Medium and high air pressure series |

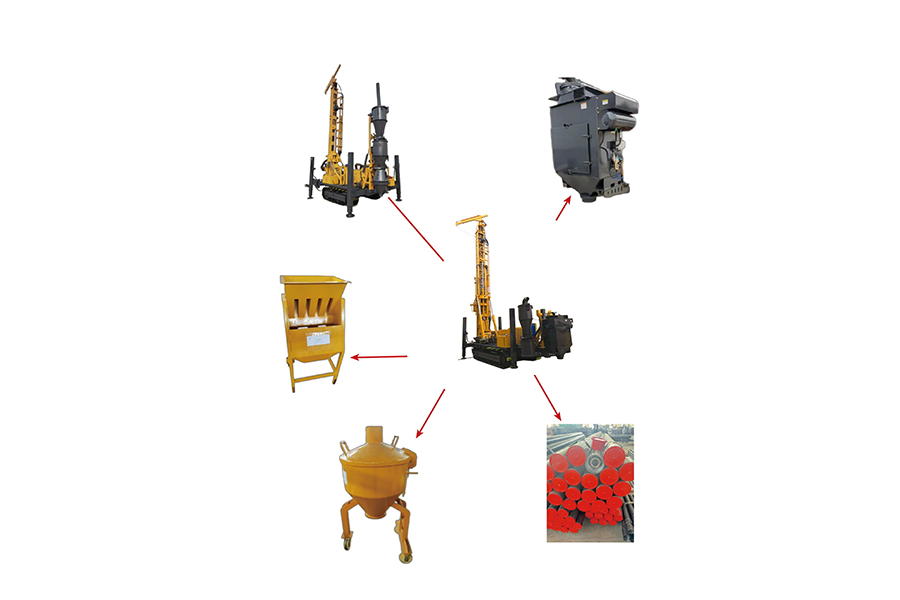

| Optional Accessories | Mud pump, centrifugal pump, generator |
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
