Drilling depth:1000-2000-2500(m)
Rated speed:2400(rpm)
weight:12.7(T)
Rated speed:2400(rpm)
weight:12.7(T)
Crazy Sale Day: Submit the form to get order discounts and coupons!

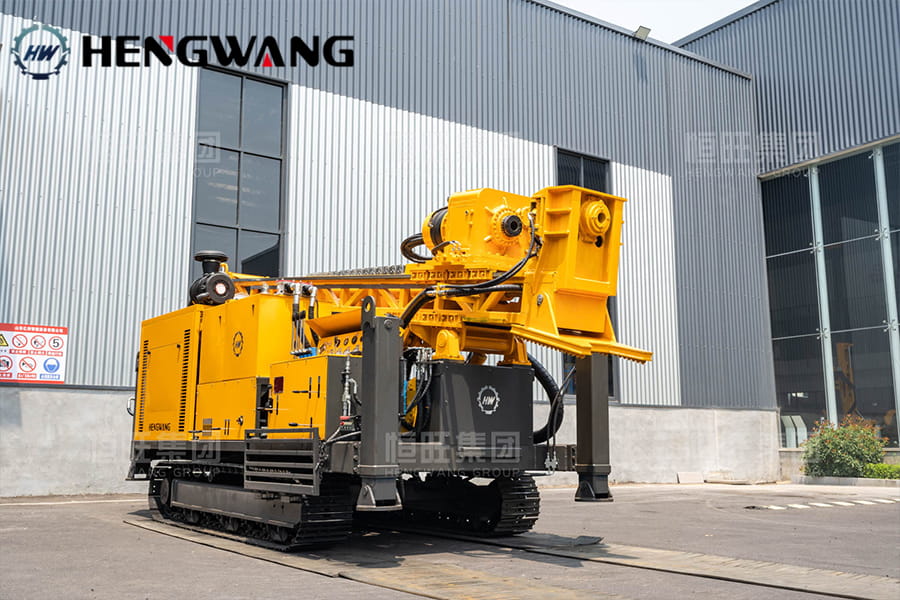

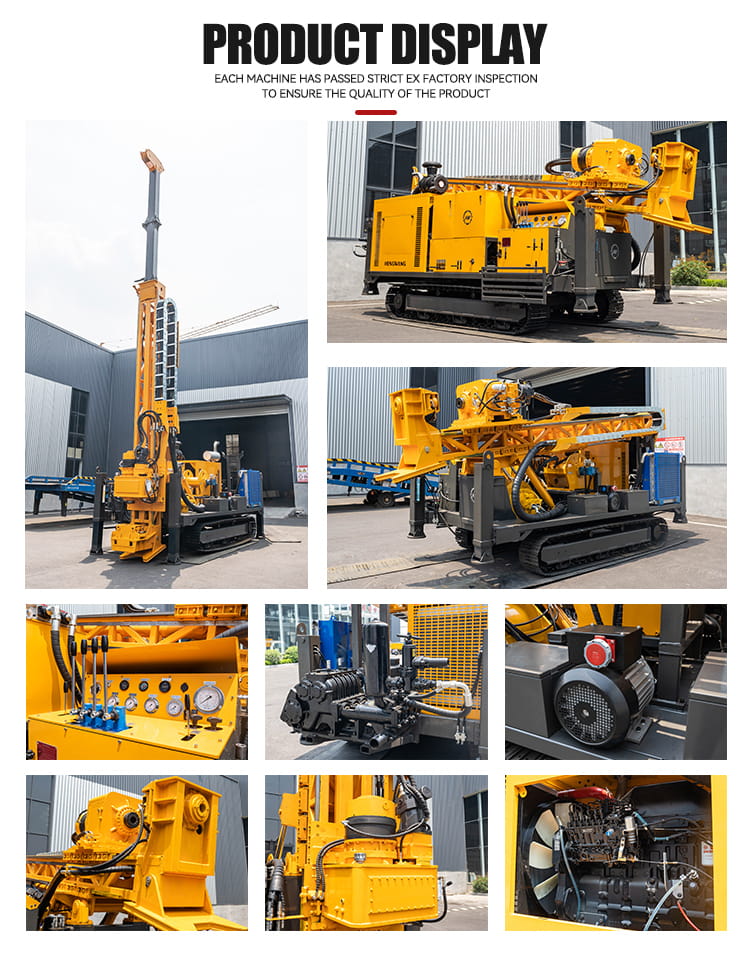

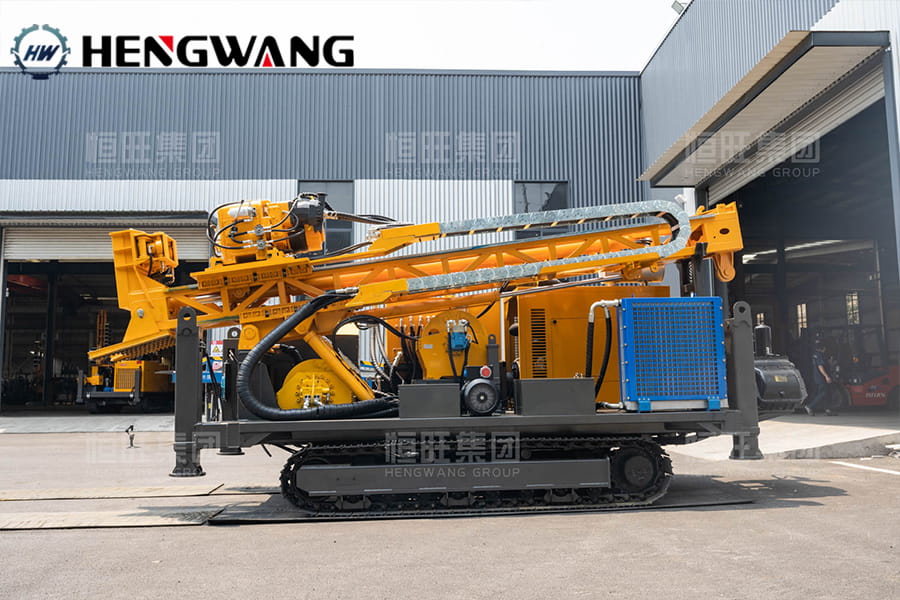

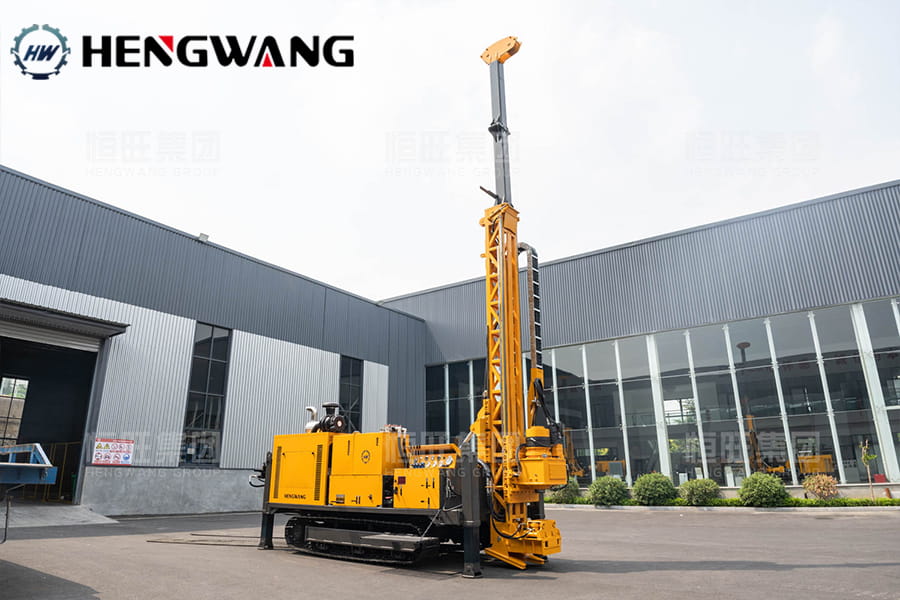

| model | HW-TDX-2000GL |
| Drilling ability | |
| caliber | HTW-NTW-BTW |
| depth | 1000-2000-2500(M) |
| Hydraulic system | |
| preset pressure | 28(MPA) |
| Rated flow | 380(L/nin) |
| Cooling type | Air cooling + Water cooling |
| Engine | |
| Brand | Yuchai |
| Type | Turbocharged |
| Rated rotary speed | 2400(RPM) |
| Rated power | 162（KW） |

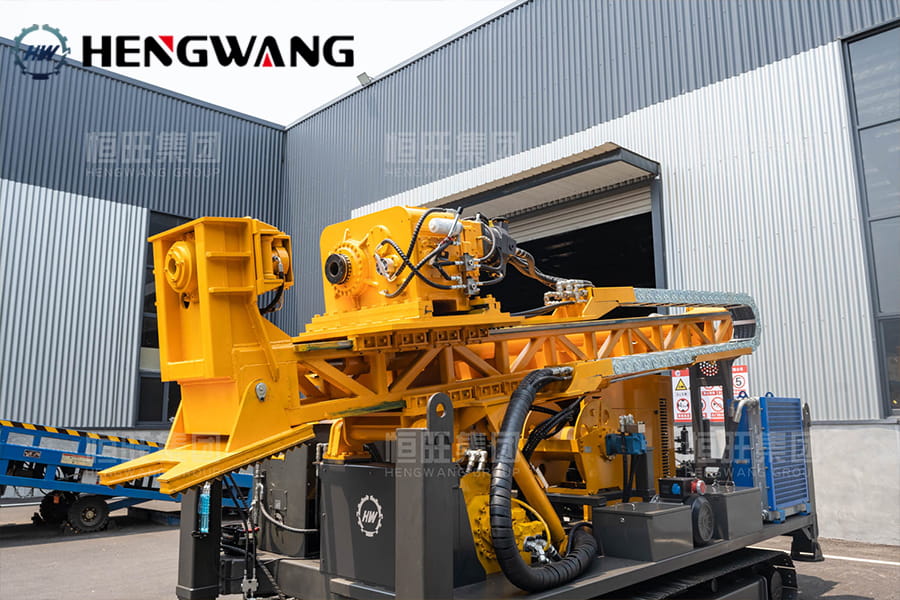

| Power head | |
| Maximum torque | 1000-4000(N.M) |
| Maximum rotary speed | 1300(RPM) |
| Feeding stroke | 3500(MM) |
| Drilling tower | |
| Type | Ground contact integrated tower |
| Drilling angle | 45-90(°) |
| Lifting force | 22(T) |
| Feeding force | 11(T) |
| Winch | |
| Lifting force | 1500(KG) |
| Rotary speed | 100-300(RPM) |
| Wire rope diameter | 6(MM) |
| Rope capacity | 2000(M) |
| walk | |
| type | Manual + remote control |
| Walking speed | 3.5(KM/H) |
| Single machine climbing angle | 45(°) |
| hydraulic mud pump | |

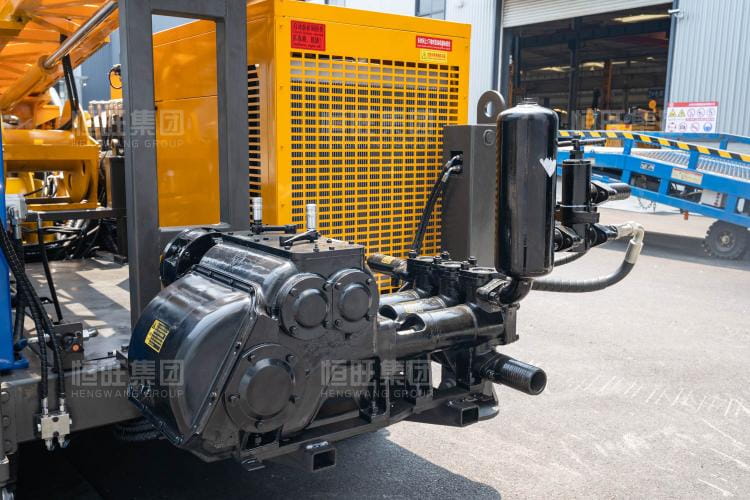

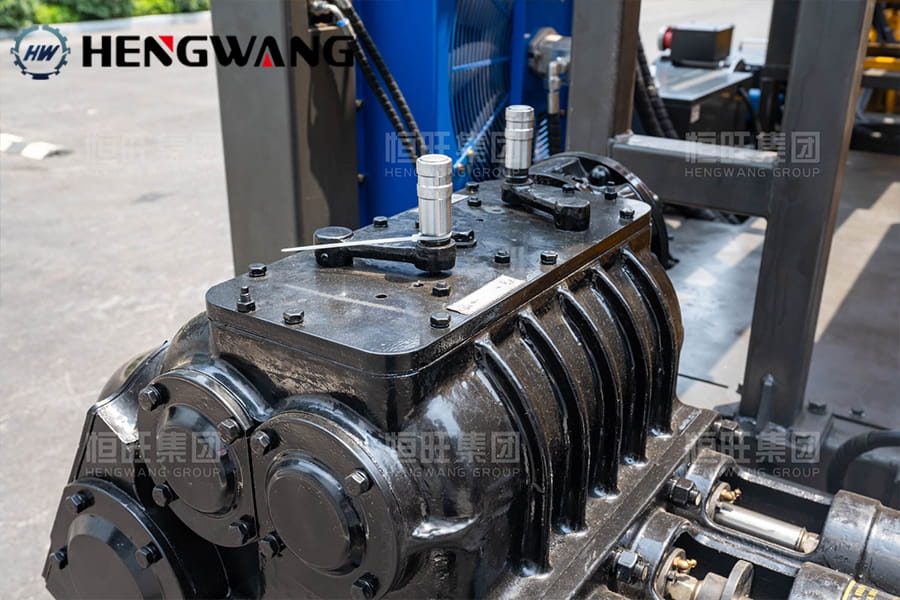

| mud pump | Contains Bw-320 mud pump |
| flow | 0-320(L/in) |
| pressure | 0-10(MPA) |
| Shipping dimensions | 6300*2200*2700(MM) |
| Total Weight | 12.7(T) |

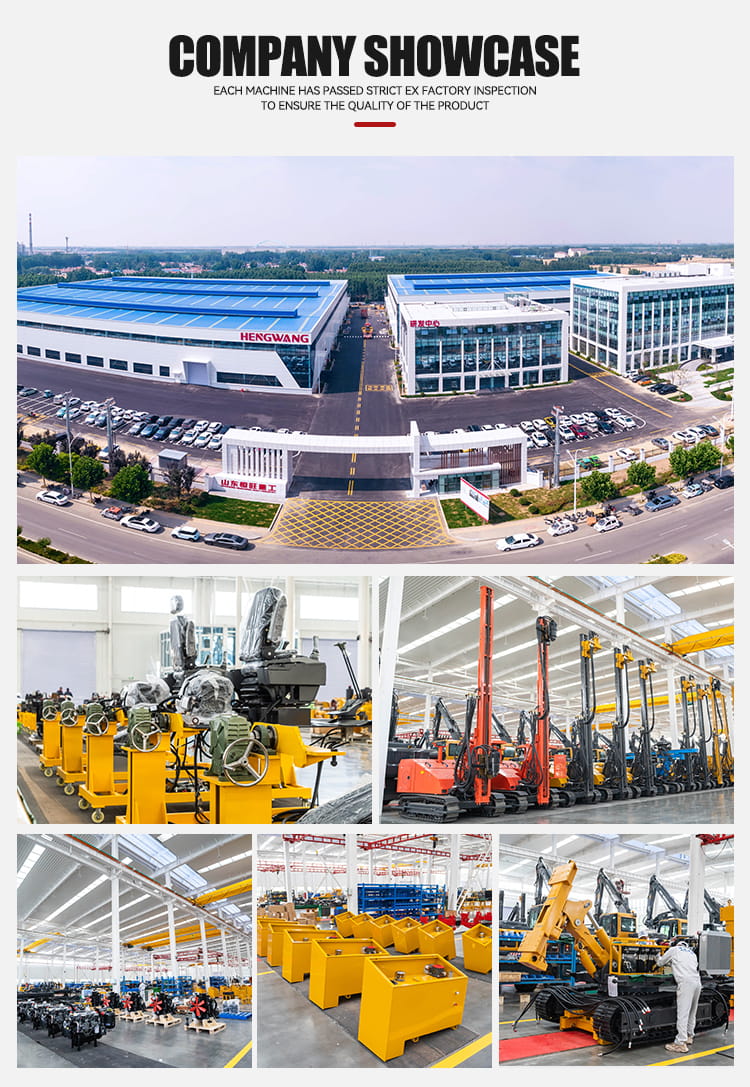

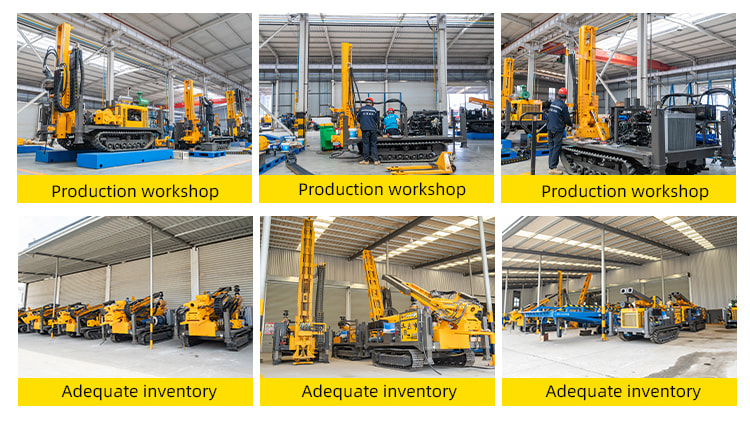

Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
