Rated Power: 73.5KW
Weight: 5820 kg
Drill Diameter: 110-165 mm
Weight: 5820 kg
Drill Diameter: 110-165 mm
Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon
| model | HW930 | HW930-1 |

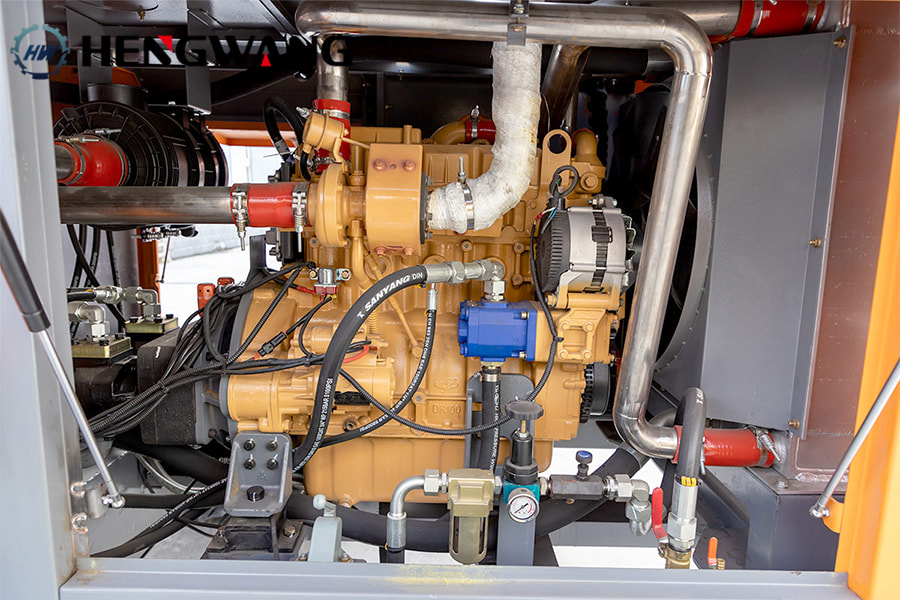

| engine | Yuchai | Yuchai |
| power（KW） | 73.5 | 73.5 |
| Drill pipe type（mm） | φ76*3000 | φ76*3000 |
| Drilling diameter（mm） | φ110-165 | φ110-165 |
| Maximum working torque（N.m） | 3500 | 3500 |
| Swing speed（rpm） | 0-100 | 0-100 |
| Propulsion（kN） | 20 | 20 |
| Lifting power（kN） | 45 | 45 |
| Propulsion method | oil cylinder chain | oil cylinder chain |
| Leveling angle | ±10° | ±10° |
| Walking speed（km/h） | 3 | 3 |
| Gradeability | 30° | 30° |
| gross weight（kg） | 5820 | 6460 |
| Shipping dimensions（mm） | 7370*2360*2560 | 7370*2360*2560 |
| Dust collection method | Dry dust collection | |
| exhaust volume |

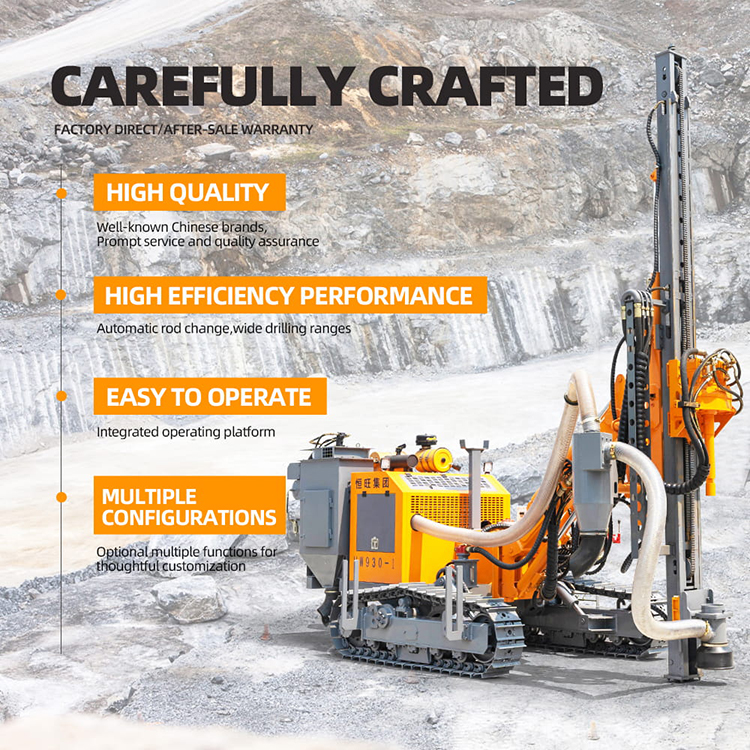

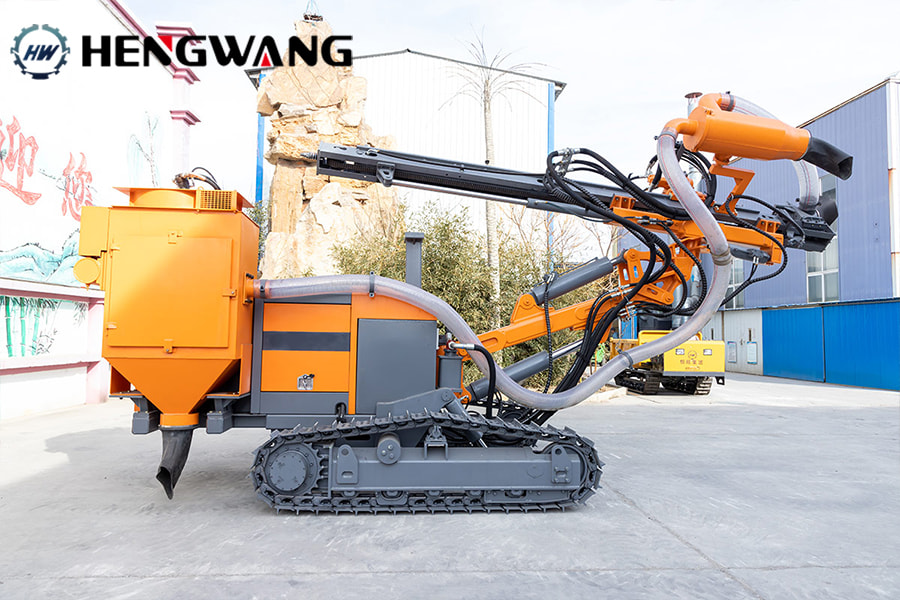

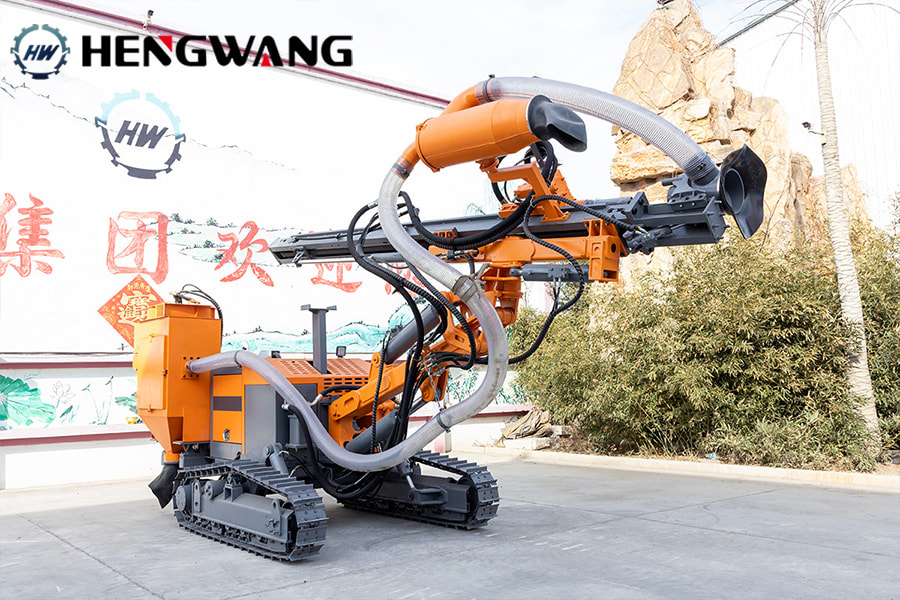

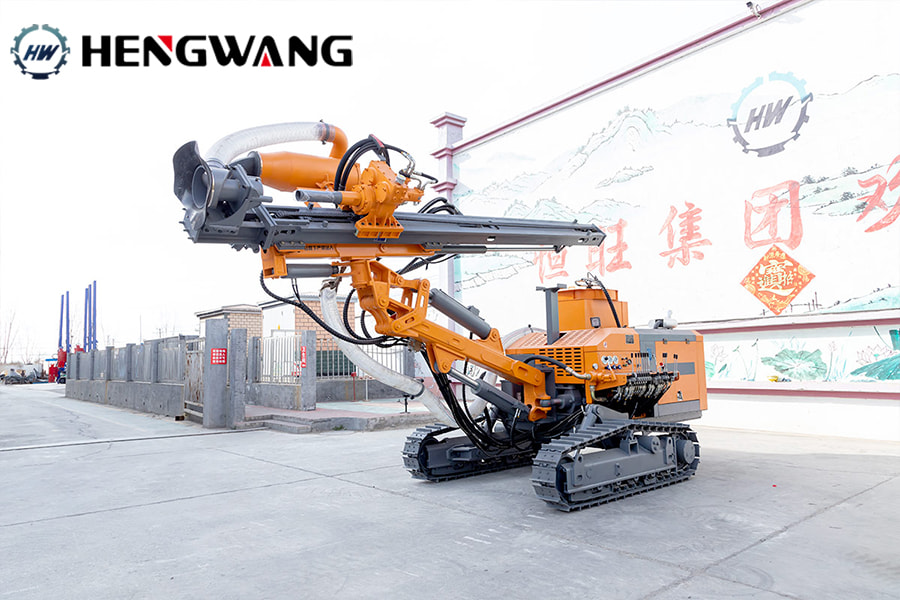

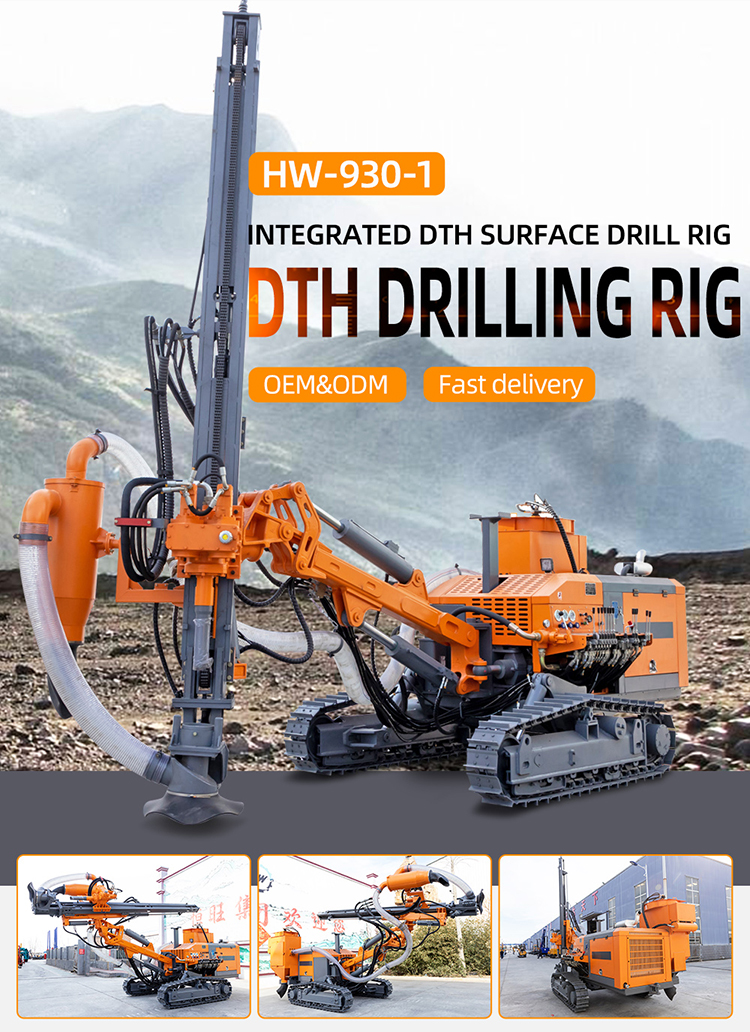

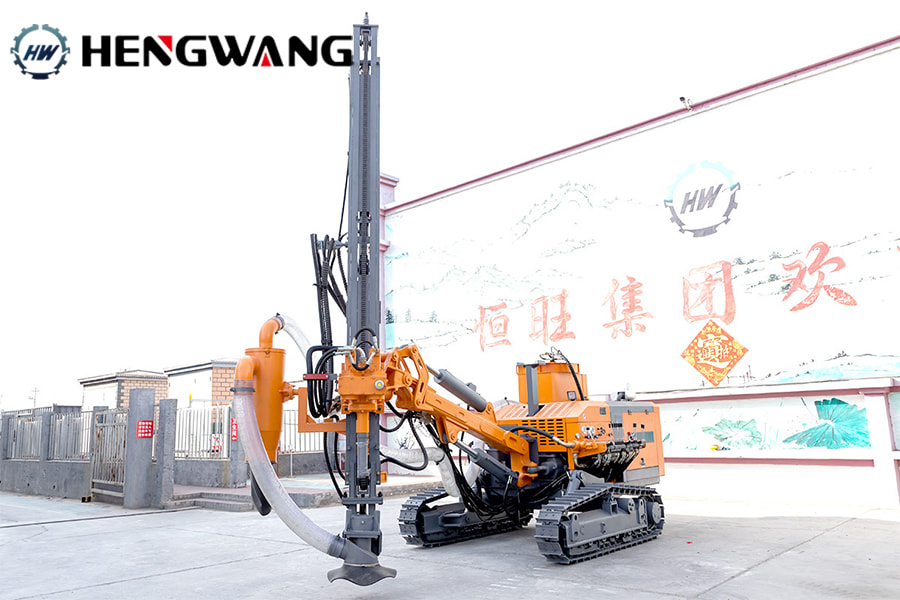

The Hengwang DTH drilling rig represents a new generation of drilling technology. It is designed with a rig body that is precisely matched to the DTH
(Down-The-Hole) bit, resulting in exceptional productivity while minimizing fuel consumption and operating costs.
The rig offers excellent usability, allowing for efficient operation, and features a well-organized component layout for ease of use. With its standard
configuration, the Hengwang DTH drilling rig ensures optimal performance and functionality.

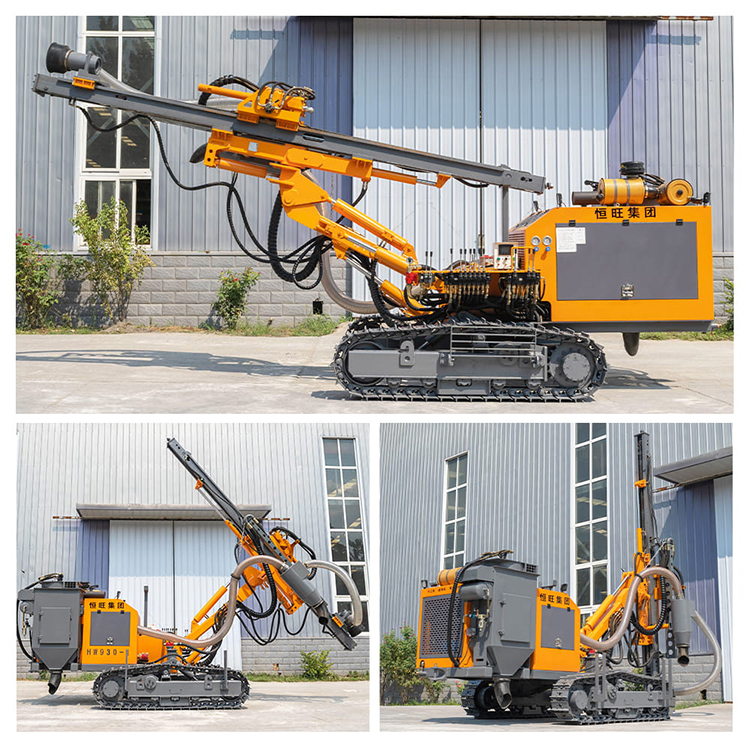

The main features of the HW930 DTH drilling rig are as follows:
1. Designed for drilling in the diameter range of 110-165mm, making it suitable for a wide range of applications.

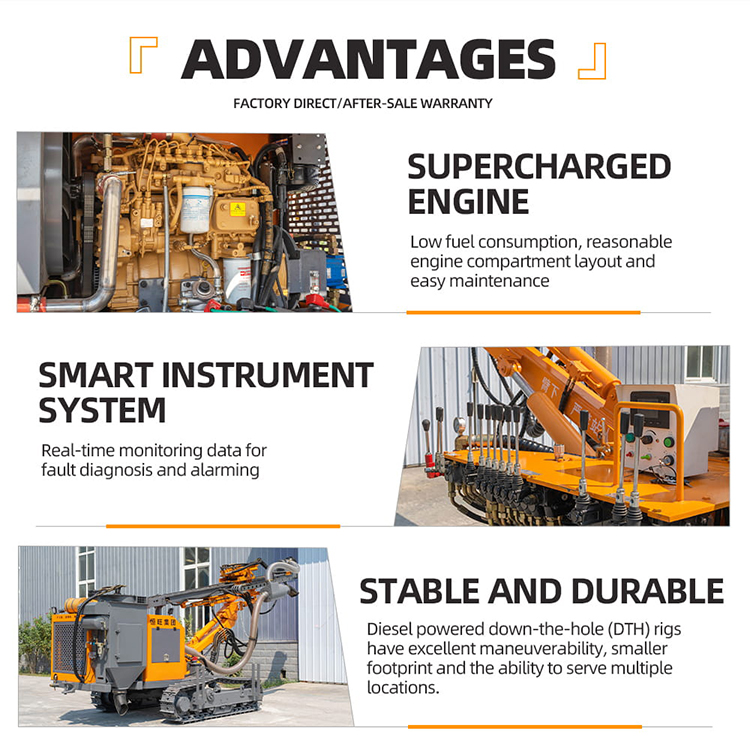

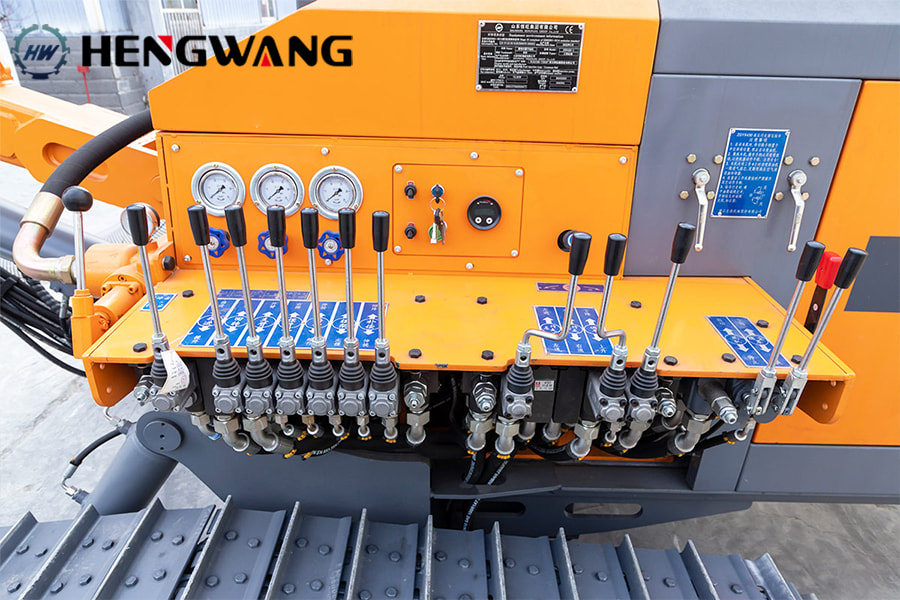

2. Equipped with a centralized console, which improves operational efficiency and helps reduce labor costs by providing convenient access to control and monitoring functions.

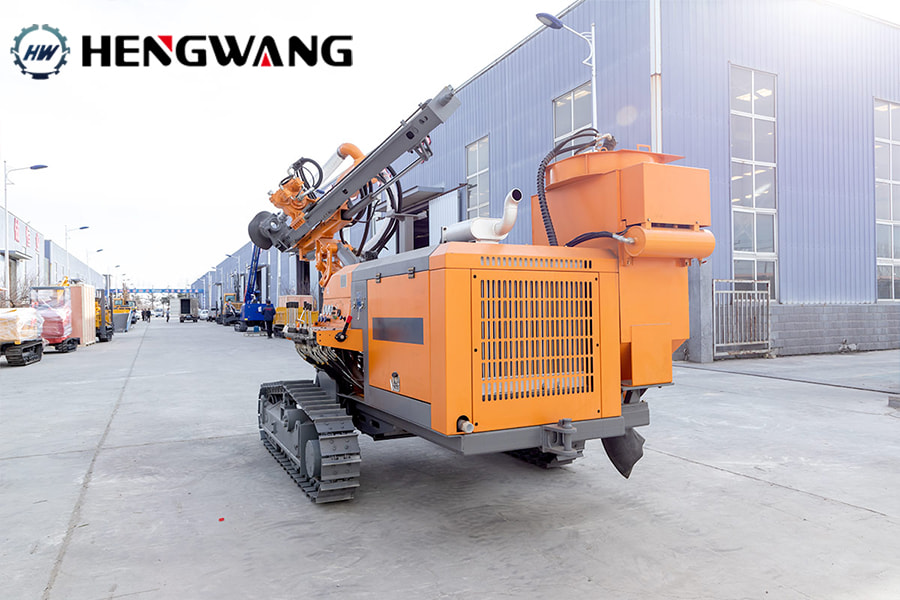

3. The crawler chassis of the rig is designed to adapt to various harsh working conditions while maintaining stability. This ensures reliable performance even in challenging environments.
