Rated Power: 191 kW
Lifting power：45kn
Drill Diameter: 90-138mm
Lifting power：45kn
Drill Diameter: 90-138mm
Crazy Engineering Day discounts, submit the form to receive discounts on orders.

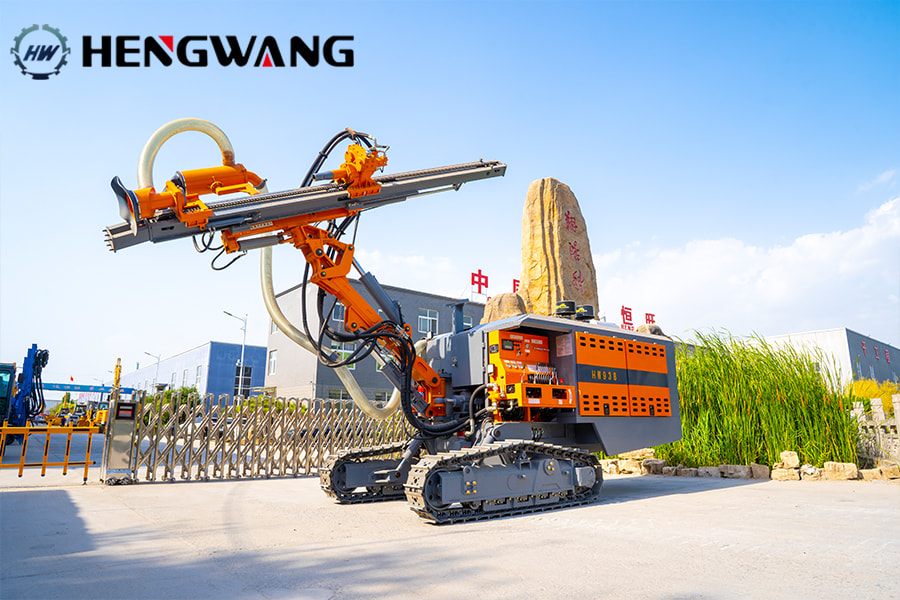

| model | HW938 |
| engine | Yuchai |
| power（KW） | 191 |
| Drill pipe type（mm） | φ76*3000 |
| Drilling diameter（mm） | φ90-138 |
| Maximum working torque（N.m） | 2500 |
| Swing speed（rpm） | 0-100 |
| Propulsion（kN） | 20 |
| Lifting power（kN） | 45 |
| Propulsion method | oil cylinder chain |
| Leveling angle | ±10° |
| Walking speed（km/h） | 3 |
| Gradeability | 25° |
| gross weight（kg） | 9310 |
| Shipping dimensions（mm） | 7550*2500*3060 |
| Dust collection method | Dry dust collection |
| exhaust volume | Displacement 15m³/min. Pressure 18bar |
| Power Head | 16/17 |
hank you for providing the updated information about the DTH drilling rig.
Main feature:

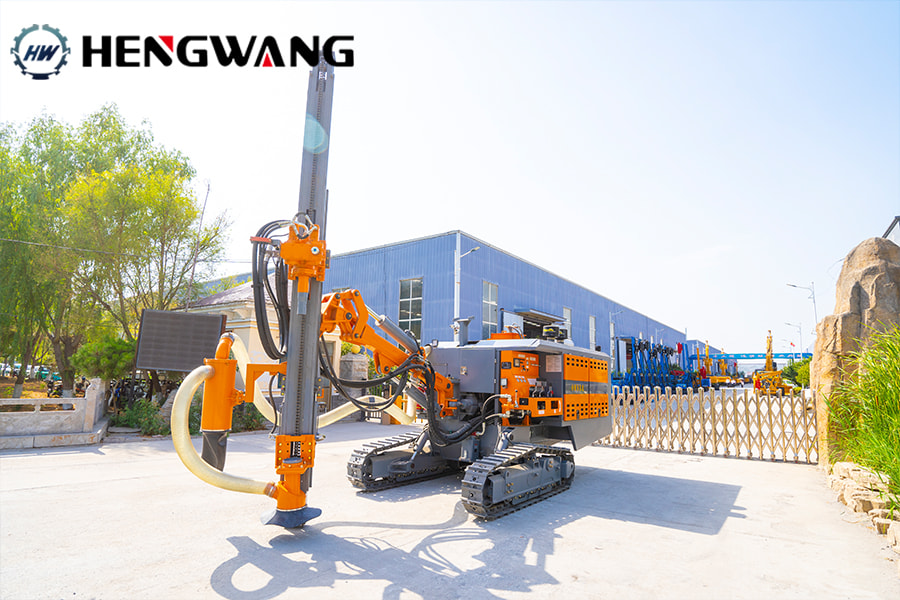

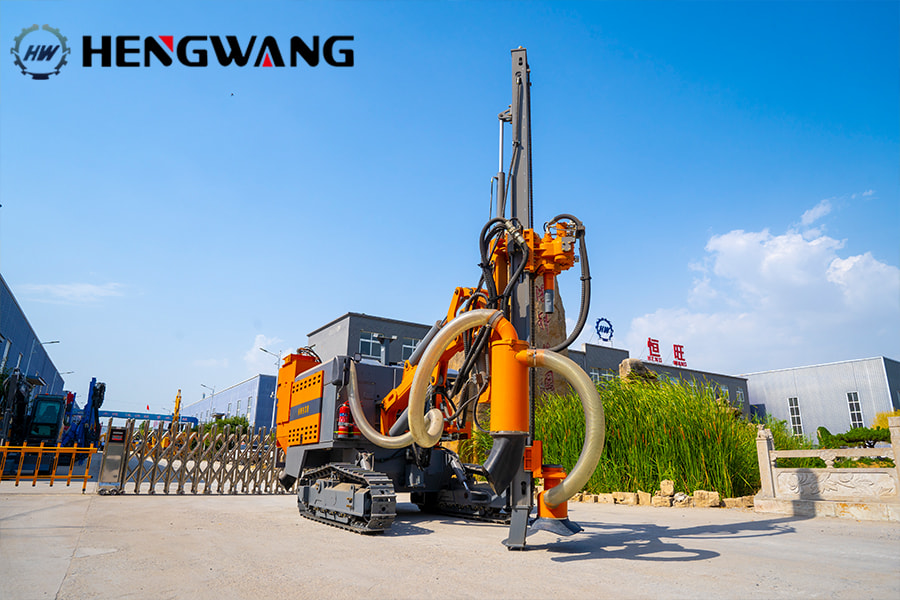

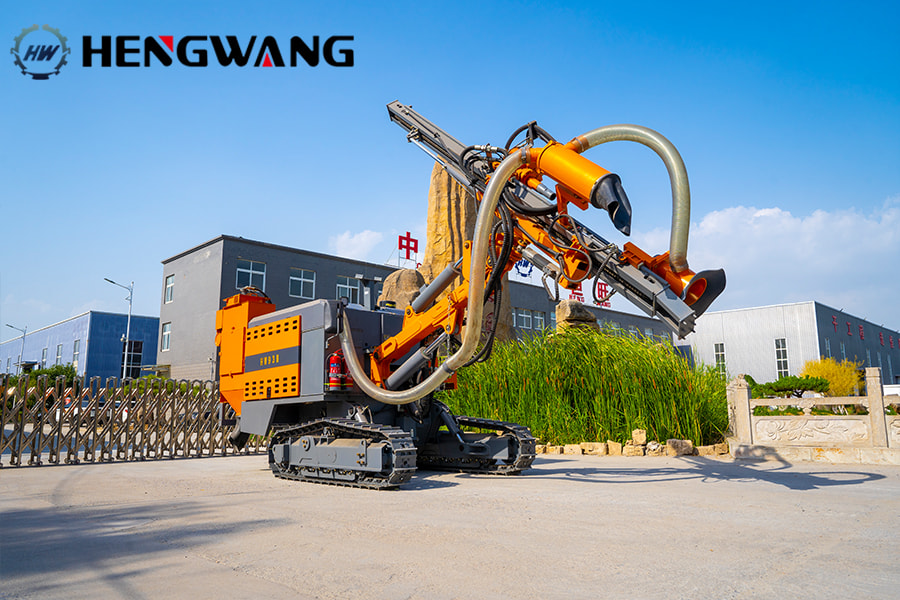

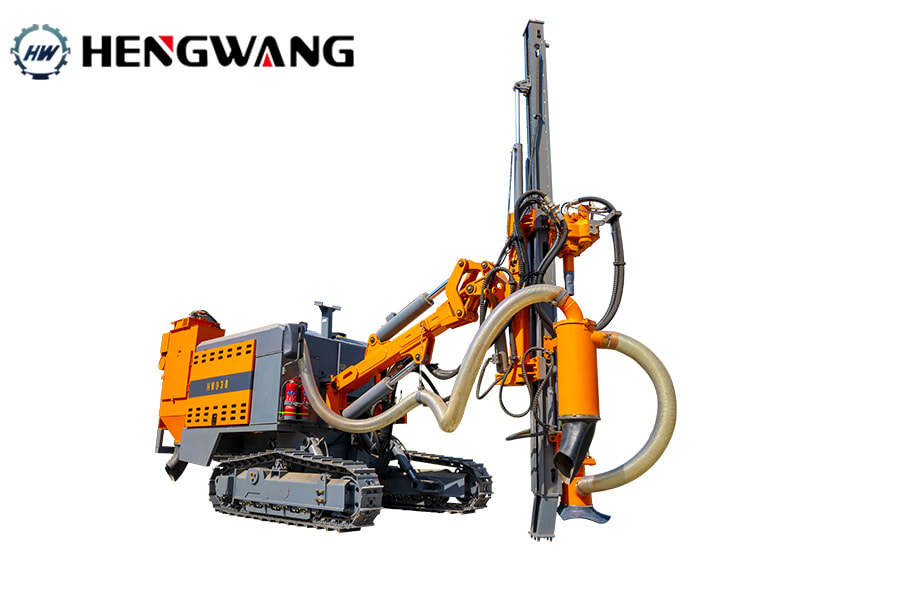

1. The HW938 model is specifically designed for drilling blast holes with a diameter range of 90-138mm, which aligns with the mentioned specifications.

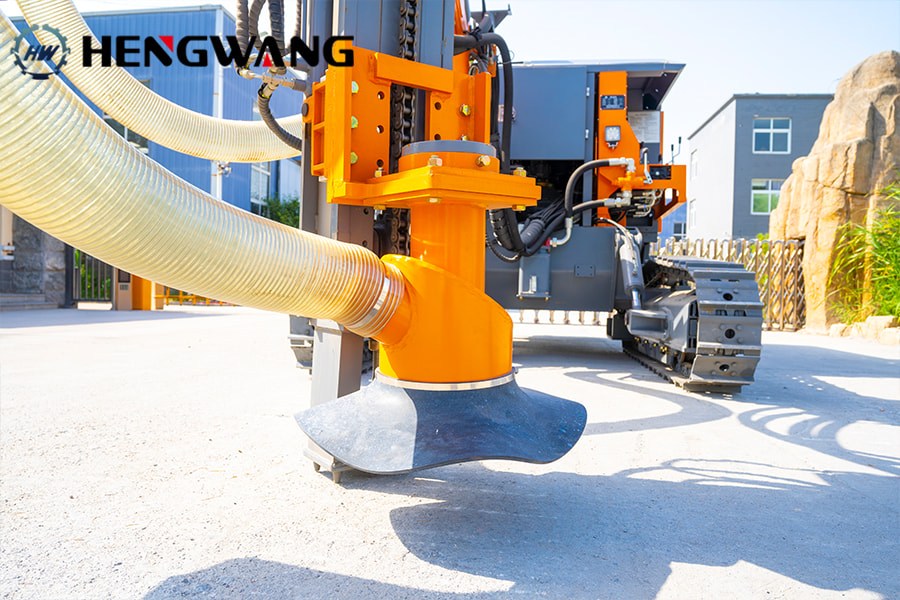

2. The rig is equipped with a dry dust collector, which helps in minimizing environmental pollution. It also features a drill pipe changer, allowing for
efficient and convenient pipe replacement during drilling operations. The rig incorporates advanced design and layout for enhanced performance.
3. The HW-920 model, purpose-built for hard strata conditions, is a suitable choice for metal, limestone, dolomite, and aggregate open cast quarries and mines.
