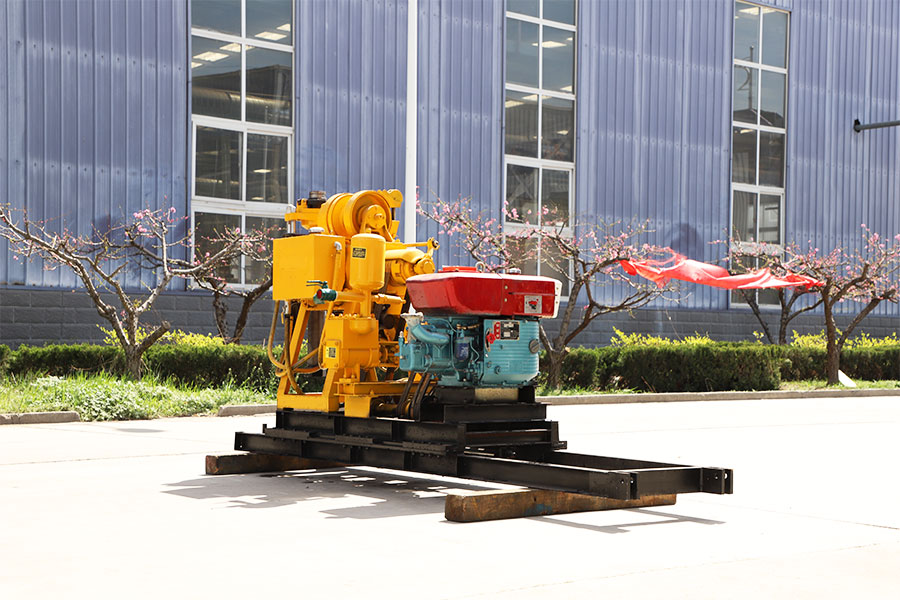

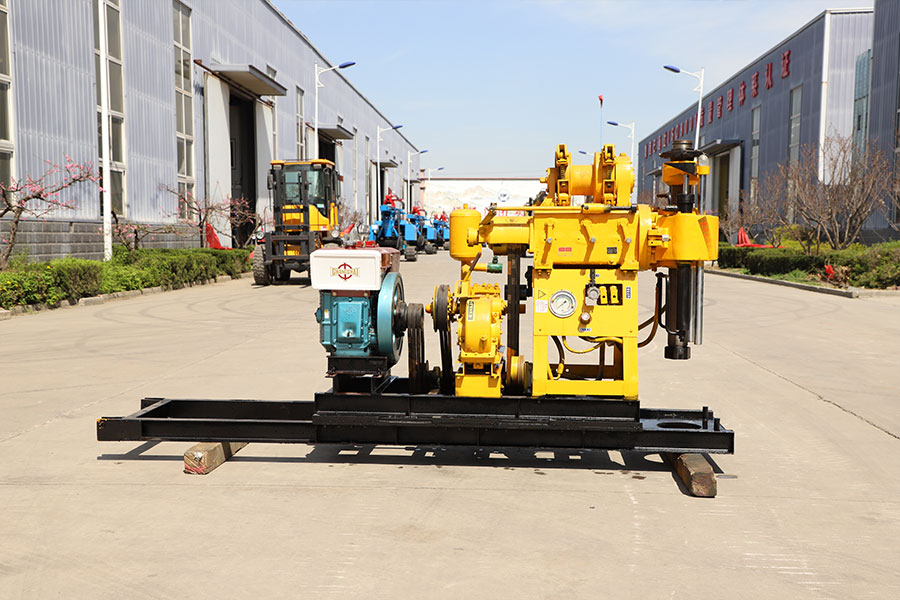

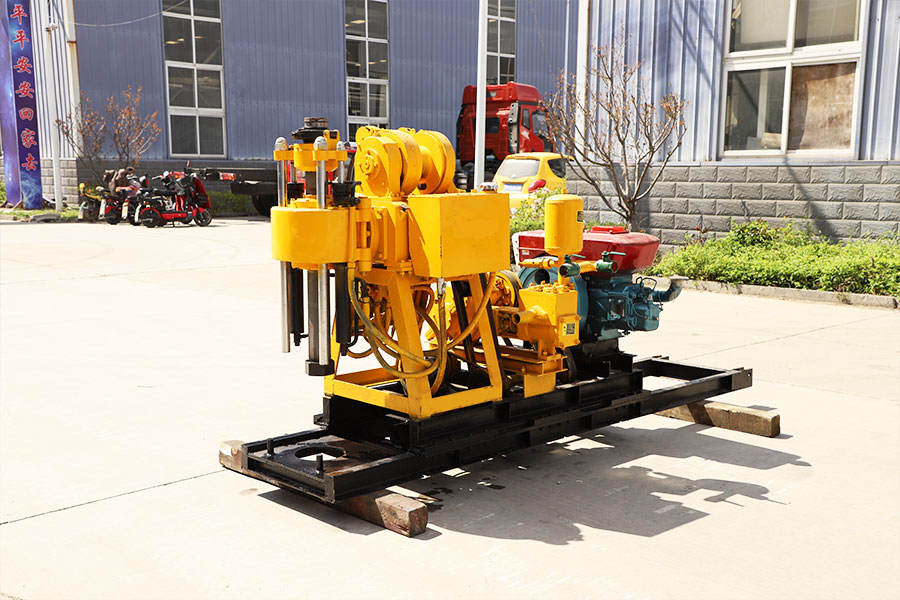

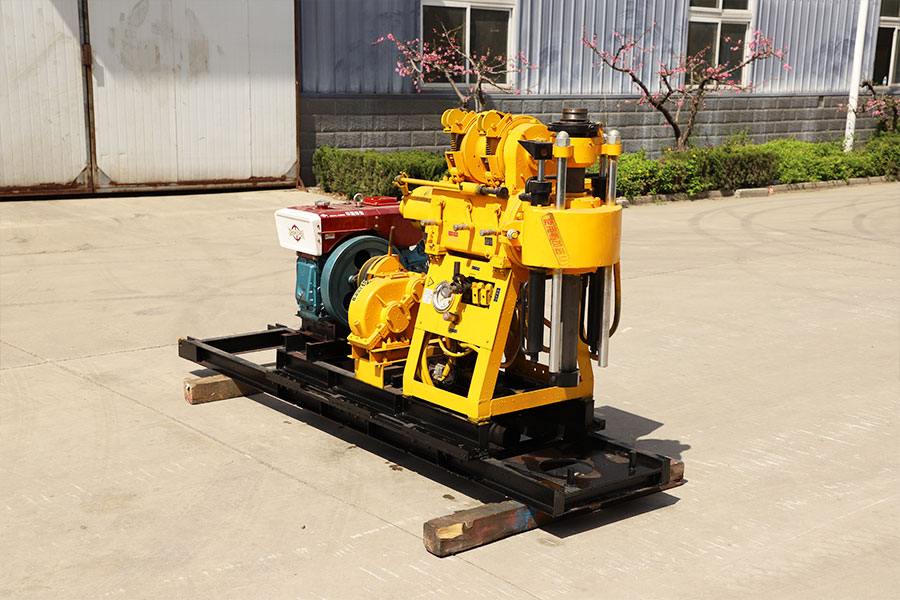

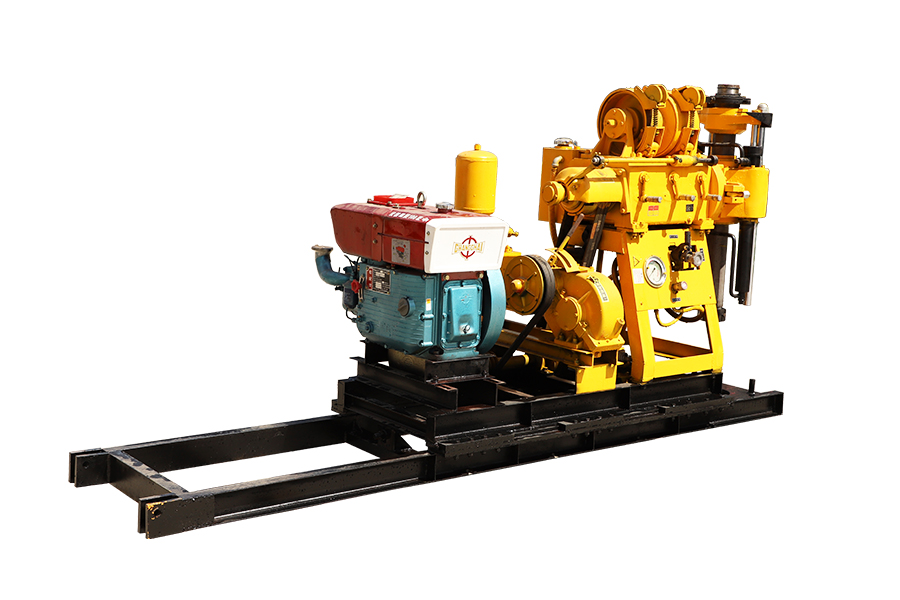

HW-160YY Hydraulic Drilling Rig

  • Factory direct
  • One-year warranty
Drilling depth: 160m
Drilling diameter: 75-500mm
Rated Power: 13.2Kw
Product Detail

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon



The 160L hydraulic drilling rig is a versatile piece of equipment commonly used in geological exploration and water well drilling.

Its design allows it to perform both core sampling and well drilling, meaning it has the following two functions:


1. Core Sampling:

   - The 160L hydraulic drilling rig can extract continuous core samples from underground rock layers or soil. These samples are

 analyzed to understand geological structures, mineral deposits, and other subsurface resources.

   - Core sampling requires precision and drilling stability, and the 160L hydraulic rig provides sufficient pressure and torque to

ensure high-quality core retrieval.


2. Well Drilling:

   - This rig is also suitable for water well drilling. It can drill deep wells in various geological conditions, making it ideal for water

resource extraction or other subsurface resources.

   - During the drilling process, the 160L hydraulic rig can be equipped with different drilling tools to adapt to various soil and

rock types, offering efficient drilling capabilities.


Therefore, the 160L hydraulic drilling rig is indeed capable of both core sampling and well drilling, making it suitable for a wide

 range of geological exploration and water well drilling projects. Its versatility makes it an essential tool in fields such as mineral

exploration, water resource management, and environmental studies.





Parameter

modelHW160YY
Drilling depth160m
Opening diameter500(Soil)/220(Rock)mm
final hole diameter75mm
Drill pipe diameter42-50mm
Drilling angle90-75°
Engine power13.2kw
weight850kg
Machine size2400*800*1300mm
Vertical shaft speed142/285/570r/min
Vertical axis travel450mm
Single rope lifting force2000kg
Single rope lifting speed0.41-1.64m/s
Wire rope diameterφ9.3mm
Wire rope capacity27m
Rated load18Ton
effective height6.5m
flow95L/Min
greatest pressure1.2Mpa
Optional configuration
Walking Gantry
