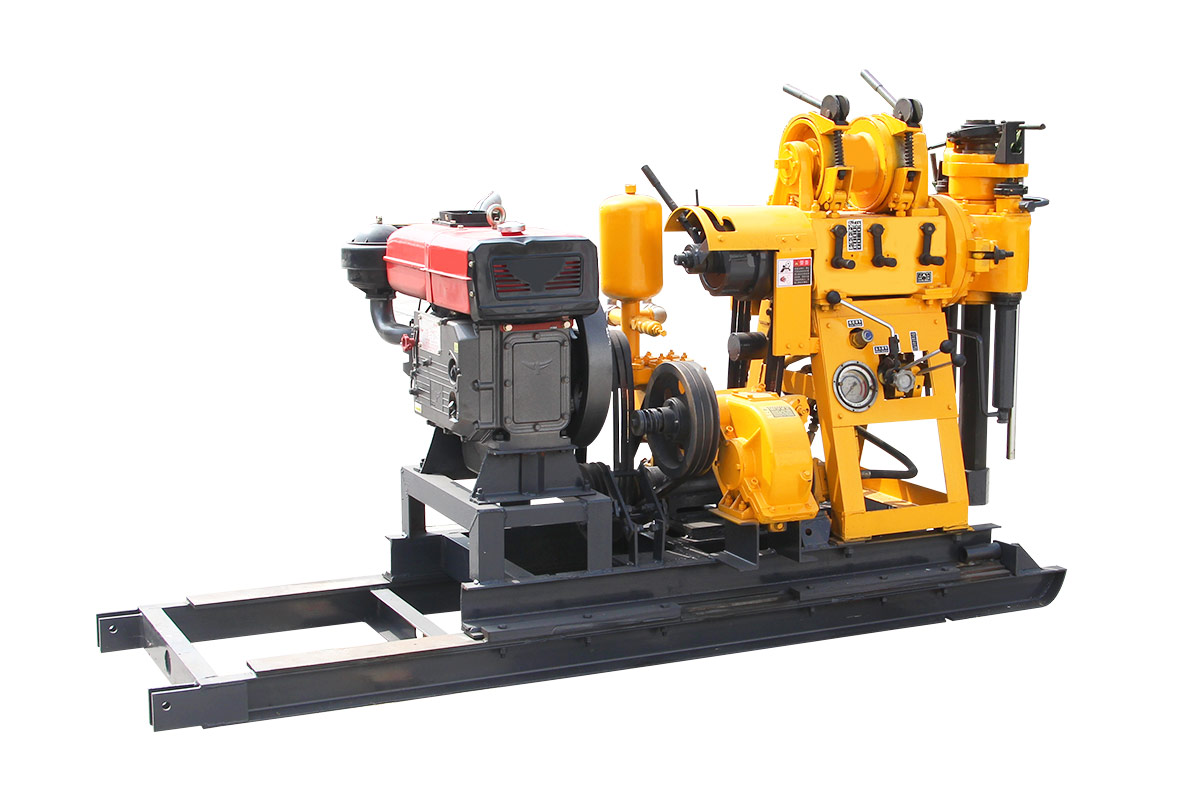

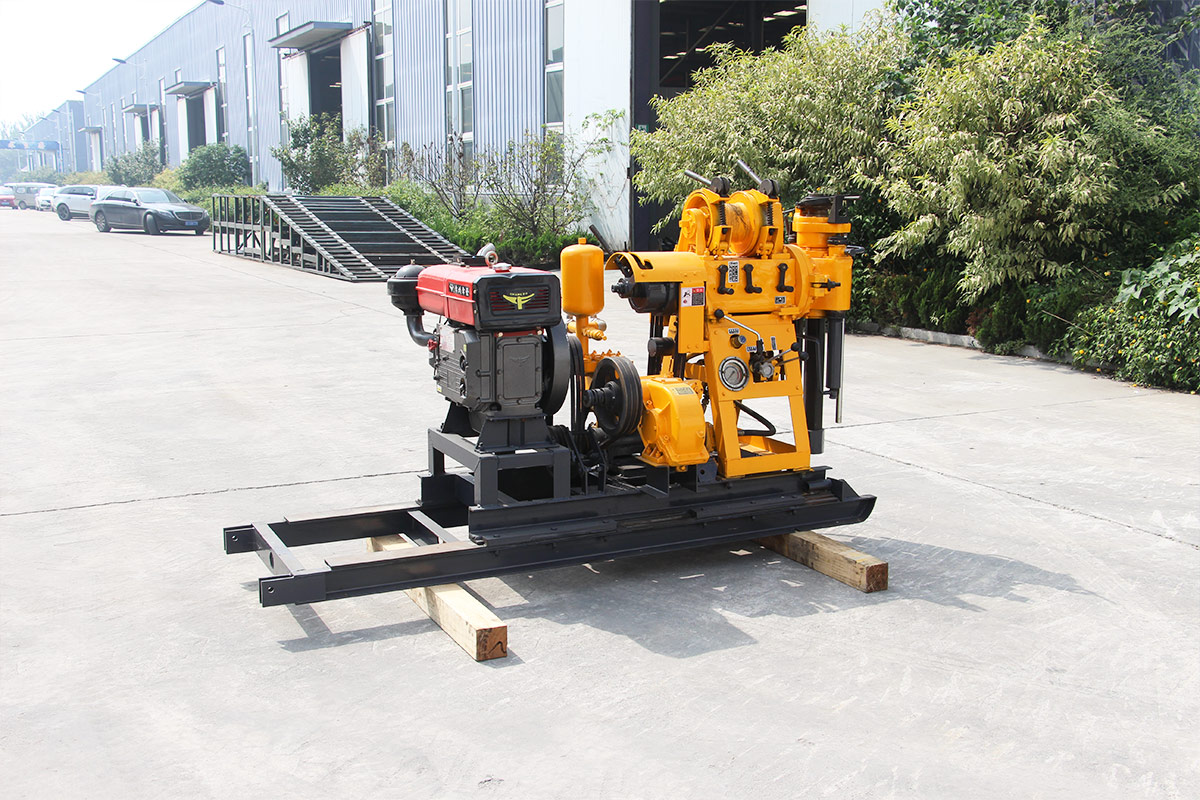

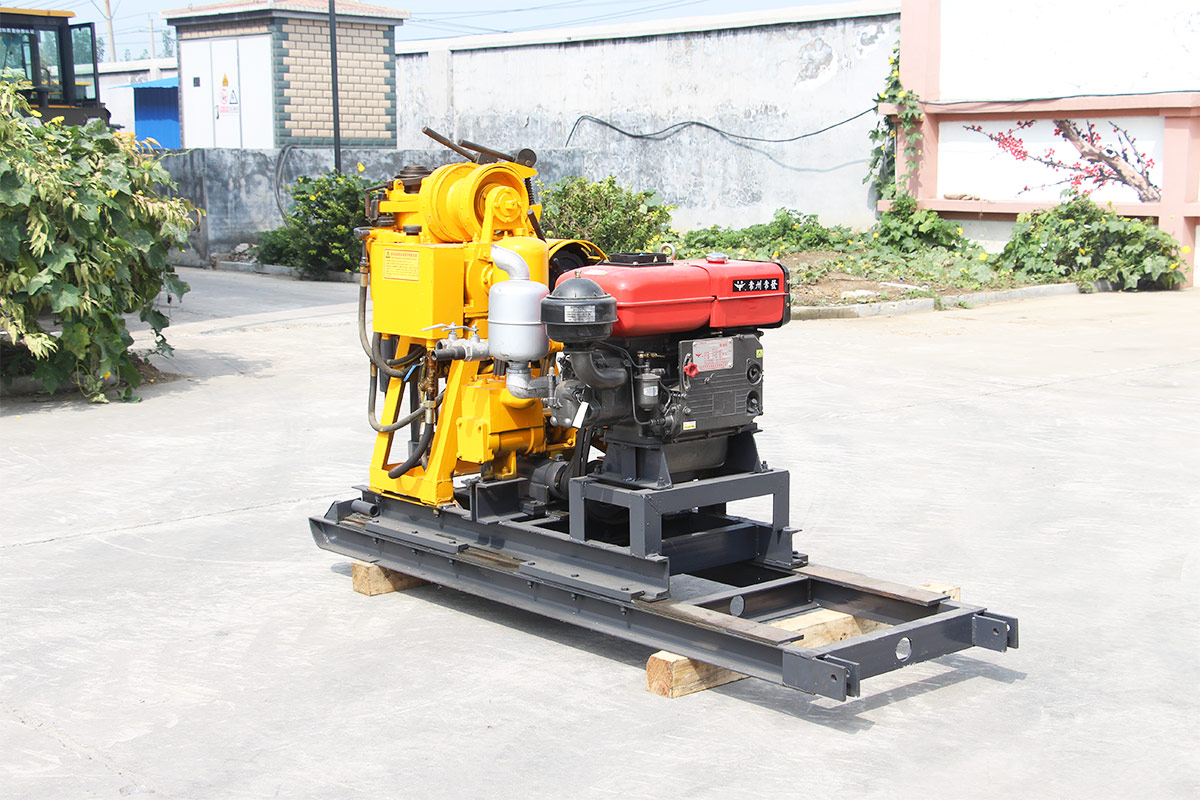

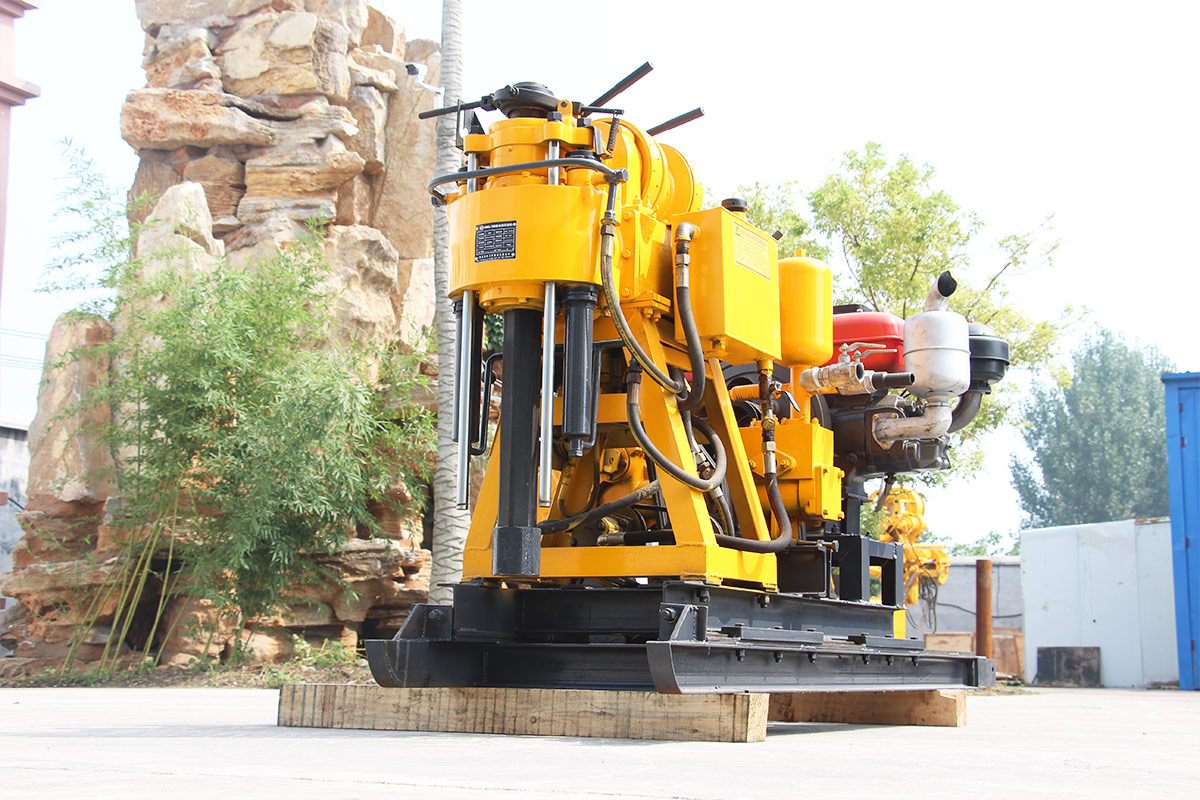

HW-190YY Hydraulic Drilling Rig

  • Factory direct
  • One-year warranty
Drilling depth: 190m
Drilling diameter: 75-500mm
Rated Power: 13.2kw
Product Detail

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon



Drilling depth190m
Opening diameter500(Soil)/220(Rock)mm
final hole diameter75mm
Drill pipe diameter42-50mm
Drilling angle90-75°

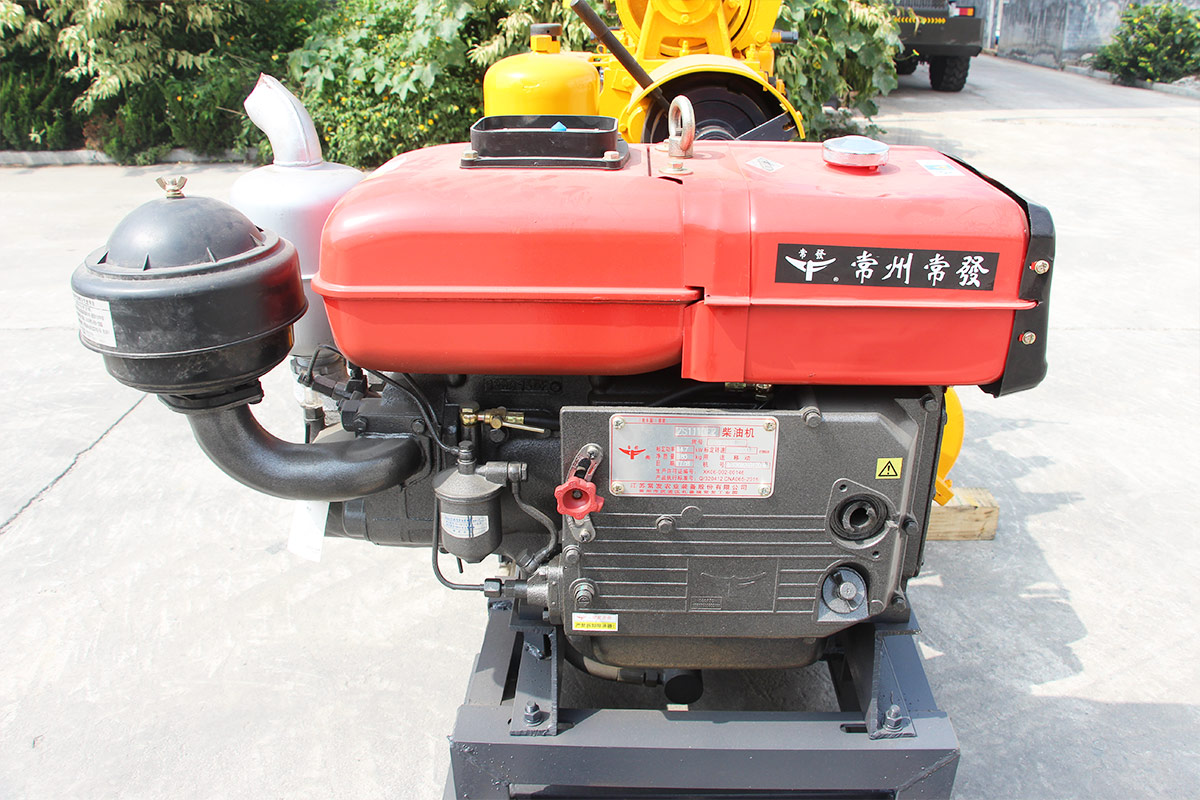

Engine power13.2kw
Machine size2400*800*1400mm
Vertical shaft speed130/300/480/730/830/1045r/min
Vertical axis travel450mm
Single rope lifting force2100kg
Single rope lifting speed0.35-2.23m/s
Wire rope diameterφ9.3mm
Wire rope capacity27m
Rated load18Ton
effective height6.5m
greatest pressure1.2Mpa
Optional configuration

Hengwang's water well drilling rigs are designed to be robust, durable and highly reliable to provide safe, clean water in some of the world's most challenging environments that inferior rigs simply cannot cope with.

Main features:

1.The water drilling machine is designed to be easily transportable, with options for tracking or trucking, allowing for flexibility in transportation methods.

2. The inclusion of high outriggers facilitates convenient loading and unloading operations, eliminating the need for a crane during the process.

3. The drilling rig is highly versatile, suitable for various applications such as water well drilling, mineral exploration, geothermal applications, soil surveys, rock coring, and more. Its wide range of uses makes it a versatile tool for different drilling needs.

To obtain the latest technical parameters and quotes for Hengwang water well drilling rigs, please fill out the form provided below. Our team will review your submission and provide you with the updated information. Thank you for your interest!
