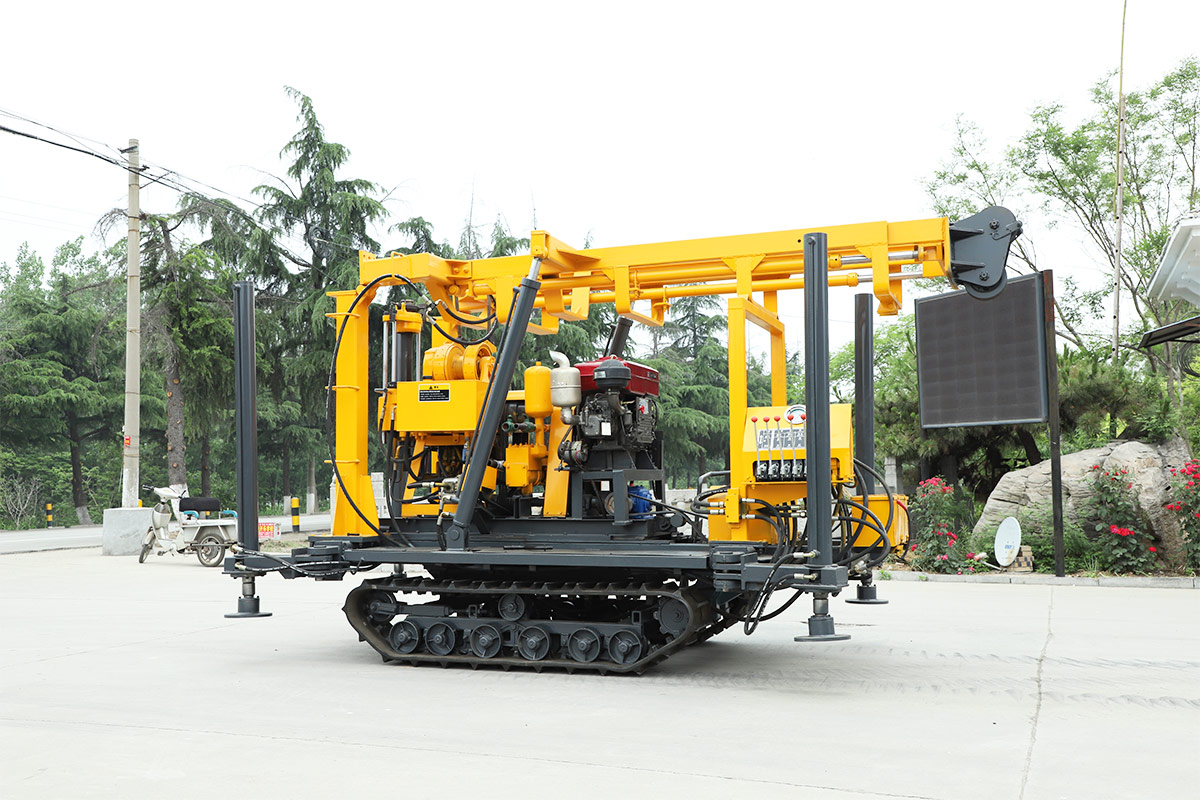

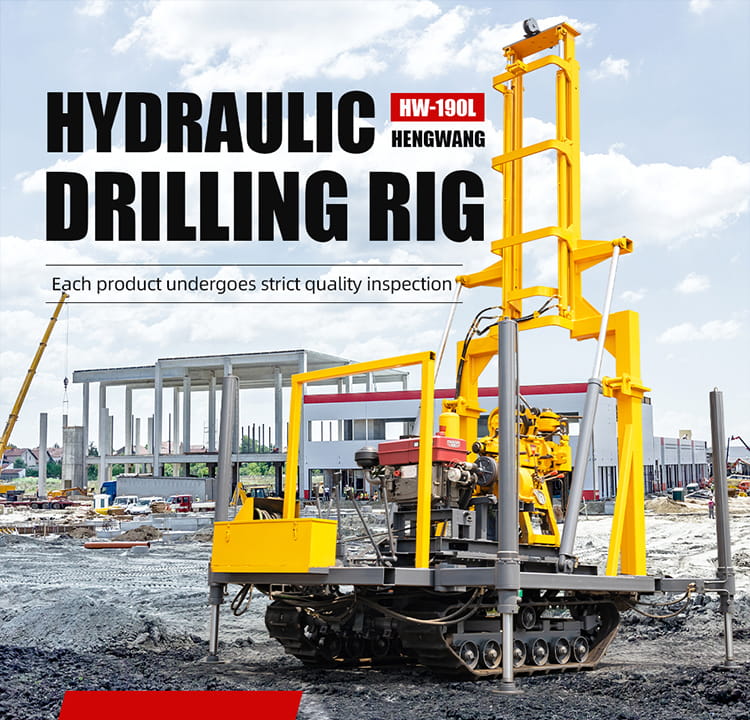

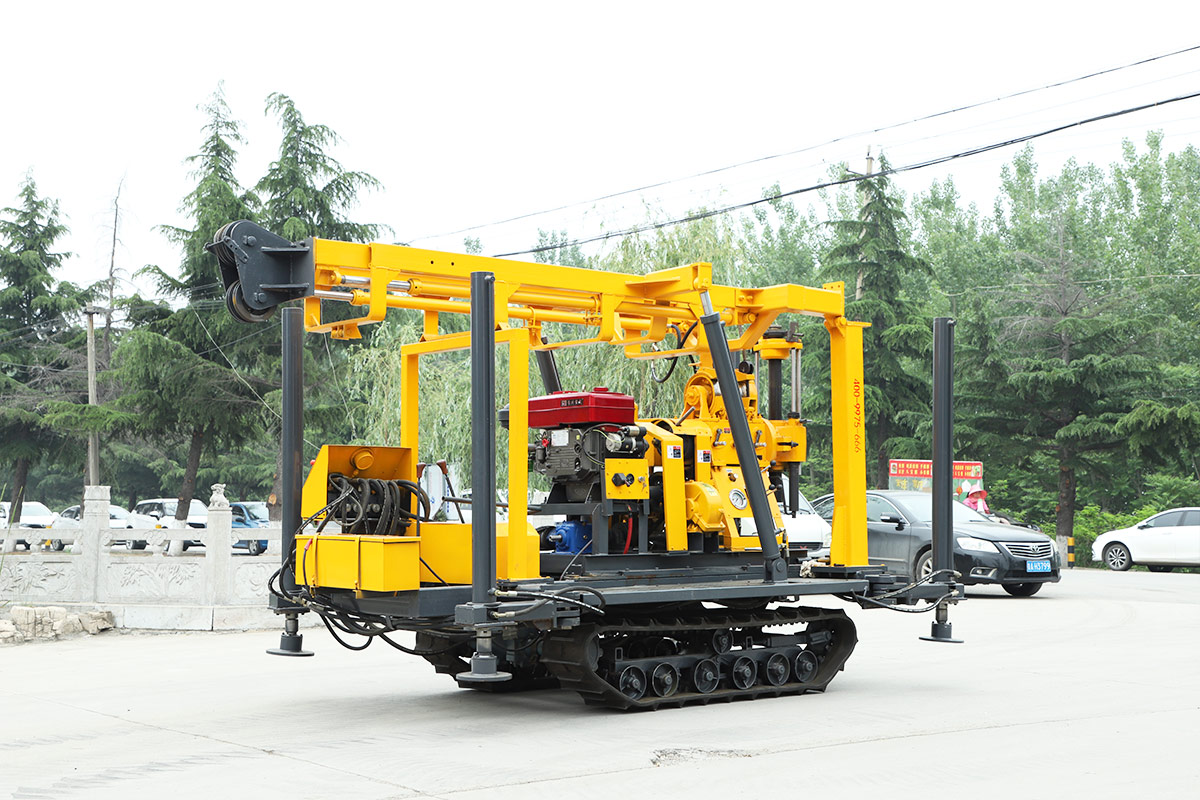

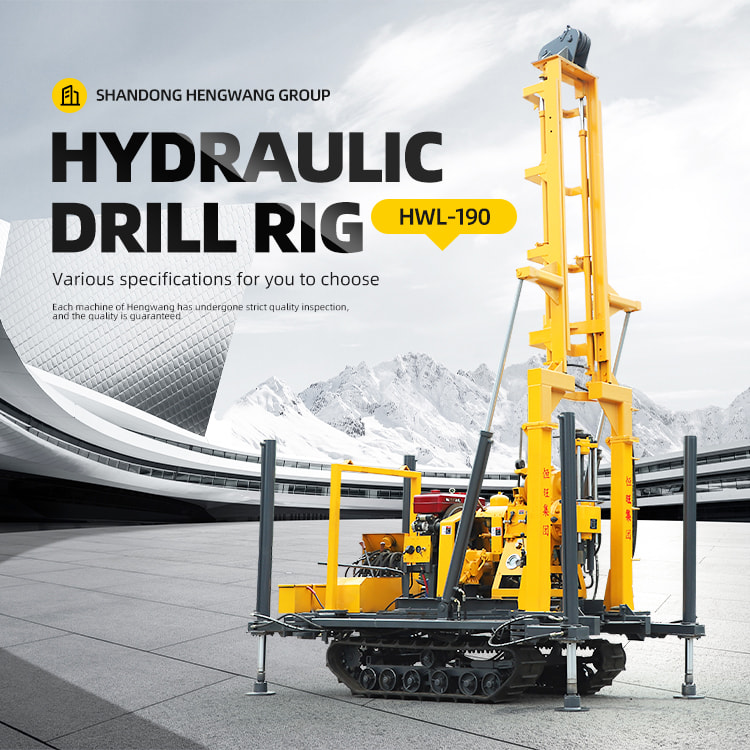

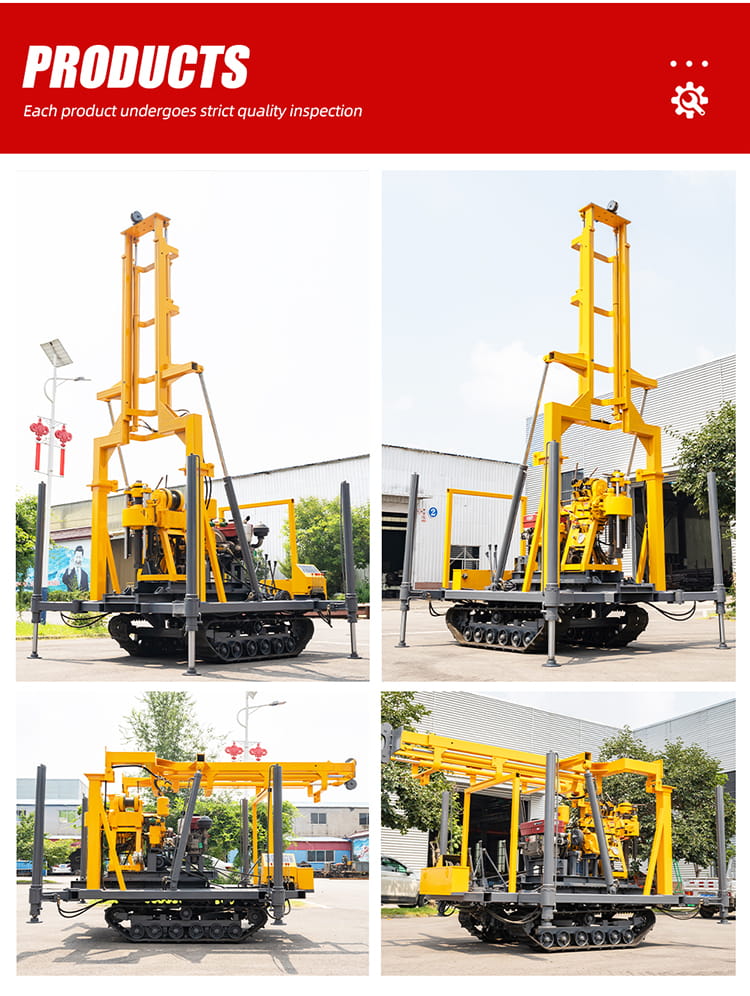

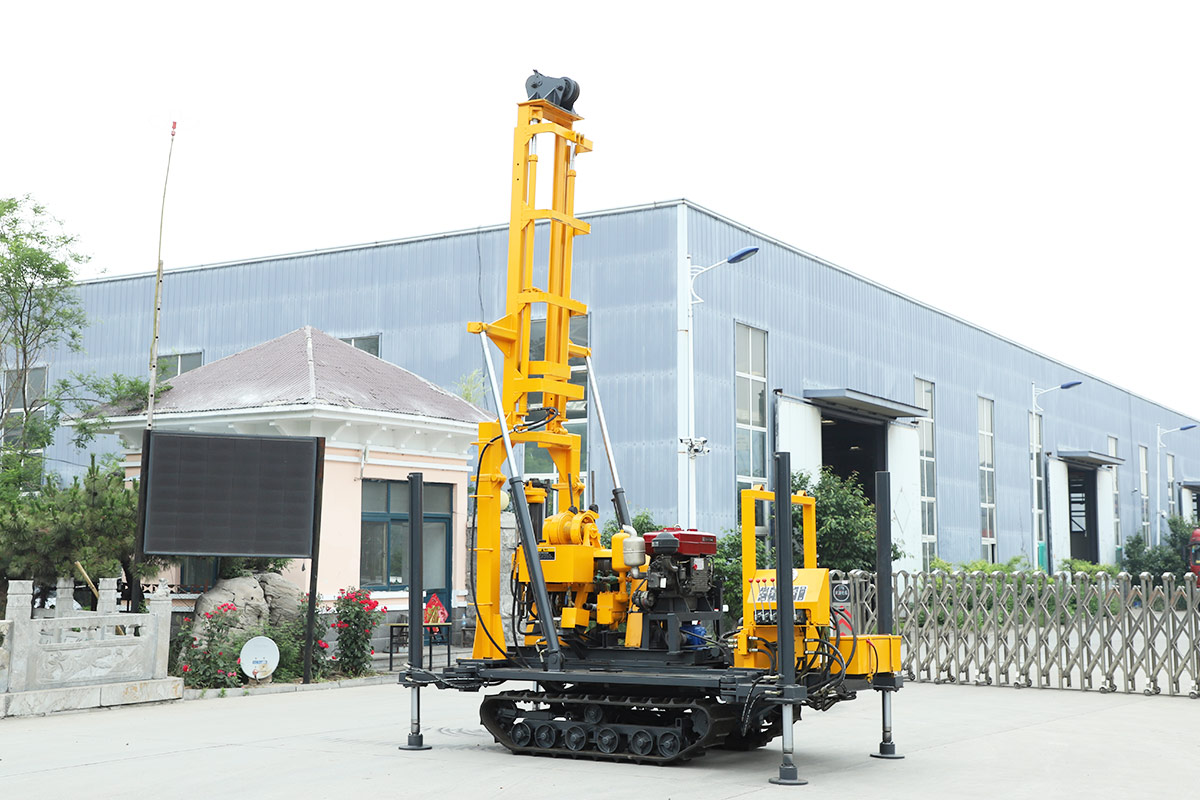

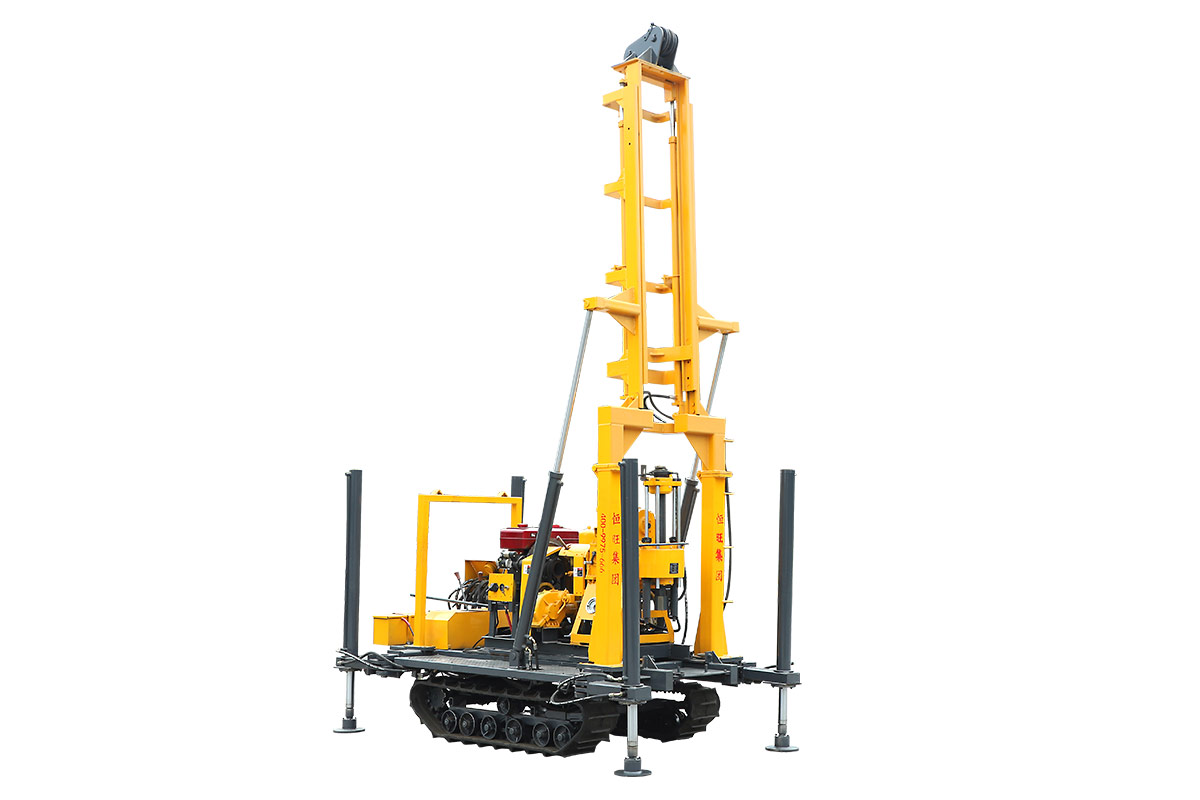

HW-190L Hydraulic Drilling Rig

  • Factory direct
  • One-year warranty
Drilling diameter: 75-500mm
Drilling depth: 190m
Rated Power: 13.2Kw
Product Detail

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon




modelHW190L
Drilling depth190m
Opening diameter500(Soil)/220(Rock)mm
final hole diameter75mm
Drill pipe diameter42-50-60mm
Drilling angle90-75°
Engine power13.2kw
weight3250kg
Machine size3800*1950*2700mm
Vertical shaft speed64/128/287/557r/min
Vertical axis travel450mm
Single rope lifting force2500kg
Single rope lifting speed0.12-0.95m/s
Wire rope diameterφ12.5mm
Wire rope capacity35m
Rated load18Ton
effective height6.5m
flow145L/Min
greatest pressure2Mpa
Optional configuration
Motor



HW-190L Hydraulic Drilling Rig: Power Meets Precision

Experience the future of drilling with the HW-190L Hydraulic Drilling Rig—a machine that combines unparalleled power with precise

 control. Engineered for efficiency, this rig is designed to handle the toughest terrains with ease, offering rapid penetration and superior

stability. Its advanced hydraulic system ensures consistent performance, minimizing downtime and maximizing productivity. Whether

you're drilling for water, minerals, or construction purposes, the HW-190L delivers exceptional results every time. Invest in innovation—choose

 the HW-190L and elevate your drilling operations to the next level.





Unlock Superior Drilling Performance with Our Hydraulic Drilling Rigs!


Discover our range of hydraulic drilling rigs, designed to deliver unmatched power, precision, and durability.

Fill out the form below to receive a personalized quote and expert advice tailored to your project needs.


Why Choose Our Hydraulic Drilling Rigs?


Transparent Pricing: Receive a clear and detailed quote.

High Quality: Robust and reliable rigs for any drilling challenge.

Fast Shipping: Quick and efficient delivery of your drilling rig.

Outstanding After-Sales Service: Continuous support and effective solutions to ensure your success.

Don’t wait! Complete the form and elevate your drilling projects with our state-of-the-art technology.





Request a quote

Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
