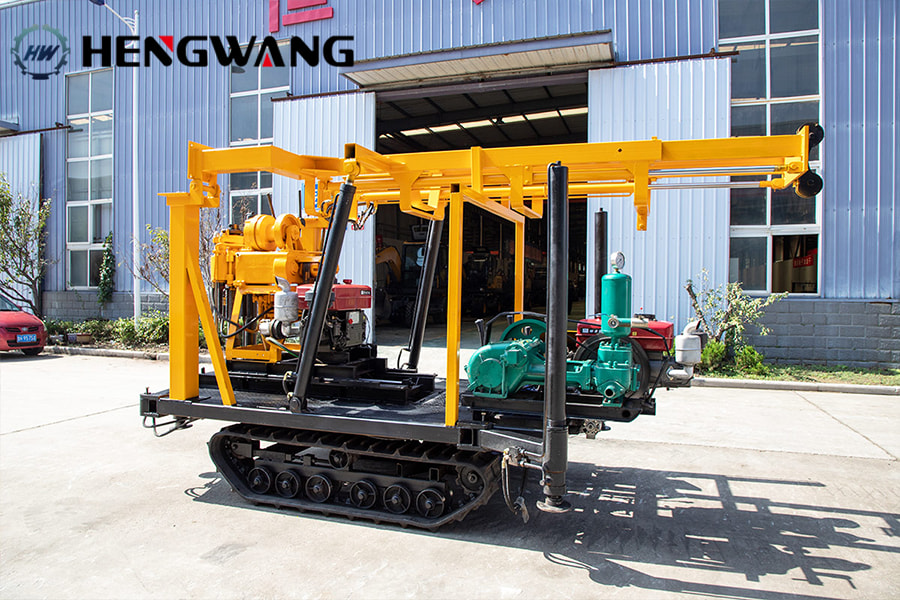

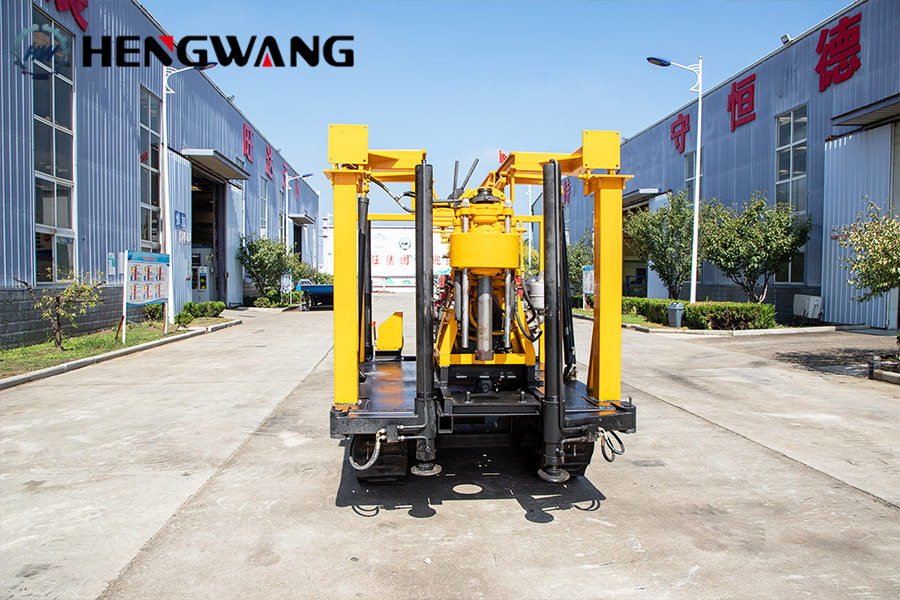

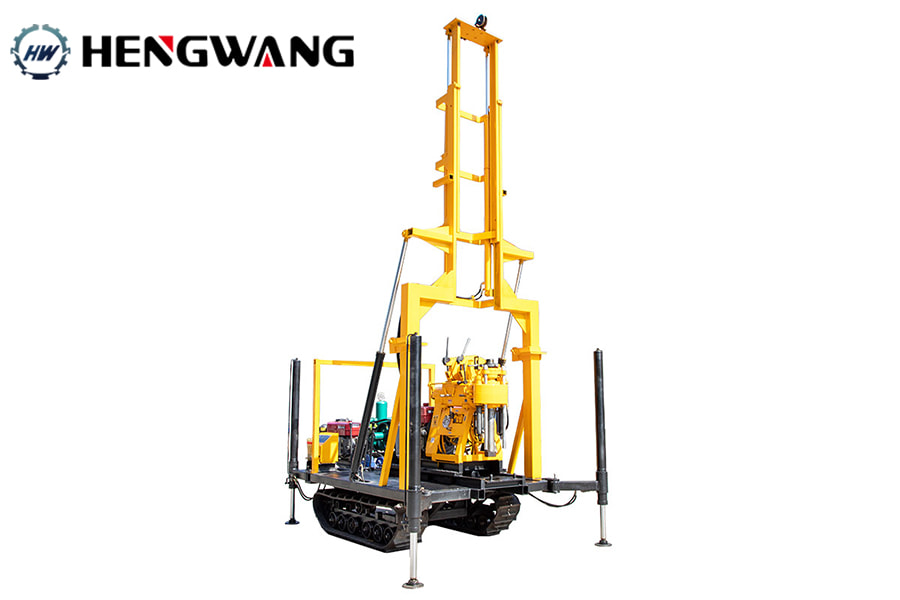

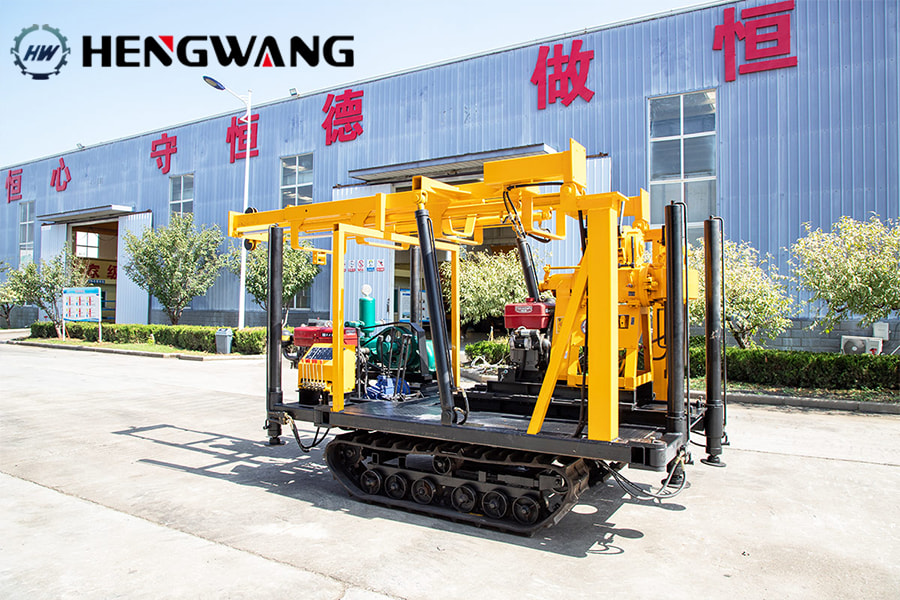

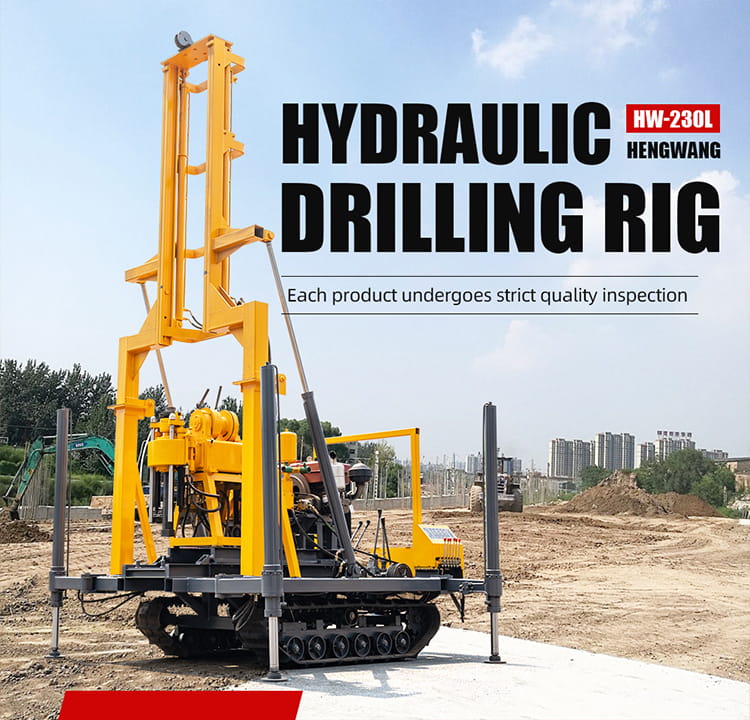

HW-230L Hydraulic Drilling Rig

  • Factory direct
  • One-year warranty
Drilling diameter: 75-500mm
Drilling depth: 230m
Rated Power: 15Kw
Product Detail

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon




modelHW230L
Drilling depth230m
Opening diameter500(Soil)/220(Rock)mm
final hole diameter75mm
Drill pipe diameter42-50mm
Drilling angle90-75°
Engine power15kw
weight3300kg
Machine size3800*1950*2700mm
Vertical shaft speed130/300/480/730/830/1045r/min
Vertical axis travel450mm
Single rope lifting force2100kg
Single rope lifting speed0.35-2.23m/s
Wire rope diameterφ9.3mm
Wire rope capacity27m
Rated load18Ton
effective height6.5m

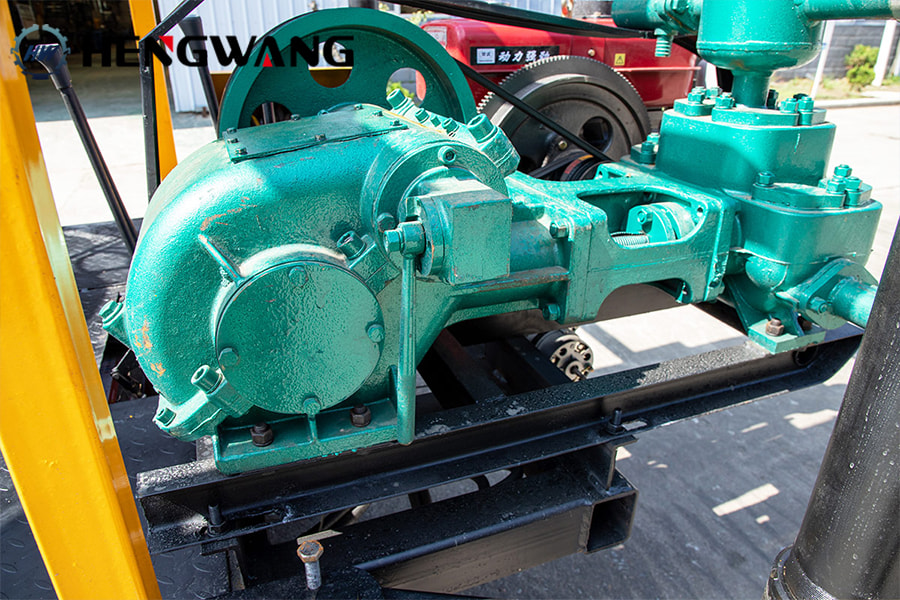

flow95L/Min
greatest pressure1.2Mpa
Optional configuration
Walking Gantry



Introducing the HW-230L Hydraulic Drilling Rig—an unparalleled fusion of cutting-edge technology and efficiency. This rig offers exceptional

drilling power, seamlessly adaptable to various terrains, making it perfect for both shallow and deeper water well drilling projects. Its hydraulic

 system ensures precision control, reducing operational costs and maximizing output. Designed with durability in mind, the HW-230L is built to

withstand harsh environments while maintaining high performance. Ideal for businesses seeking a cost-effective solution, this machine delivers

consistent results, making it an investment in long-term success.
