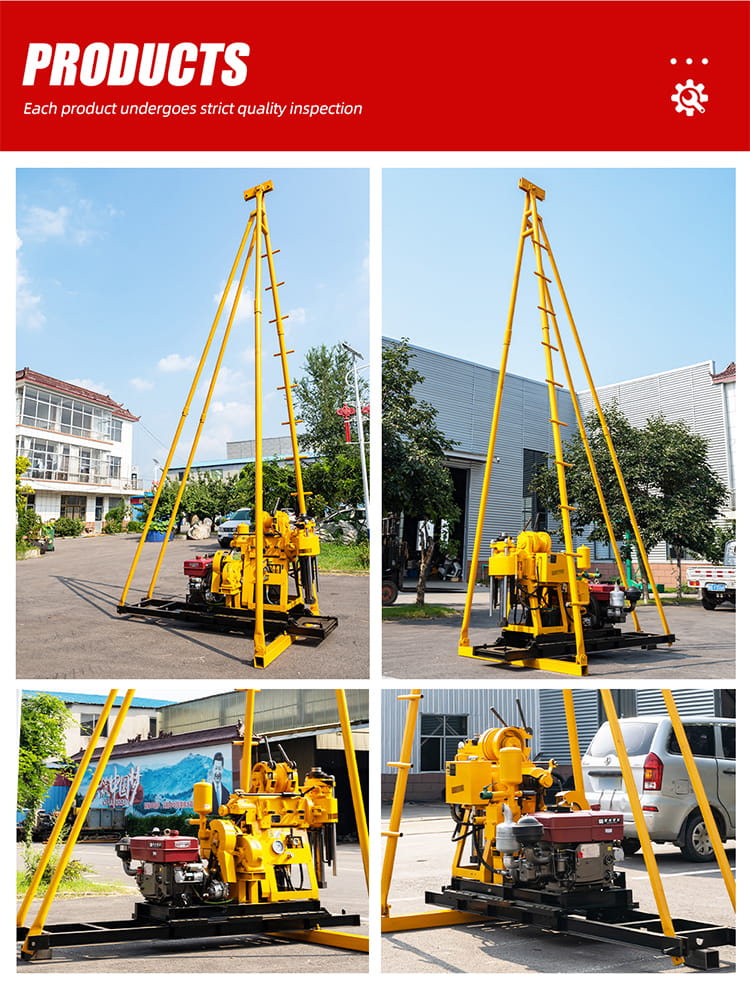

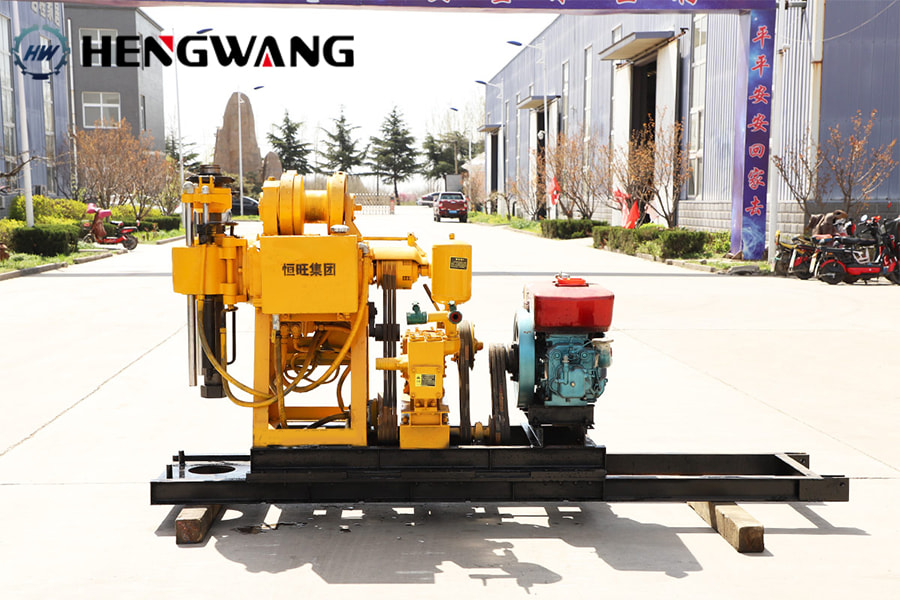

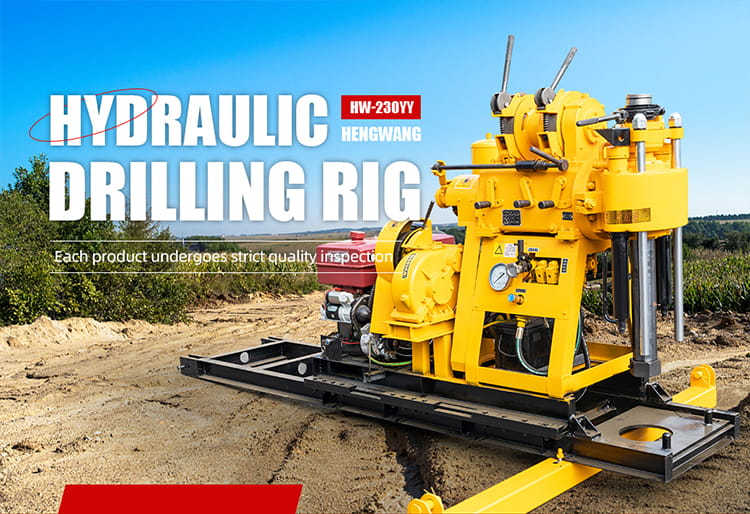

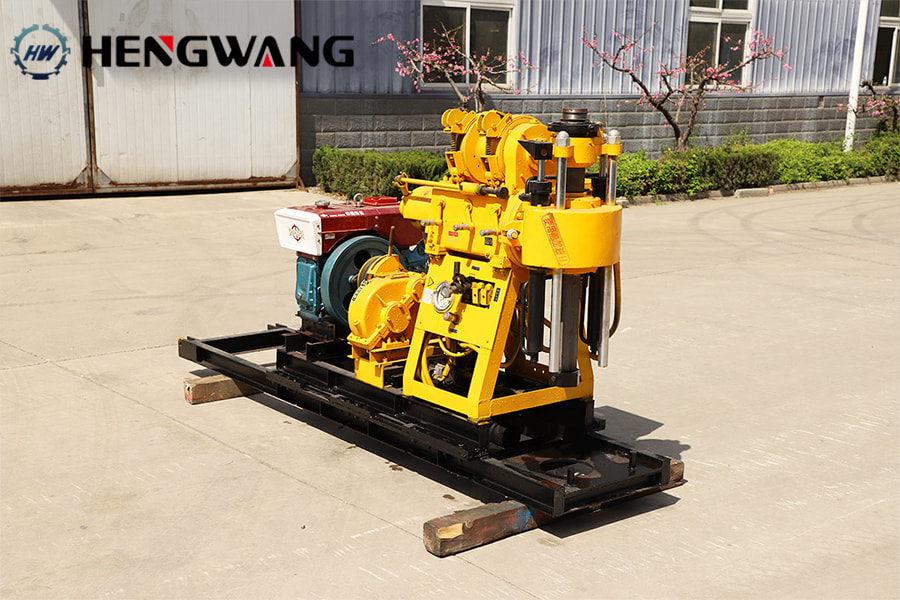

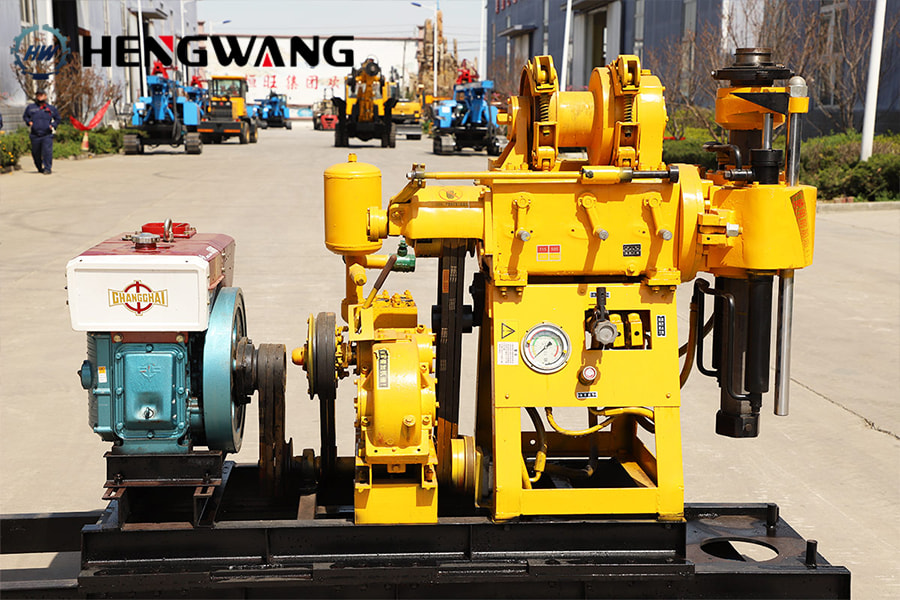

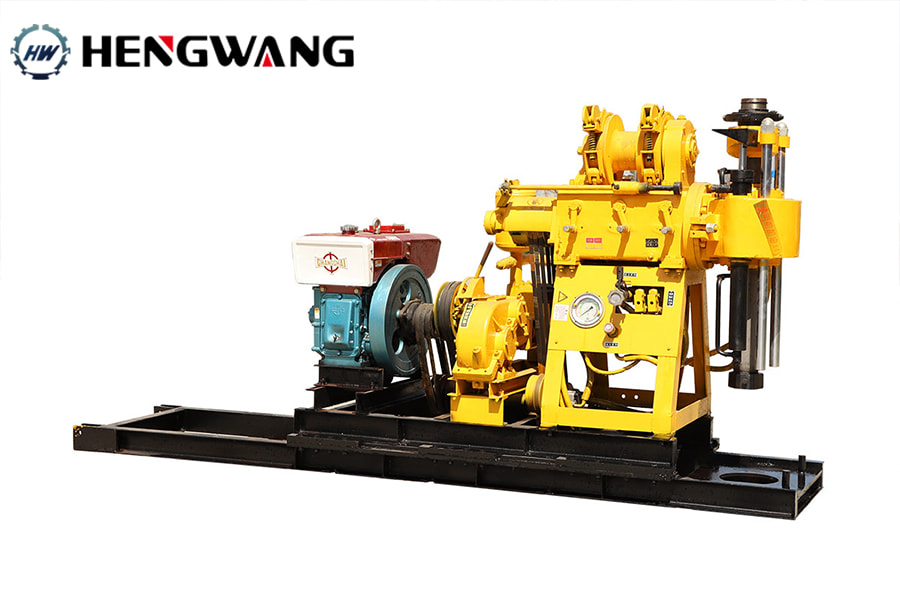

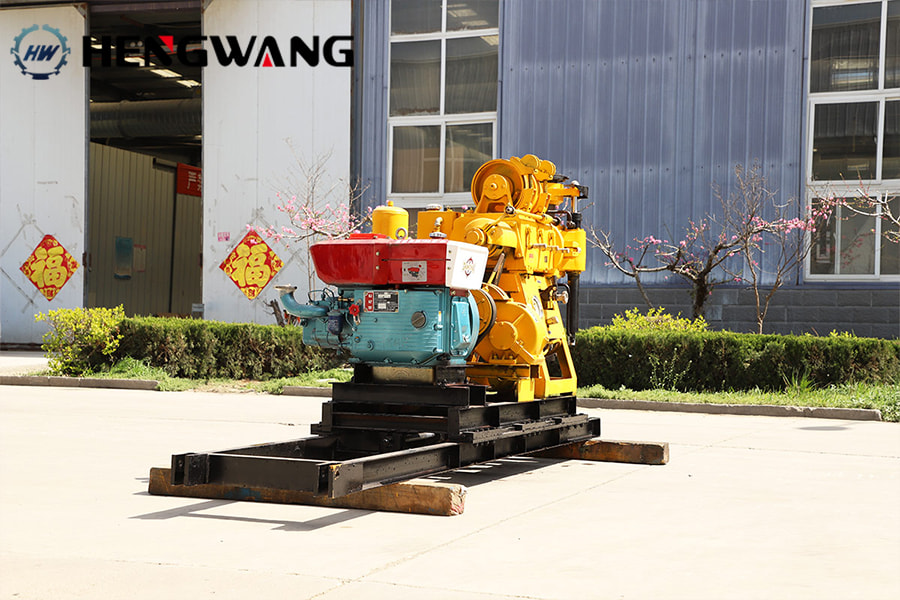

HW-230YY Hydraulic Drilling Rig

  • Factory direct
  • One-year warranty
Drilling depth: 230m
Drilling diameter: 75-500mm
Rated Power: 15Kw
Product Detail

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon




modelHW230YY
Drilling depth230m
Opening diameter500(Soil)/220(Rock)mm
final hole diameter75mm
Drill pipe diameter42-50-60mm
Drilling angle90-75°

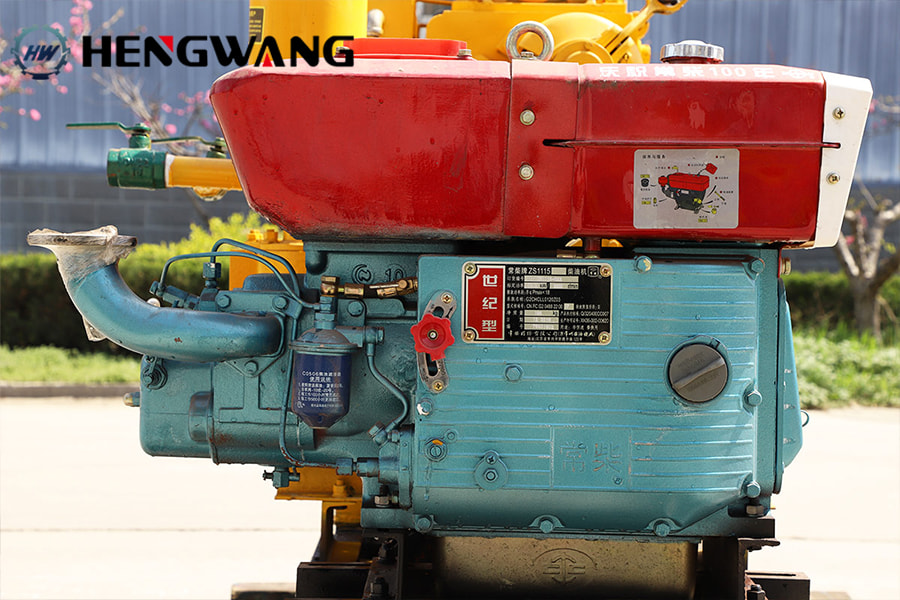

Engine power15kw
weight950kg
Machine size2700*900*1500mm
Vertical shaft speed64/128/287/557r/min
Vertical axis travel450mm
Single rope lifting force2500kg
Single rope lifting speed0.12-0.95m/s
Wire rope diameterφ12.5mm
Wire rope capacity35m
Rated load18Ton
effective height6.5m
flow145L/Min
greatest pressure2Mpa
Optional configuration

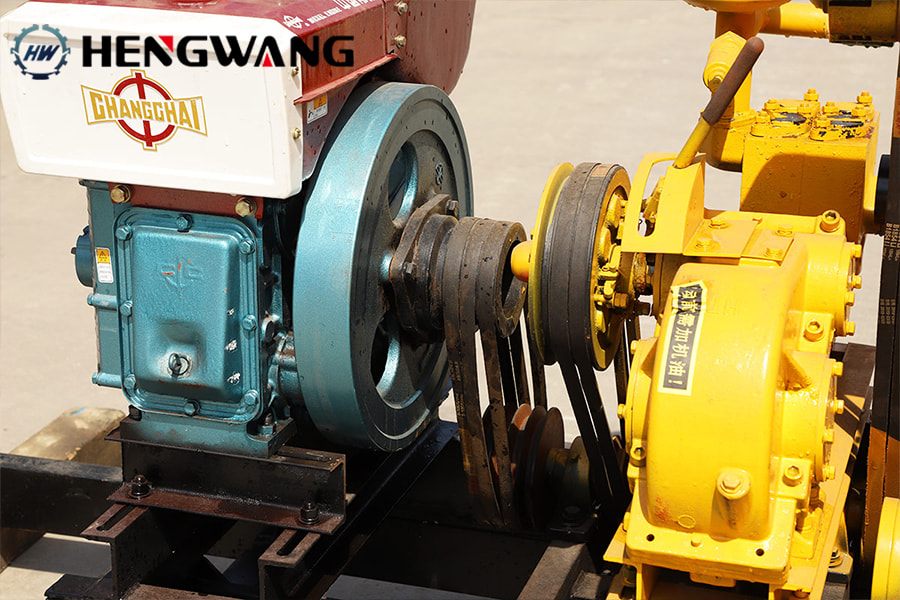

Motor



HW-230YY Hydraulic Drilling Rig, a marvel of precision and power designed for tough drilling environments. This machine combines robust

engineering with advanced hydraulic technology to deliver superior performance and efficiency. With its compact design, the HW-230YY is

 perfect for operations where space is a premium, yet power cannot be compromised. The rig’s state-of-the-art hydraulic system ensures

 smooth, uninterrupted drilling, reducing operational time and costs. Its user-friendly interface allows for easy operation and maintenance,

 making it a top choice for professionals seeking reliability and innovation in their drilling projects. Discover the HW-230YY and take your

drilling operations to the next level.



Unlock Superior Drilling Performance with Our Hydraulic Drilling Rigs!


Discover our range of hydraulic drilling rigs, designed to deliver unmatched power, precision, and durability.

Fill out the form below to receive a personalized quote and expert advice tailored to your project needs.


Why Choose Our Hydraulic Drilling Rigs?


Transparent Pricing: Receive a clear and detailed quote.

High Quality: Robust and reliable rigs for any drilling challenge.

Fast Shipping: Quick and efficient delivery of your drilling rig.

Outstanding After-Sales Service: Continuous support and effective solutions to ensure your success.

Don’t wait! Complete the form and elevate your drilling projects with our state-of-the-art technology.


Request a quote

Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.

Fill in the form to get the latest product parameters and the best price.
