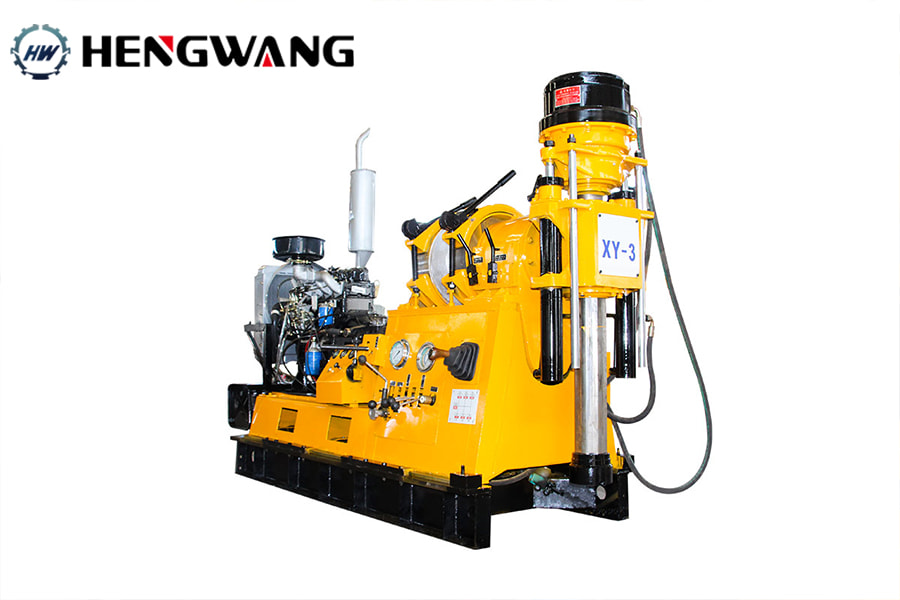

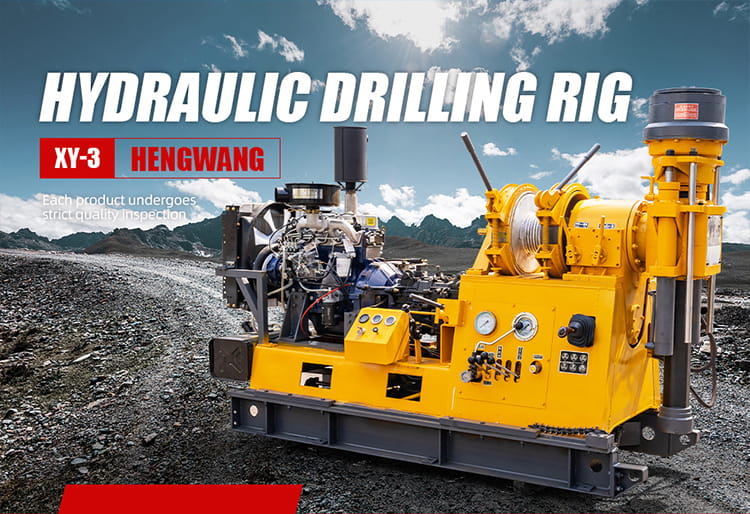

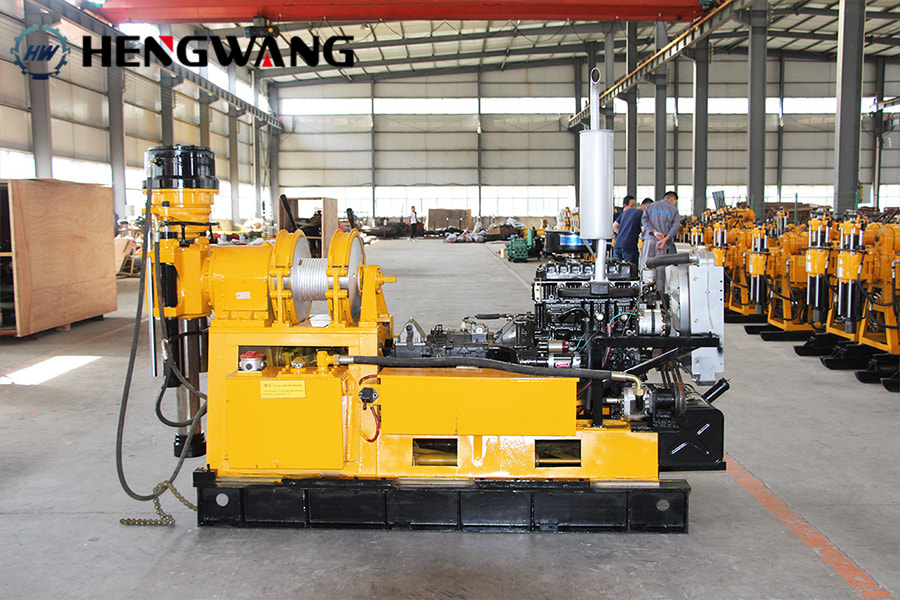

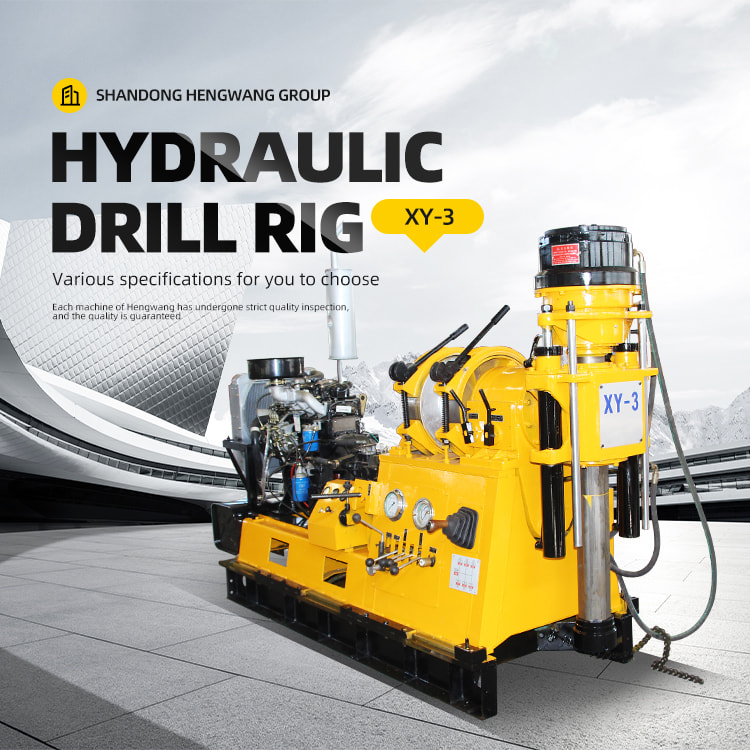

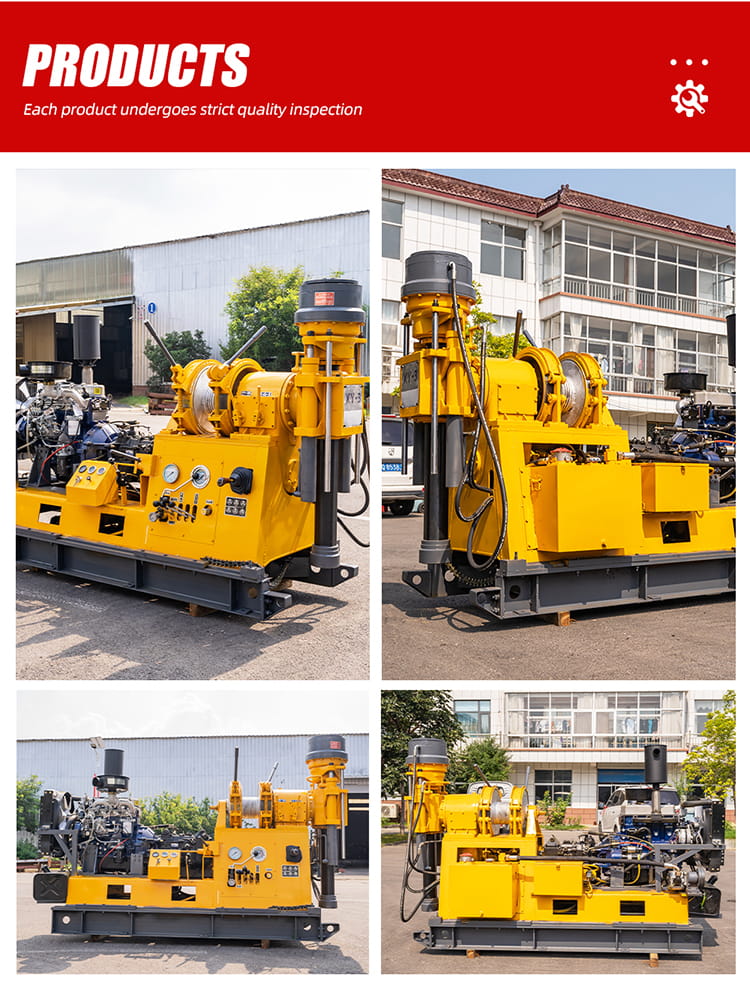

XY-3 Hydraulic Drilling Rig

  • Factory direct
  • One-year warranty
Drilling depth: 600m
Drilling diameter: 75-325mm
Rated Power: 42Kw

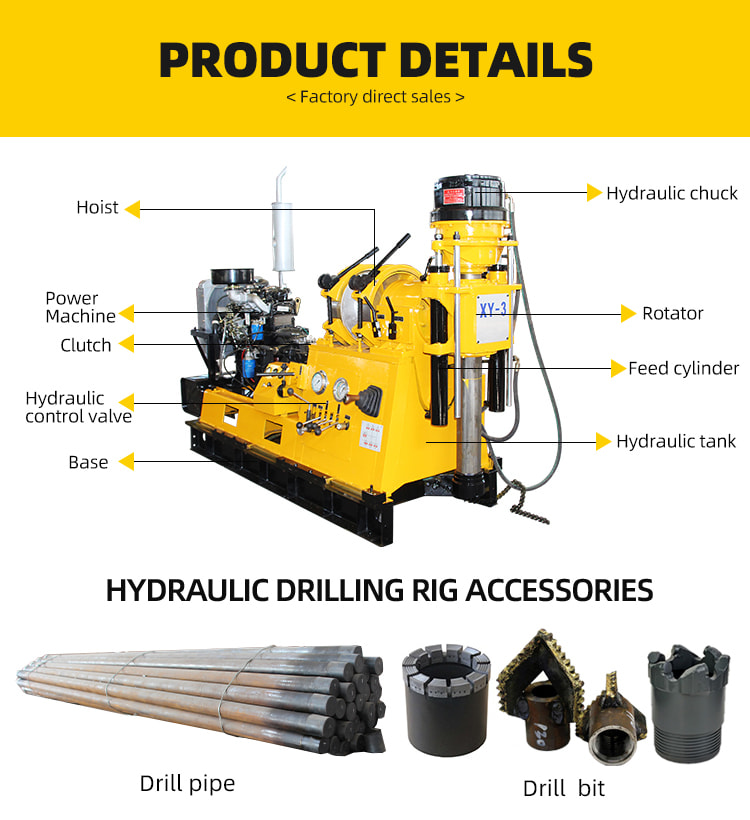

Product Detail

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon




modelXY-3
Drilling depth600m
Opening diameter325mm
final hole diameter75mm
Drill pipe diameter42-50mm
Drilling angle90-75°

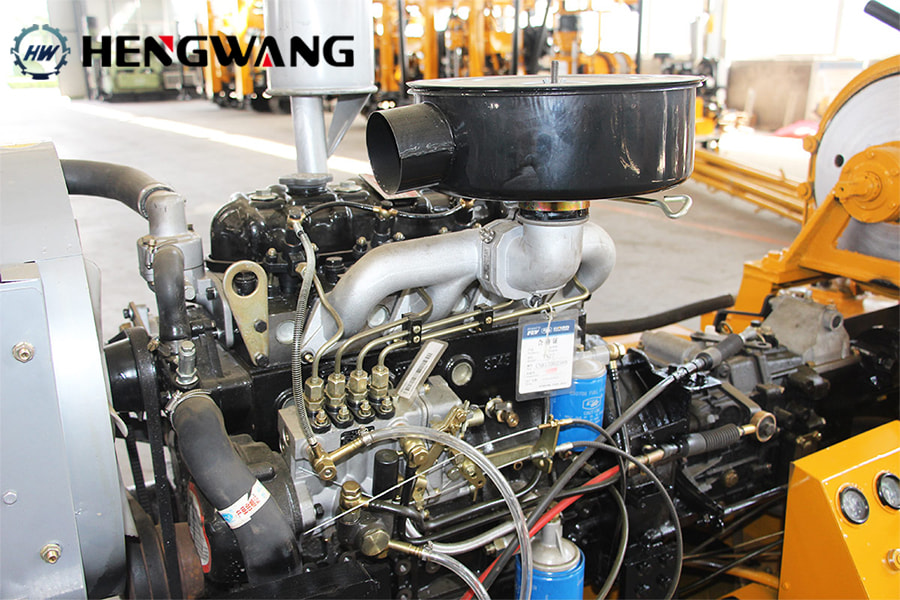

Engine power42kw
weight2350kg
Machine size2600*900*1750mm
Vertical shaft speed32-1057r/min
Vertical axis travel600mm

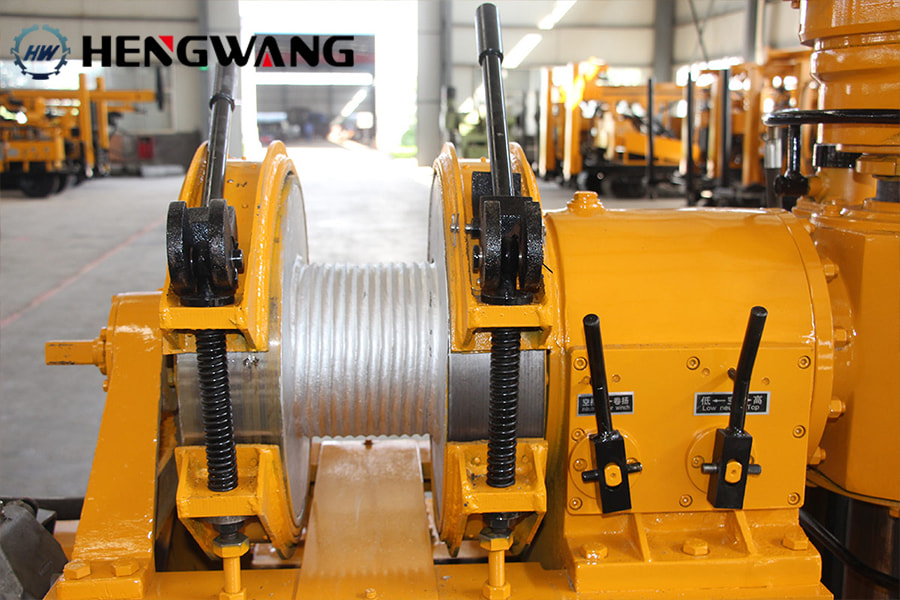

Single rope lifting force3000kg
Single rope lifting speed0.3-1.9m/s
Wire rope diameterφ12.5mm
Wire rope capacity65m
Rated load18Ton
effective height11m
flow95L/Min
greatest pressure1.2Mpa
Optional configuration
Walking Gantry



The XY-3 Hydraulic Drilling Rig redefines efficiency and power in drilling operations. Designed for versatility, it tackles challenging terrains

with ease, making it ideal for geological exploration and water well drilling. Its advanced hydraulic system ensures precise control and smooth

operation, reducing downtime and maximizing productivity. The compact design allows for easy transportation and setup, even in remote

locations. With enhanced durability and low maintenance requirements, the XY-3 is a reliable partner for your most demanding drilling

projects. Upgrade your operations with a rig that delivers exceptional performance and value.



Unlock Superior Drilling Performance with Our Hydraulic Drilling Rigs!


Discover our range of hydraulic drilling rigs, designed to deliver unmatched power, precision, and durability.

Fill out the form below to receive a personalized quote and expert advice tailored to your project needs.


Why Choose Our Hydraulic Drilling Rigs?


Transparent Pricing: Receive a clear and detailed quote.

High Quality: Robust and reliable rigs for any drilling challenge.

Fast Shipping: Quick and efficient delivery of your drilling rig.

Outstanding After-Sales Service: Continuous support and effective solutions to ensure your success.

Don’t wait! Complete the form and elevate your drilling projects with our state-of-the-art technology.


Request a quote

Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
